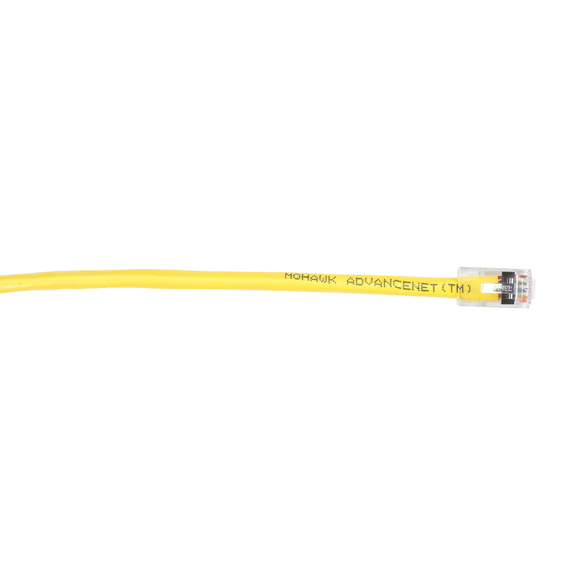

CAT6 Solid-Conductor Backbone Cable (UTP), PVC, Yellow, Custom Lengths

550-MHz backbone cable for fast CAT6 runs.


LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Solid, dependable CAT6 backbone cable for new and existing networks.
  • Meets or exceeds CAT6 specifications.
  • Use in 1000BASE-T, 100BASE-T, and other high-speed, high-bandwidth applications.
  • Guaranteed for life!

  • Further Details

    NOTE: For custom colors, contact our FREE Tech Support.

    ACR 9.7 dB/100 m at 250 MHz
    Cable Outside Diameter (Nominal) 0.225" (0.57 cm) without plugs
    Conductor 24 AWG, solid, bare copper
    Delay Skew (Maximum) 25 ns/100 m (328 ft.)
    ELFEXT 22.0 dB/100 m (328 ft.) @ 250 MHz
    Impedance 1000 ± 15%
    Jacket RoHS compliant, flame-retardant thermoplastic
    Mutual Capacitance (Nominal) 46 pF/m
    NEXT 52.0 dB/100 m at 250 MHz
    PS-ACR 7.7 dB/100 m at 250 MHz
    PS-ELFEXT 20.0 dB/100 m at 250 MHz
    PS-NEXT 40.3 dB/100 m at 250 MHz
    Return Loss 29.0 dB/100 m at 250 MHz
    Velocity of Propagation 68%
    NOTE: For custom colors, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Accessory: WP456

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)

    Double Diamond™ Warranty (Standard)


    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.

    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The CAT6 Solid-Conductor Backbone Cable (UTP), PVC, Yellow, Custom Lengths comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.

    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
