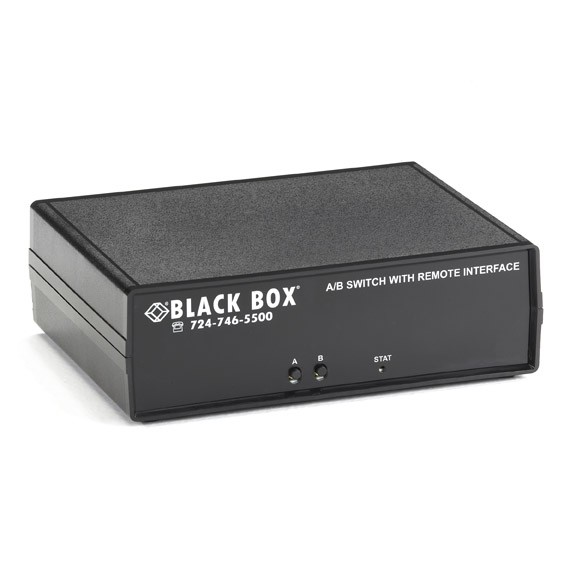

SW1040A

Photo may show similar product

Other views

CAT6 Remotely Controlled Layer 1 A/B Switch, Latching

Switch between two networks with this Layer 1 switch.

SW1040A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Connect two ports to a common port for reliable switching.
  • Connection is maintained even if power fails.


  • Further Details

  • Durable and reliable. Tested to 1,000,000 cycles
  • Manual control of the switch port supported through A/B push button on the front.
  • Can be switched remotely via dry contact as well.


  • Data Rate 10/100/1000 and 10G Ethernet
    Switching Speed Typical: 5 msec;
    Maximum: 10 msec
    Approvals Yes
    Connectors A/B switch ports: (3) RJ-45;
    Remote control/status port: (1) 6-position terminal block;
    Power: (1) 3.5-mm power input
    Power Input: 100-240 VAC, 50-60 Hz, autosensing;
    Output: 5 VDC
    Dimensions 2.5"H x 6.25"W x 8.1"D (6.4 x 15.9 x 0.6 cm)
    Weight 4 lb. (1.8 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • CAT6 Remotely Controlled Layer 1 A/B Switches Manual
      User Manuals for the SW1040A and SW1041A (Version 1)

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The CAT6 Remotely Controlled Layer 1 A/B Switch, Latching comes with a standard 1 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    CAT6 Remotely Controlled Layer 1 A/B Switch, Latching, Ethernet, RS-232 SW1041A $656.45

    Remotely Controlled Layer 1 A/B Switch, Fiber Multimode, SC, Ethernet, RS-232 SW1042A-MM $1,328.10

    Remotely Controlled Layer 1 A/B Switch, Fiber Multimode, SC SW1043A-MM $1,154.40

    Remotely Controlled Layer 1 A/B Switch, Fiber Single-Mode, SC SW1044A-SM $1,610.90

    Remotely Controlled Layer 1 A/B Switch, Fiber Single-Mode, SC, Ethernet, RS-232 SW1045A-SM $1,789.70

    Remotely Controlled Layer 1 A/B Switch, DB9, Ethernet, RS-232 SW1046A $595.85

    Remotely Controlled Layer 1 A/B Switch - DB9 SW1047A $416.10
