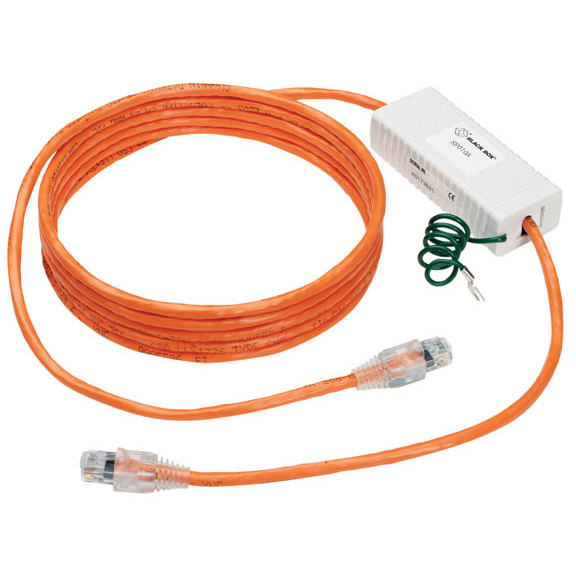

CAT6 Protected Patch Cord, 10-ft. (3-m)

This CAT6-compliant cord protects against damaging surges.


Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Data-line protection attached to a 10-ft. (3-m) cord.
  • Guaranteed for life!

  • Further Details

  • Guards against data line surges and transients.
  • Transparent to high-speed CAT6 or CAT5e networks.
  • Compact, in-line installation.
  • Helps to increase uptime and extend the life of networked equipment.
  • Features high-speed avalanche diode technology with low-capacitance circuitry.

  • This innovative patch cord not only connects high-speed networking devices, it also keeps surges and other interference from reaching the connected equipment.

    You've connected expensive hardware to your network, so it only makes sense to protect your investment. The BLACK BOX® CAT6 Protected Patch Cord combines stranded twisted-pair wiring with data-line protection to keep your sensitive networks running.

    Measuring 10 feet (3 m) long and terminated with RJ-45 connectors, the cord helps ensure the reliable operation of local networks that rely on high-speed data transmission over copper.

    Installed between the incoming communication lines and the input/output port of the equipment you want to protect, the cord provides Ethernet 10BASE-T, 100BASE-TX, CDDI, 100VG, and other LAN interface technologies with both surge and transient voltage protection.

    In addition to lightning-induced surges, the CAT6 Protected Patch Cord guards against AC power interference, electrostatic discharge, and ground loop energies. It protects eight pins in common and differential mode.

    The patch cable, the cable features enhanced modular plugs for superior performance. A special latch on the plugs prevents snags when pulling the cable. The cord works with both T568A and TS568B wiring schemes for CAT6 and CAT5e requirements.

    Cord Length 10 ft. (3 m)
    Peak Pulse Current 10 x 1000 US S.C. waveform 132 amps
    Response Time < 5 nanoseconds
    Shunt Capacitance 5 pF (device only) maximum
    Standard Clamping Voltage 7.5 volts

    NOTE: For effective protection, CAT6 Protected Patch Cords must be installed at both ends of the data cable.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.


    • CAT6 Protected Patch Cord User Manual
      User Manual for the SP010A-R2 (Version 1)

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)

    Double Diamond™ Warranty (Standard)


    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.

    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The CAT6 Protected Patch Cord, 10-ft. (3-m) comes with a standard 10 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.

    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)

    Add to Cart

    Price: $118.15

    Quantity Available: 10




    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.563 lbs.
    HxWxD: 2.25 x 4.25 x 8.75 in.
