Jacks, Panels, & Hardware > Copper Patch Panels


click photo to enlarge

JSM114A

Photo may show similar product

Other views

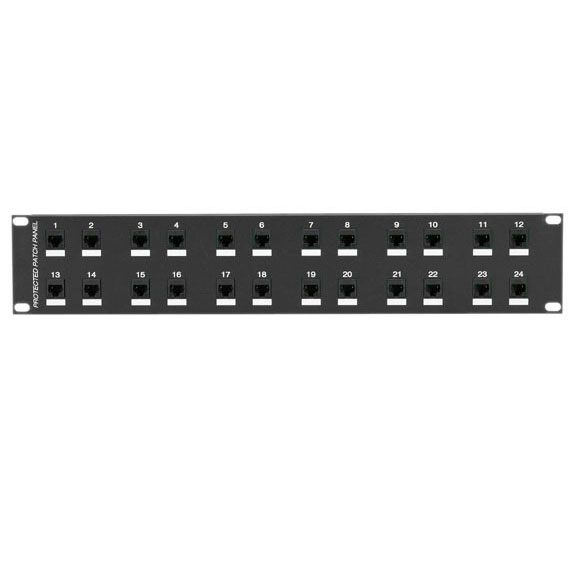

CAT6 Protected Panel, 24-Port, 2U

Surge protection guards 100BASE-TX/1000BASE-T lines and equipment against lightning strikes.

JSM114A

Extended Double Diamond™ Warranty Available
(10 Year)

Product Highlights

  • Protect sensitive equipment and data lines from damaging lightning strikes, power surges, and electrostatic discharge.


  • Description

    CAT6 Protected Panel, 24-Port, 2U


    Quick Facts

  • Protect sensitive equipment and data lines from damaging lightning strikes, power surges, and electrostatic discharge.

  • Further Details

  • Built-in, all-wire protection on each port makes this panel a time and money saver!
  • Instead of buying multiple protectors, all you need is one of these panels.
  • CAT6 compliant for use in high-speed data, voice, and multimedia applications.
  • Ideal for hubs, routers, switches, and other high-speed equipment.
  • Feature 110 IDC to RJ-45 straight-wired ports.
  • Each port is individually protected.
  • Panels feature a self-resetting, 2000-watt, bidirectional circuit.
  • Super-fast response time of less than five nanoseconds.
  • Overvoltages are safely shunted to a ground via an 11" (17.9-cm) braided wire and chassis frame.
  • Failsafe design destroys the port rather than the equipment if an extreme surge exceeds the panels' surge capacity.
  • If a port fails, just pop in a new connector.
  • Fit all 19" racks.


  • NOTE: Does not support PoE or PoE+ operation.

    This product works with:
  • GigaTrue CAT6 Component 550-MHz Patch Cable with Molded Boots (EVNSL671–EVNSL680)
  • GigaTrue CAT6 Channel 550-MHz Patch Cable with Snagless Boots (EVNSL640–EVNSL650)
  • GigaTrue CAT6 Channel 550-MHz Patch Cable with Basic Connectors (EVNSL620–EVNSL631)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for CAT6 Protected Panel, 24-Port, 2U:

    Clamping Voltage 7.5 V
    Peak Pulse Current 100 amps
    Response Time < 5 ns
    Shunt Capacitance (Maximum) <8 pF
    Connectors 110 block to RJ-45
    Dimensions 3.5"H x 19"W x 1.4"D (8.9 x 48.3 x 3.6 cm)
    Weight 2.4 lb. (1.1 kg)

    This product works with:
  • GigaTrue CAT6 Component 550-MHz Patch Cable with Molded Boots (EVNSL671–EVNSL680)
  • GigaTrue CAT6 Channel 550-MHz Patch Cable with Snagless Boots (EVNSL640–EVNSL650)
  • GigaTrue CAT6 Channel 550-MHz Patch Cable with Basic Connectors (EVNSL620–EVNSL631)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for CAT6 Protected Panel, 24-Port, 2U:

    Manuals

    • CAT6 Protected Panel Manual
      Manual for the JSM112A, JSM114A, and JSM116A (Version 1)

    Visio Stencils

    • Visio Stencil
      Stencil Drawings


    Connect your CAT6 Protected Panel, 24-Port, 2U with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    CAT6 Protected Panel, 12-Port, 1U JSM112A $437.95

    CAT6 Protected Panel, 48-Port, 4U JSM116A $1,238.95



    Add to Cart

    Price: $769.95

    Quantity Available: 5

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 2.437 lbs.
    HxWxD: 4.5 x 4.25 x 20.25 in.
