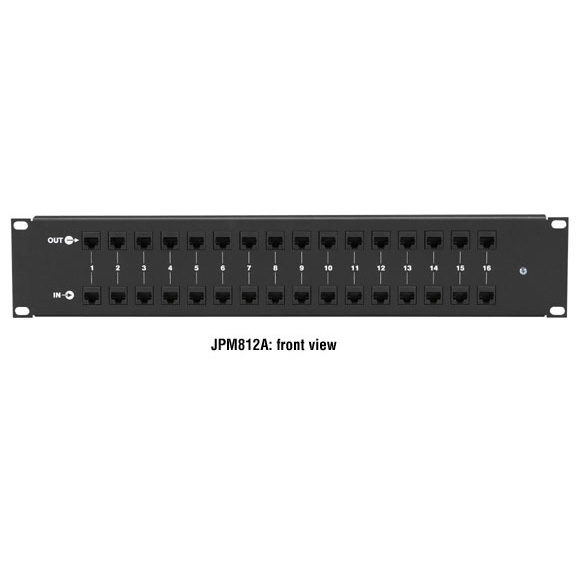

CAT6 Protected Feed-Through Panel, 16-Port

Get reliable surge protection plus the convenience of feed-through connectors.

JPM812A

Extended Double Diamond™ Warranty Available
(10 Year)

Product Highlights

  • Guaranteed for life!


  • Description

    CAT6 Feed-Through Protector Panel, 16-Port


    Quick Facts

  • Guaranteed for life!

  • Further Details

  • Stops surges to protect hubs, switches, concentrators, and data lines.
  • Super-fast response time of less than five nanoseconds.
  • Easy feed-through design. Patch cables without punching down wires. Just plug them in!
  • CAT6 compliant. Ideal for high-speed data, voice, and multimedia applications, including 100/1000BASE-T networks.
  • Fits all 19" cabinets and relay racks.


  • NOTE: Does not support PoE or PoE+ operation.


    Technical Specifications for CAT6 Protected Feed-Through Panel, 16-Port:

    Clamping Voltage 7.5 V
    Peak Pulse Current 132 amps
    Response Time < 5 ns
    Shunt Capacitance (Maximum) <40 pF
    Connectors (32) RJ-45: (16) in, (16) out
    Size 3.5"H (2U) x 19"W x 0.75"D (8.9 x 48.3 x 1.9 cm)
    Weight 1.7 lb. (0.8 kg)
    This product works with:
  • GigaTrue CAT6 Component 550-MHz Patch Cable with Molded Boots (EVNSL671–EVNSL680)
  • GigaTrue CAT6 Channel 550-MHz Patch Cable with Snagless Boots (EVNSL640–EVNSL650)
  • GigaTrue CAT6 Channel 550-MHz Patch Cable with Basic Connectors (EVNSL620–EVNSL631)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
