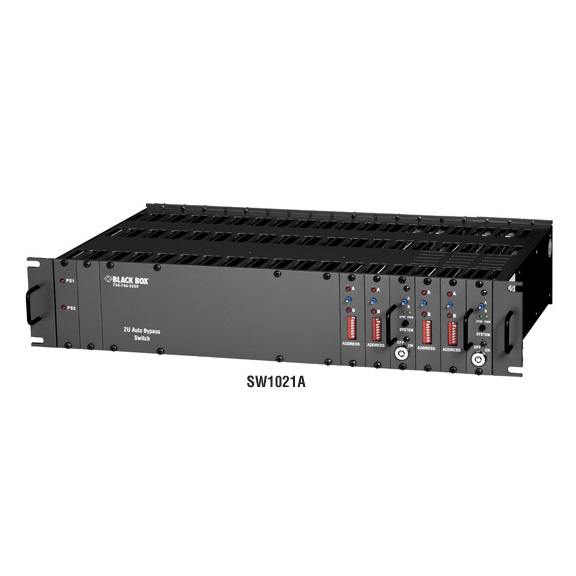

CAT6 Auto Bypass Switch, 2U, RJ-45, with (1) Path Installed

The failover switch you need for redundancy in mission-critical CAT6 applications!

SW1021A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Provide failover switching for CAT6 10-, 100-, or 1000-Mbps (including 10-GbE Ethernet) environments.


  • Description

    CAT6 Auto Bypass Switch, 2U, RJ-45, with (1) Path Installed


    Quick Facts

  • Provide failover switching for CAT6 10-, 100-, or 1000-Mbps (including 10-GbE Ethernet) environments.

  • Further Details

  • Chassis is an 18-slot switching platform rack that comes with one A/B switch card group installed as one switching circuit.
  • Can be upgraded to hold up to five A/B switching circuits.
  • CAT6 upgrade kits (sold separately) include one A/B switch card group and one controller card.
  • Each circuit's independent controller card provides automatic control of its respective A/B switch card group.
  • User-configurable controls for independent auto-bypass and auto-recovery switching functions.
  • Can be set up to automatically remove network monitoring devices from the network for maintenance while simultaneously providing basic network connectivity via the bypass path.
  • Or switch remotely using an Ethernet or RS-232 serial link to the controller card (a DB9 to RJ-11 adapter and an RJ-11 to RJ-11 crossover cable are included).
  • Issue ICMP echo request (PING) packets from an internal Ethernet node, through the normal network path, to any user- specified external Ethernet node.
  • Also support manual toggle switching.
  • Highly reliable with non-latching telecommunications relays or non-latching optical switching mechanisms.

  • Don't risk costly downtime. If a problem occurs on your "normal" network path, this card-based system switches traffic automatically to a bypass or failover path to minimize service disruption.

    What's Included:
  • (1) chassis with (1) A/B card group
  • (1) controller card, and (1) power card installed
  • (1) external power supply
  • (1) DB9 to RJ-11 adapter
  • (1) RJ-11 to RJ-11 crossover cable


  • Technical Specifications for CAT6 Auto Bypass Switch, 2U, RJ-45, with (1) Path Installed:

    Controls (1) momentary toggle switch and (1) 8-position DIP switch on both the switch and controller card; (1) key-lock switch on controller card
    CE Approval Yes
    Connectors Controller card: (1) RJ-45, (2) RJ-11;
    Each A/B switch card: (3) RJ-45 (CAT6)
    Power card: (2) two-position Molex® M
    Indicators Power card: (2) LEDs: (1) PS1 Active, (1) PS2 Active (if more than one power supply is connected)
    Controller card: (2) LEDs: (1) Power, (1) Status;
    A/B switch cards: (2) LEDs: (1) A, (1) B;
    Power From (1) or (2) external power supplies:
    Input: 100-240 VAC, 50-60 Hz;
    Output: 12 VDC, 5 A
    Size 3.5"H (2U) x 19"W x 12.5"D (8.9 x 48.3 x 31.8 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
