Cables > Copper Patch Cables


click photo to enlarge

EVNSL0273OR-0020

Photo may show similar product

Other views

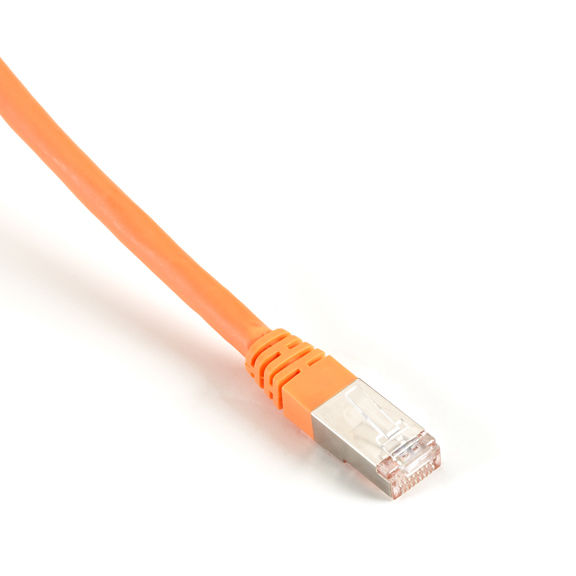

CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Orange, 20-ft. (6.0-m)

400-MHz backbone cable for noisy CAT6 runs.

EVNSL0273OR-0020

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • 400-MHz backbone cable for noisy CAT6 runs.
  • Solid, dependable CAT6 backbone cable for new and existing networks.
  • Meets or exceeds CAT6 specifications.
  • Ideal for use in data, audio, and video applications and for horizontal network connections.
  • Cable construction: 24 AWG solid conductor, FEP internal separator, straight-pinned, 4-pair, T568B, molded slim line boots.
  • Shielding: Mylar® tape, tinned copper drain wire; aluminum/Mylar tape.
  • FEP Insulation: 0.04" (1.02 ± 0.02 mm)
  • Jacket: flame-retardant PVC (low smoke).
  • Also available in other colors.
  • Guaranteed for life!


  • Further Details



    ACR 5.5 dB/100 m at 250 MHz
    ACRF 19.8 dB/100 m at 250 MHz
    Attenuation 32.8 dB/100 m at 250 MHz
    Cable Outside Diameter (Nominal) 0.27" (0.7 cm)
    Capacitance Unbalance (Pair to Ground) 330 pF/100 m maximum
    Conductor 24 AWG, solid, bare copper
    Delay Skew (Maximum) 40 ns/100 m (328 ft.)
    Impedance 100 ± 15 ohms at 250 MHz
    Propagation Delay 534 ns/100 m @ 250 MHz
    NEXT 38.3 dB/100 m at 250 MHz
    PS-ACR 3.5 dB/100 m at 250 MHz
    PS-ACRF 16.8 dB/100 m at 250 MHz
    PS-NEXT 36.3 dB/100 m at 250 MHz
    Return Loss 17.3 dB/100 m at 250 MHz
    Temperature/Voltage Rating 167° F (75° C) at 300 V
    Jacket Flame-retardant PVC (low smoke) (CMP); RoHS compliant
    Standards UL® 444; ISO/IEC 11801; TIA/EIA-568-B.2-1 CAT6; 2002/95/EC (RoHS)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Accessory: EVNSL0601MS-0001

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), PVC, Blue, 1-ft. (0.3-m)

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), PVC, Blue, 1-ft. (0.3-m)

    Accessory: EYN901MS-0002

    CAT6 Solid-Conductor Backbone Cable, PVC, Blue, 2-ft. (0.6-m)

    CAT6 Solid-Conductor Backbone Cable, PVC, Blue, 2-ft. (0.6-m)

    Accessory: EYN911MS-0002

    CAT6 Solid-Conductor Backbone Cable, Plenum, Blue, 2-ft. (0.6-m)

    CAT6 Solid-Conductor Backbone Cable, Plenum, Blue, 2-ft. (0.6-m)

    Accessory: EVNSL670-0003

    GigaTrue CAT6 Component 550-MHz Patch Cable, Molded Boots, Straight-Pinned, Gray, 3-ft. (0.9-m)

    GigaTrue® CAT6 Component 550-MHz Patch Cable, Molded Boots, Straight-Pinned, Gray, 3-ft. (0.9-m)

    Accessory: EVNSL640-0001

    GigaTrue CAT6 Channel 550-MHz Patch Cable (UTP), Snagless Boots, Gray, 1-ft. (0.3-m)

    GigaTrue CAT6 Channel 550-MHz Patch Cable (UTP), Snagless Boots, Gray, 1-ft. (0.3-m)

    Accessory: EVNSL620-0001

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Gray, 1-ft. (0.3-m)

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Gray, 1-ft. (0.3-m)

    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Orange, 20-ft. (6.0-m) comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Orange, 1-ft. (0.3-m) EVNSL0273OR-0001 $10.05

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Orange, 2-ft. (0.6-m) EVNSL0273OR-0002 $11.10

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Orange, 3-ft. (0.9-m) EVNSL0273OR-0003 $12.10

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Orange, 5-ft. (1.5-m) EVNSL0273OR-0005 $16.15

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Orange, 6-ft. (1.8-m) EVNSL0273OR-0006 $17.15

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Orange, 7-ft. (2.1-m) EVNSL0273OR-0007 $18.15

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Orange, 10-ft. (3.0-m) EVNSL0273OR-0010 $22.20

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Orange, 15-ft. (4.5-m) EVNSL0273OR-0015 $29.25

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Orange, 30-ft. (9.1-m) EVNSL0273OR-0030 $48.45
