Cables > CAT6

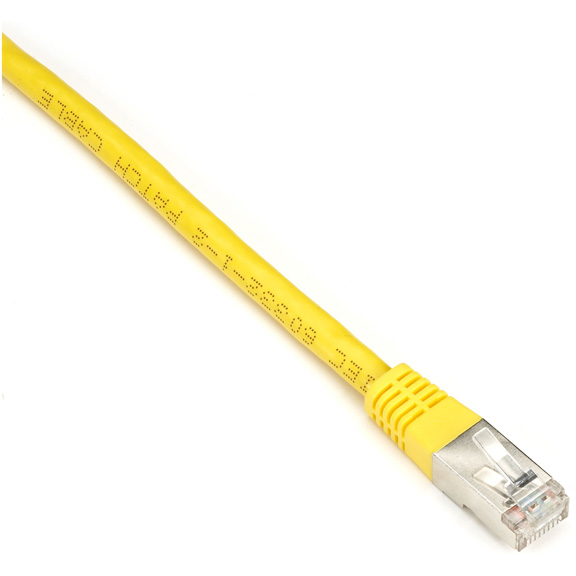

click photo to enlarge

EVNSL0272YL-0001

Photo may show similar product

Other views

CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Yellow, 1-ft. (0.3-m)

Double-shielded CAT6 cable for noisy data center and desktop connections.

EVNSL0272YL-0001


Lifetime Warranty

Product Highlights

  • CAT6 cable features four individually shielded twisted pairs with foam insulation and foil tape and an overall tinned copper braid for superior high-speed transmissions, particularly in noisy environments.
  • 250-MHz backbone cable for data center and desktop CAT6 runs.
  • Ideal for use in audio and high-speed broadband video transmissions, and data applications up to 1000BASE-T.
  • Guaranteed for life!

  • Description

    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Yellow, 1-ft. (0.3-m)


    Quick Facts

  • CAT6 cable features four individually shielded twisted pairs with foam insulation and foil tape and an overall tinned copper braid for superior high-speed transmissions, particularly in noisy environments.
  • 250-MHz backbone cable for data center and desktop CAT6 runs.
  • Ideal for use in audio and high-speed broadband video transmissions, and data applications up to 1000BASE-T.
  • Guaranteed for life!

  • Further Details

  • Meets or exceeds TIA/EIA CAT6 and ISO/IEC 2nd Edition 11801 Class E specifications.
  • Flame retardancy is verified according to IEC 60332-1-2.
  • Cable construction: 26 AWG stranded bare copper, foam-skin PE, aluminum Mylar® foil around each pair, overall tinned copper braiding, PVC jacket, and shielded molded plugs.
  • Jacket: flame-retardant PVC verified according to IEC 60332-1-2.
  • Also available in other colors and lengths.


  • Technical Specifications for CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Yellow, 1-ft. (0.3-m):

    Attenuation — 49.5 dB/100 m at 250 MHz
    Capacitance Unbalance (Pair to Ground) — 330 pF/100 m
    Conductor —26 AWG, solid, bare copper
    Diameter — 0.24" (6.1 mm)
    Impedance — 100 ± 15 ohms at 250 MHz
    Jacket — Flame-retardant PVC (CM)
    Mutual Capacitance — 5600 pF/100 m
    NEXT — 38.3 dB/100 m at 250 MHz
    PS-NEXT — 36.3 dB/100 m at 250 MHz
    RoHS — Yes
    Standards — UL® E164469-XX; TIA/EIA-568-B.2-1 CAT6; ISO/IEC 2nd Edition 11801 Class E; IEC 6-332-1-2; CENELEC EN 50173-1; CENELEC EN 50288-5-2; 2002/95/EC (RoHS)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Yellow, 1-ft. (0.3-m):


    Connect your CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Yellow, 1-ft. (0.3-m) with:

    Accessory: EVNSL640-0001

    GigaTrue CAT6 Channel 550-MHz Patch Cable (UTP), Snagless Boots, Gray, 1-ft. (0.3-m)

    GigaTrue CAT6 Channel 550-MHz Patch Cable (UTP), Snagless Boots, Gray, 1-ft. (0.3-m)

    Accessory: EVNSL0273BL-0001

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Blue, 1-ft. (0.3-m)

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Blue, 1-ft. (0.3-m)

    Accessory: EVNSL620-0001

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Gray, 1-ft. (0.3-m)

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Gray, 1-ft. (0.3-m)

    Accessory: EYN901MS-0002

    CAT6 Solid-Conductor Backbone Cable, PVC, Blue, 2-ft. (0.6-m)

    CAT6 Solid-Conductor Backbone Cable, PVC, Blue, 2-ft. (0.6-m)

    Accessory: EVNSL0601MS-0001

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), PVC, Blue, 1-ft. (0.3-m)

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), PVC, Blue, 1-ft. (0.3-m)

    Accessory: EYN911MS-0002

    CAT6 Solid-Conductor Backbone Cable, Plenum, Blue, 2-ft. (0.6-m)

    CAT6 Solid-Conductor Backbone Cable, Plenum, Blue, 2-ft. (0.6-m)
