EVNSL0272BK-0025

Photo may show similar product

Other views

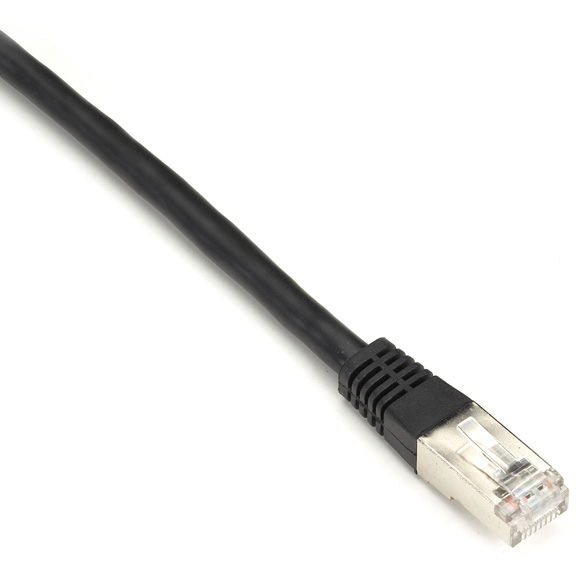

CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 25-ft. (7.6-m)

Double-shielded CAT6 cable for noisy data center and desktop connections.

EVNSL0272BK-0025

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • CAT6 cable features four individually shielded twisted pairs with foam insulation and foil tape and an overall tinned copper braid for superior high-speed transmissions, particularly in noisy environments.
  • 250-MHz backbone cable for data center and desktop CAT6 runs.
  • Ideal for use in audio and high-speed broadband video transmissions, and data applications up to 1000BASE-T.
  • Guaranteed for life!


  • Description

    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 25-ft. (7.6-m)


    Quick Facts

  • CAT6 cable features four individually shielded twisted pairs with foam insulation and foil tape and an overall tinned copper braid for superior high-speed transmissions, particularly in noisy environments.
  • 250-MHz backbone cable for data center and desktop CAT6 runs.
  • Ideal for use in audio and high-speed broadband video transmissions, and data applications up to 1000BASE-T.
  • Guaranteed for life!

  • Further Details

  • Meets or exceeds TIA/EIA CAT6 and ISO/IEC 2nd Edition 11801 Class E specifications.
  • Flame retardancy is verified according to IEC 60332-1-2.
  • Cable construction: 26 AWG stranded bare copper, foam-skin PE, aluminum Mylar® foil around each pair, overall tinned copper braiding, PVC jacket, and shielded molded plugs.
  • Jacket: flame-retardant PVC verified according to IEC 60332-1-2.
  • Also available in other colors and lengths.


  • Technical Specifications for CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 25-ft. (7.6-m):

    Attenuation 49.5 dB/100 m at 250 MHz
    Capacitance Unbalance (Pair to Ground) 330 pF/100 m
    Conductor 26 AWG, stranded, bare copper
    Diameter 0.24" (6.1 mm)
    Impedance 100 ± 15 ohms at 250 MHz
    Jacket Flame-retardant PVC (CM)
    Mutual Capacitance 5600 pF/100 m
    NEXT 38.3 dB/100 m at 250 MHz
    PS-NEXT 36.3 dB/100 m at 250 MHz
    RoHS Yes
    Standards UL® E164469-XX; TIA/EIA-568-B.2-1 CAT6; ISO/IEC 2nd Edition 11801 Class E; IEC 6-332-1-2; CENELEC EN 50173-1; CENELEC EN 50288-5-2; 2002/95/EC (RoHS)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 25-ft. (7.6-m):


    Connect your CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 25-ft. (7.6-m) with:

    Accessory: EVNSL0601MS-0001

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), PVC, Blue, 1-ft. (0.3-m)

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), PVC, Blue, 1-ft. (0.3-m)

    Accessory: EYN901MS-0002

    CAT6 Solid-Conductor Backbone Cable, PVC, Blue, 2-ft. (0.6-m)

    CAT6 Solid-Conductor Backbone Cable, PVC, Blue, 2-ft. (0.6-m)

    Accessory: EYN911MS-0002

    CAT6 Solid-Conductor Backbone Cable, Plenum, Blue, 2-ft. (0.6-m)

    CAT6 Solid-Conductor Backbone Cable, Plenum, Blue, 2-ft. (0.6-m)

    Accessory: EVNSL640-0001

    GigaTrue CAT6 Channel 550-MHz Patch Cable (UTP), Snagless Boots, Gray, 1-ft. (0.3-m)

    GigaTrue CAT6 Channel 550-MHz Patch Cable (UTP), Snagless Boots, Gray, 1-ft. (0.3-m)

    Accessory: EVNSL620-0001

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Gray, 1-ft. (0.3-m)

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Gray, 1-ft. (0.3-m)

    Accessory: EVNSL0273BL-0001

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Blue, 1-ft. (0.3-m)

    CAT6 400-MHz, Shielded, Solid Backbone Cable (FTP), Plenum, Blue, 1-ft. (0.3-m)

    Double Diamond Warranty

    Extended LIFETIME Warranty Available


    Protect your purchase with an additional LIFETIME Double Diamond™ warranty!
    Cost: $0.00

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 25-ft. (7.6-m) comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 1-ft. (0.3-m) EVNSL0272BK-0001 $8.95

    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 2-ft. (0.6-m) EVNSL0272BK-0002 $9.95

    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 3-ft. (0.9-m) EVNSL0272BK-0003 $10.95

    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 5-ft. (1.5-m) EVNSL0272BK-0005 $13.95

    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 6-ft. (1.8-m) EVNSL0272BK-0006 $15.95

    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 7-ft. (2.1-m) EVNSL0272BK-0007 $16.95

    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 10-ft. (3.0-m) EVNSL0272BK-0010 $19.95

    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 15-ft. (4.5-m) EVNSL0272BK-0015 $26.95

    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 20-ft. (6.0-m) EVNSL0272BK-0020 $32.95

    CAT6 250-MHz Shielded, Stranded Cable SSTP (PIMF), PVC, Black, 30-ft. (9.1-m) EVNSL0272BK-0030 $45.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $38.95

    Quantity Available: 260

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.625 lbs.
    HxWxD: 1 x 7.5 x 7.5 in.
