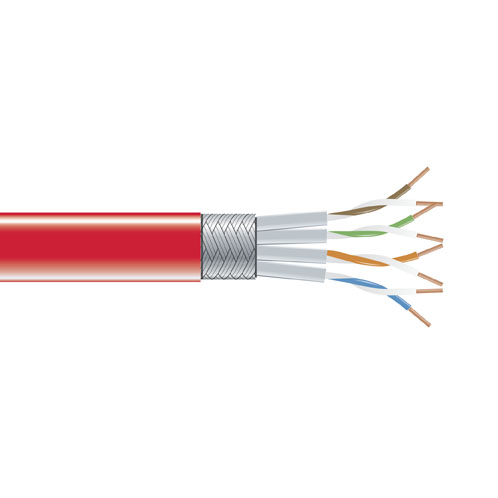

CAT6 250-MHz Shielded, Stranded Bulk Cable (SSTP, PIMF), Red, 1000-ft. (304.8-m)

Double-shielded CAT6 cable for noisy data center and workgroup connections.

EVNSL0272RD-1000

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Features four individually shielded twisted pairs with foam insulation, aluminum/Mylar® foil tape, and an overall tinned copper braid.
  • Ideal for use in audio and high-speed broadband video transmissions, and data applications up to 1000BASE-T.
  • Make your own patch cables.
  • Guaranteed for life!


  • Description

    CAT6 250-MHz Shielded, Stranded Bulk Cable (SSTP, PIMF), Red, 1000-ft. (304.8-m)


    Quick Facts

  • Features four individually shielded twisted pairs with foam insulation, aluminum/Mylar® foil tape, and an overall tinned copper braid.
  • Ideal for use in audio and high-speed broadband video transmissions, and data applications up to 1000BASE-T.
  • Make your own patch cables.
  • Guaranteed for life!

  • Further Details



    Technical Specifications for CAT6 250-MHz Shielded, Stranded Bulk Cable (SSTP, PIMF), Red, 1000-ft. (304.8-m):

    Attenuation (Maximum) 49.5 dB/100 m (328 ft.) at 250 MHz
    Capacitance Unbalanced (Maximum) 330 pF/100
    Characteristic Resistance 1-250 MHz, 100 ± 15 ohms
    Conductor Gauge 26 AWG, stranded, bare copper
    Conductor Resistance 14.07 ohms/100m
    Construction Aluminum/Mylar tape around each pair, foam insulation, tinned-copper braid, PVC (CM) jacket
    Frequency Up to 250 MHz
    Impedance 100 ± 15 ohms
    Insulation Material Foam skin PE
    Mutual Capacitance (Maximum) 5600 pF/100m
    NEXT (Minimum) 38.3 dB/100 m (328 ft.) at 250 MHz
    Outside Diameter 0.224" (5.7 mm)
    PS-NEXT 36.3 dB/100 m (328 ft.) at 250 MHz
    Resistance Unbalanced (Maximum) 5%
    Shielding 100% foil tape around each pair with 40% mesh braid
    Standards ANSI/TIA 568-B.2-1, ISO/IEC 11801 ed. 2, EN 50288-5, IEC 60332-1-2; E196163-Y UL® CM SSTP
    RoHS Yes

    This cable works with:
  • CAT6 Shielded Jacks (FMTP6S-10PAK)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT6 250-MHz Shielded, Stranded Bulk Cable (SSTP, PIMF), Red, 1000-ft. (304.8-m):


    Connect your CAT6 250-MHz Shielded, Stranded Bulk Cable (SSTP, PIMF), Red, 1000-ft. (304.8-m) with:

    Accessory: FMTP6S-10PAK
