EYN605A-1000

Photo may show similar product

Other views

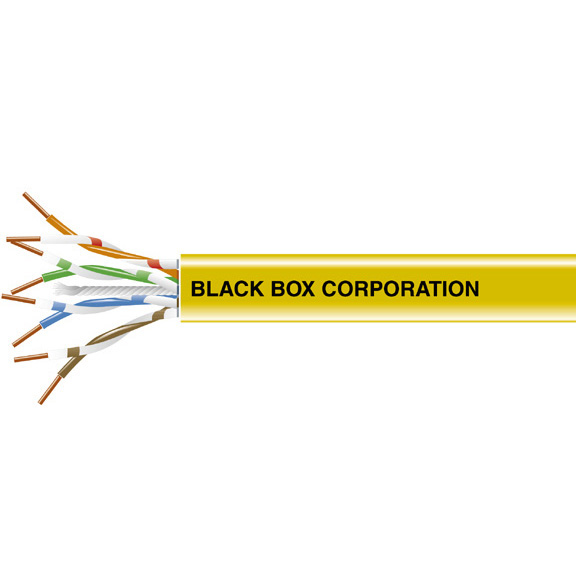

CAT6 250-MHz Bulk Cable, 4-Pair, Plenum, Yellow, 1000-ft. (304.8-m)

The 250-MHz cable for the performance demands of today and tomorrow.

EYN605A-1000

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Reliable CAT6 cable designed for high-performance runs.
  • Provides Category 6 performance within a budget.
  • Solid conductor.
  • Guaranteed for life!


  • Description

    CAT6 250-MHz Bulk Cable, 4-Pair, Plenum, Yellow, 1000-ft. (304.8-m)


    Quick Facts

  • Reliable CAT6 cable designed for high-performance runs.
  • Provides Category 6 performance within a budget.
  • Solid conductor.
  • Guaranteed for life!

  • Further Details

  • Meet Category 6 standards.
  • Ideal for high-bandwidth Ethernet, Fast Ethernet, Gigabit Ethernet, and 155- or 622-Mbps ATM.
  • Sweep tested and characterized to 250 MHz.
  • Smaller diameter for increased conduit and tray fill cable capabilities.
  • Improved attenuation for cleaner data and video transmissions.
  • Four solid-conductor unshielded twisted pairs of 23 AWG solid, bare copper.
  • FEP insulation.
  • For custom lengths, contact our FREE Tech Support.

  • NOTE: PVC version also available.

    NOTE: Cable comes on reels.

    This product works with:
    • GigaStation High-Density Multimedia Patch Panels
    • GigaTrue CAT6 Patch Panels
    • GigaTrue CAT6 Jacks
    • GigaTrue2 CAT6 Jacks
    • GigaStation Wallplates
    • GigaStation2 Wallplates
    • CAT6 Modular Plugs
    • CAT6 Termination Kits
    Questions? Contact our Free Tech Support.


    Technical Specifications for CAT6 250-MHz Bulk Cable, 4-Pair, Plenum, Yellow, 1000-ft. (304.8-m):

    Attenuation (Maximum) 19.9 dB at 100 MHz; 29.2 dB at 200 MHz; 33 dB at 250 MHz
    Cable Type 4-pair UTP
    Capacitance (Nominal) 15 pF/ft. at 1 kHz
    Conductor Gauge 23 AWG, solid, bare copper
    Delay Skew (Maximum) 45 ns/100 m (328 ft.)
    ELFEXT 24.8 dB at 100 MHz; 18.7 dB at 200 MHz
    Input Impedance 100 ± 15 ohms;
    100-200 MHz: 100 ± 22 ohms;
    200-250 MHz: 100 ± 32 ohms
    PS-ACR 22.4 dB (typical) at 100 MHz
    PS-NEXT 42.3 dB at 100 MHz; 37.8 dB at 200 MHz; 36.3 at 250 MHz
    Return Loss (Minimum) 20.1 dB at 100 MHz; 18 dB at 200 MHz; 17.3 dB at 250 MHz
    Standards TIA/EIA-568A, Category 5, Category 5e, and Category 6
    Velocity of Propagation (Nominal) 72%
    Weight 33 lb./1000 ft. (15 kg/100 m)
    NOTE: Cable comes on reels.

    This product works with:
    • GigaStation High-Density Multimedia Patch Panels
    • GigaTrue CAT6 Patch Panels
    • GigaTrue CAT6 Jacks
    • GigaTrue2 CAT6 Jacks
    • GigaStation Wallplates
    • GigaStation2 Wallplates
    • CAT6 Modular Plugs
    • CAT6 Termination Kits
    Questions? Contact our Free Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
