Cables > CAT5e

click photo to enlarge

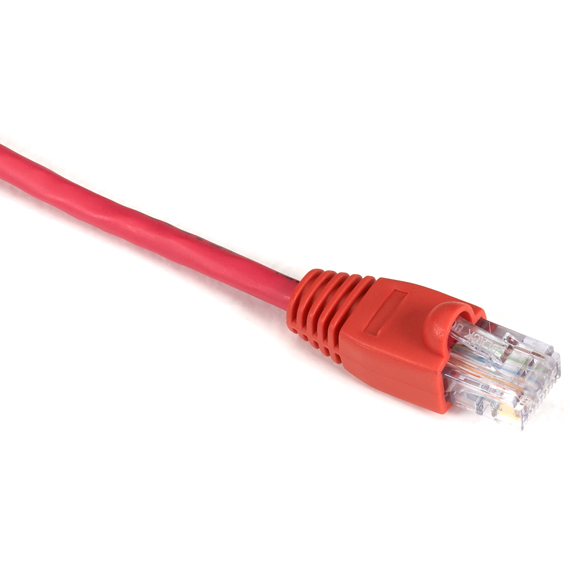

EYN752MS-0030

Photo may show similar product

Other views

CAT5e Solid Conductor, Backbone Cables, 350-MHz, 24 AWG, 4-Pair, T568B, Plenum, NEC® CMP, Straight-Pinned, Red, 30-ft. (9.1-m)

Install superior-performance 350-MHz cable in backbone runs.

EYN752MS-0030


Lifetime Warranty

Product Highlights

  • Offers stable performance at 350 MHz.
  • Nonmolded, snag-free hoods prevent cable kinks. They also reduce crosstalk.
  • Features solid conductors for backbone runs.
  • Guaranteed for life!

  • Description

    CAT5e Solid Conductor, Backbone Cables, 350-MHz, 24 AWG, 4-Pair, T568B, Plenum, NEC® CMP, Straight-Pinned, Red, 30-ft. (9.1-m)


    Quick Facts

  • Offers stable performance at 350 MHz.
  • Nonmolded, snag-free hoods prevent cable kinks. They also reduce crosstalk.
  • Features solid conductors for backbone runs.
  • Guaranteed for life!

  • Further Details

    For superior performance in your backbone runs, use our CAT5e Solid-Conductor Backbone Cable. It offers performance up to 350 MHz—more than triple the verified range of the standard.


    Technical Specifications for CAT5e Solid Conductor, Backbone Cables, 350-MHz, 24 AWG, 4-Pair, T568B, Plenum, NEC® CMP, Straight-Pinned, Red, 30-ft. (9.1-m):

    Cable Jacket — Plenum FEP
    Cable Type — 4-pair solid copper UTP
    Capacitance (Nominal) — 14 pF/ft.
    Conductor Gauge — 24 AWG
    Frequency — Up to 350 MHz
    Impedance — 100 ± 22% at 350 MHz
    NEXT — 24 dB min. at 350 MHz
    Standards — TIA/EIA-568-B.2
    Connectors — RJ-45


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT5e Solid Conductor, Backbone Cables, 350-MHz, 24 AWG, 4-Pair, T568B, Plenum, NEC® CMP, Straight-Pinned, Red, 30-ft. (9.1-m):


    Connect your CAT5e Solid Conductor, Backbone Cables, 350-MHz, 24 AWG, 4-Pair, T568B, Plenum, NEC® CMP, Straight-Pinned, Red, 30-ft. (9.1-m) with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Lifetime warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    CAT5e Solid Conductor, Backbone Cables, 350-MHz, 24 AWG, 4-Pair, T568B, Plenum, NEC® CMP, Straight-Pinned, Red, 30-ft. (9.1-m) EYN752MS-0030 $22.95

    CAT5e Solid Conductor, Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC® CM, Cross-Pinned, Blue, 2-ft. (0.6-m) EYN851M-0002 $5.95

    CAT5e Solid Conductor, Backbone Cables, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC® CM, Straight-Pinned, 10-ft. (3.0-m), Blue EYN851MS-0010 $10.95

    CAT5e Solid Conductor Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC® CM, Yellow, Straight-Pinned, 10-ft. (3.0-m) EYN855MS-0010 $10.95

    CAT5e Solid Conductor Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC® CM, Straight-Pinned, Green, 10-ft. (3.0-m) EYN859MS-0010 $10.95

    CAT5e Solid Conductor, Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC® CM, Straight-Pinned, 50-ft. (15.2-m) EYN851MS-0050 $24.95

    CAT5e Solid Conductor Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, Plenum, NEC® CMP, Straight-Pinned, Blue, 50-ft. (15.2-m) EYN850MS-0050 $32.95

    CAT5e Solid Conductor Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC® CM, Straight-Pinned, 100-ft. (30.4-m) EYN851MS-0100 $37.95

    CAT5e Solid Conductor Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, Plenum, NEC® CMP, Straight-Pinned, Blue, 100-ft. (30.4-m) EYN850MS-0100 $59.95

    CAT5e 350-MHz Solid Conductor, Backbone Cable, 24 AWG, 4-Pair, T568B, Plenum, NEC® CMP, Straight-Pinned, White, Custom Lengths EYN750MS $14.42
    CAT5e Solid Conductor Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC® CM, Straight-Pinned, Yellow, Custom Lengths EYN803MS $11.12
