Cables > Copper Patch Cables


click photo to enlarge

EYN753MS-0100

Photo may show similar product

Other views

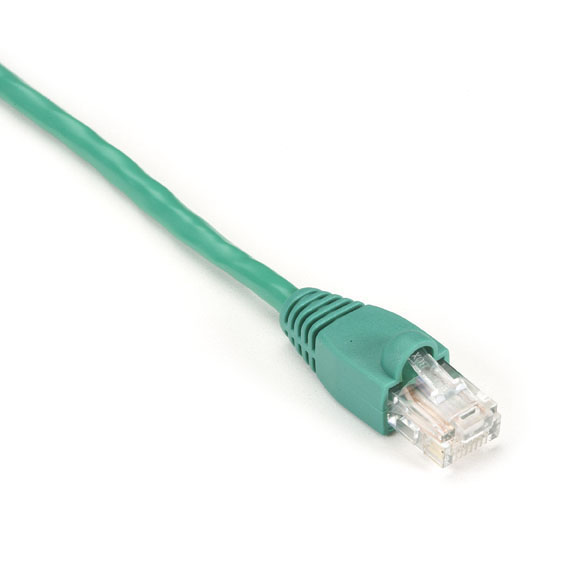

CAT5e Solid-Conductor Backbone Cable (UTP), 350-MHz, 24 AWG, 4-Pair, T568B, Plenum, NEC CMP, Straight-Pinned, Green, 100-ft. (30.4-m)

Install superior-performance 350-MHz cable in backbone runs.

EYN753MS-0100

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Offers stable performance at 350 MHz.
  • Nonmolded, snag-free hoods prevent cable kinks. They also reduce crosstalk.
  • Features solid conductors for backbone runs.
  • Guaranteed for life!


  • Further Details

    For superior performance in your backbone runs, use our CAT5e Solid-Conductor Backbone Cable. It offers performance up to 350 MHz—more than triple the verified range of the standard.

    Cable Jacket Plenum FEP
    Cable Type 4-pair solid copper UTP
    Capacitance (Nominal) 14 pF/ft.
    Conductor Gauge 24 AWG
    Frequency Up to 350 MHz
    Impedance 100 ± 22% at 350 MHz
    NEXT 24 dB min. at 350 MHz
    Standards TIA/EIA-568-B.2
    Connectors RJ-45


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The CAT5e Solid-Conductor Backbone Cable (UTP), 350-MHz, 24 AWG, 4-Pair, T568B, Plenum, NEC CMP, Straight-Pinned, Green, 100-ft. (30.4-m) comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    CAT5e Solid Conductor Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, Plenum, NEC CMP, Cross-Pinned, White, Custom Lengths EYN750M $14.71
    CAT5e 350-MHz Solid Conductor, Backbone Cable, 24 AWG, 4-Pair, T568B, Plenum, NEC CMP, Straight-Pinned, White, Custom Lengths EYN750MS $14.45
    CAT5e 350-MHz Solid Conductor, Backbone Cable, 24 AWG, 4-Pair, T568B, Plenum, NEC CMP, Straight-Pinned, 25-ft. (7.6-m) EYN750MS-0025 $19.15

    CAT5e Solid-Conductor Backbone Cable (UTP), Custom Lengths EYN795M $11.17
    CAT5e Solid Conductor, Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC CM, Straight-Pinned, Blue, Custom Lengths EYN795MS $11.17
    CAT5e Solid Conductor Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC CM, Straight-Pinned, 5-ft. (1.5-m) EYN851MS-0005 $7.05

    CAT5e Solid Conductor, Backbone Cables, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC® CM, Straight-Pinned, 10-ft. (3.0-m), Blue EYN851MS-0010 $11.10

    CAT5e Solid Conductor Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC CM, Straight-Pinned, 25-ft. (7.6-m) EYN851MS-0025 $19.15

    CAT5e Solid Conductor, Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC CM, Straight-Pinned, 50-ft. (15.2-m) EYN851MS-0050 $25.20

    CAT5e Solid Conductor Backbone Cable, 350-MHz, 24 AWG, 4-Pair, T568B, PVC, NEC CM, Straight-Pinned, 100-ft. (30.4-m) EYN851MS-0100 $38.35
