Cables > CAT5e

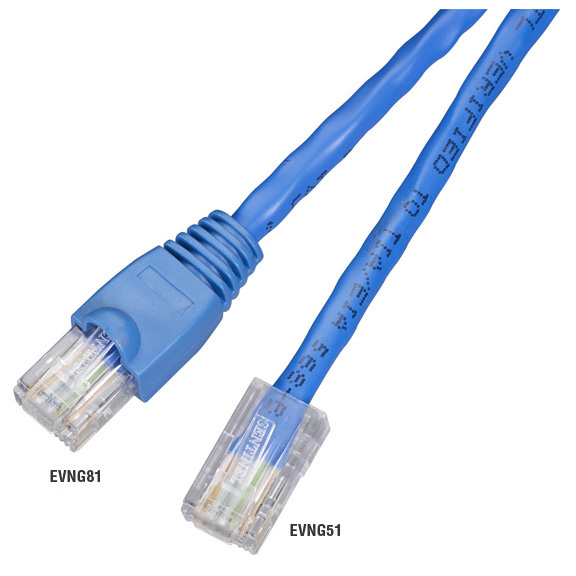

click photo to enlarge

EVNG55-0020

Photo may show similar product

Other views

CAT5e 350-MHz Patch Cables, 20-ft. (6.0-m)

Twisted-pair cable engineered for future applications.

EVNG55-0020


Lifetime Warranty

Product Highlights

  • Feature stranded conductors, making them ideal for short runs within buildings.
  • All have 4-pair, 24 AWG construction with RJ-45 connectors, a PVC jacket, and an assembled construction.
  • Rated for general-purpose communication use in accordance with NEC Article 800.
  • ETL verified to Category 5e Draft 11.
  • Guaranteed for life!

  • Description

    CAT5e 350-MHz Patch Cable, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Basic Connectors, Beige, 20-ft. (6.0-m)


    Quick Facts

  • Feature stranded conductors, making them ideal for short runs within buildings.
  • All have 4-pair, 24 AWG construction with RJ-45 connectors, a PVC jacket, and an assembled construction.
  • Rated for general-purpose communication use in accordance with NEC Article 800.
  • ETL verified to Category 5e Draft 11.
  • Guaranteed for life!

  • Further Details

  • Support IEEE 802.3 10BASE-T, 100BASE-TX, and 1000BASE-T applications, as well as IEEE 802.5 4- and 16- Mbps Token Ring uses.
  • Enhanced performance parameters with all electrical characteristics proven to exceed TIA/EIA 568A CAT5 requirements for characteristic impedance, structural return loss, attenuation, and delay skew.
  • Improved near-end crosstalk (NEXT) in comparison to standard CAT5 cable—and better than Draft 11a CAT5e NEXT.
  • Basic connector versions are available in 8 colors; snagless boot versions are available in 10 colors.


  • Technical Specifications for CAT5e 350-MHz Patch Cables, 20-ft. (6.0-m):

    Bend Radius — 1"
    Cable Type — 4-pair UTP
    Conductor Gauge — 24 AWG, stranded
    Diameter — 0.210"
    Impedance — 100 ± 15 ohms
    Mutual Capacitance — 14 pF/ft.
    NEXT (Minimum) — 8 dB
    Nominal Velocity of Propagation — 68%


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your CAT5e 350-MHz Patch Cables, 20-ft. (6.0-m) with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Lifetime warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    CAT5e 350-MHz Patch Cables, 20-ft. (6.0-m) EVNG55-0020 $18.95

    CAT5e 350-MHz Patch Cable with Snagless Boots, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Beige, 1-ft. (0.3-m) EVNG85-0001 $1.95

    CAT5e 350-MHz Patch Cable with Snagless Boots, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Beige, 6-ft. (1.8-m) EVNG85-0006 $2.95

    CAT5e 350-MHz Patch Cable with Snagless Boots, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Blue, 6-ft. (1.8-m) EVNG81-0006 $7.67

    CAT5e 350-MHz Patch Cable, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Snagless Boots, Blue, 3-ft. (0.9-m) EVNG81-0003 $10.95

    CAT5e 350-MHz Patch Cable with Basic Connectors, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Yellow, 6-ft. (1.8-m) EVNG54-0006 $11.95

    CAT5e 350-MHz Patch Cable with Snagless Boots, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Yellow, 6-ft. (1.8-m) EVNG84-0006 $12.95

    CAT5e 350-MHz Patch Cable with Snagless Boots, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Yellow, 10-ft. (3.0-m) EVNG84-0010 $15.95

    CAT5e 350-MHz Patch Cable, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Snagless Boots, Blue, 20-ft. (6.0-m) EVNG81-0020 $19.95

    CAT5e 350-MHz Patch Cable, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Snagless Boots, Blue, 30-ft. (9.1-m) EVNG81-0030 $30.95

    CAT5e 350-MHz Patch Cable with Snagless Boots, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Beige, 50-ft. (15.2-m) EVNG85-0050 $45.95
