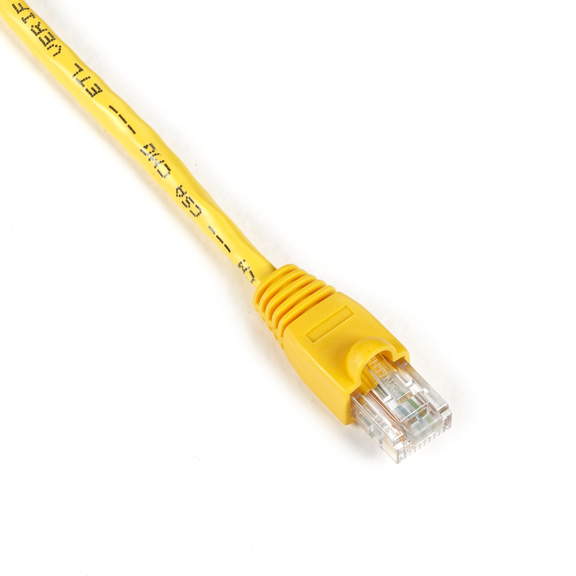

CAT5e 350-MHz Patch Cable with Snagless Boots, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Yellow, 1-ft. (0.3-m)

Twisted-pair cable engineered for future applications.

EVNG84-0001

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Feature stranded conductors, making them ideal for short runs within buildings.
  • All have 4-pair, 24 AWG construction with RJ-45 connectors, a PVC jacket, and an assembled construction.
  • Rated for general-purpose communication use in accordance with NEC Article 800.
  • ETL verified to Category 5e Draft 11.
  • Guaranteed for life!


  • Description

    CAT5e 350-MHz Patch Cable with Snagless Boots, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Yellow, 1-ft. (0.3-m)


    Quick Facts

  • Feature stranded conductors, making them ideal for short runs within buildings.
  • All have 4-pair, 24 AWG construction with RJ-45 connectors, a PVC jacket, and an assembled construction.
  • Rated for general-purpose communication use in accordance with NEC Article 800.
  • ETL verified to Category 5e Draft 11.
  • Guaranteed for life!

  • Further Details

  • Support IEEE 802.3 10BASE-T, 100BASE-TX, and 1000BASE-T applications, as well as IEEE 802.5 4- and 16- Mbps Token Ring uses.
  • Enhanced performance parameters with all electrical characteristics proven to exceed TIA/EIA 568A CAT5 requirements for characteristic impedance, structural return loss, attenuation, and delay skew.
  • Improved near-end crosstalk (NEXT) in comparison to standard CAT5 cable—and better than Draft 11a CAT5e NEXT.
  • Basic connector versions are available in 8 colors; snagless boot versions are available in 10 colors.

  • Economically priced stranded patch cable that's rated for Category 5e installations.


    Technical Specifications for CAT5e 350-MHz Patch Cable with Snagless Boots, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Yellow, 1-ft. (0.3-m):

    Bend Radius 1
    Cable Type 4-pair UTP
    Conductor Gauge 24 AWG, stranded
    Diameter 0.210
    Impedance 100 ± 15 ohms
    Mutual Capacitance 14 pF/ft.
    NEXT (Minimum) 8 dB
    Nominal Velocity of Propagation 68%


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
