Cables > CAT5

click photo to enlarge

EVNSL16A

Photo may show similar product

Other views

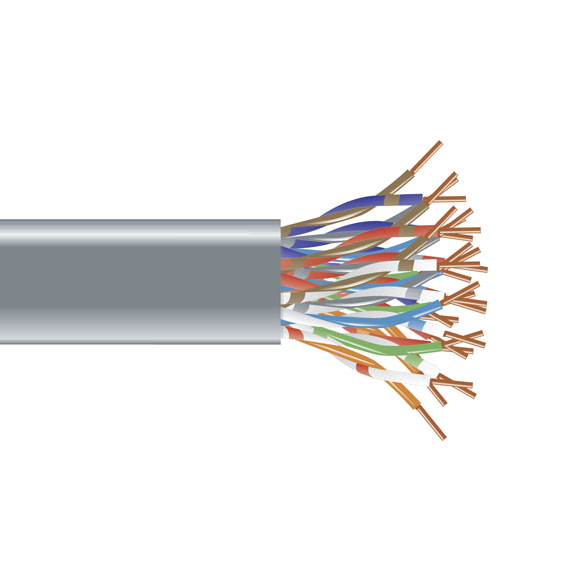

CAT5e 25-Pair Bulk Cable, 100-MHz, 24 AWG, Solid, PVC, Custom Lengths

JUMBO cables deliver multiple pairs for zone cabling with one pull!

EVNSL16A


Lifetime Warranty

Product Highlights

  • Pull one trunk cable and get 25 unshielded twisted pairs.
  • Can be used as horizontal distribution cabling between wiring closet patch panels in an open-office environment.
  • Guaranteed for life!

  • Description

    CAT5e 25-Pair Bulk Cable, 100-MHz, 24 AWG, Solid, PVC, Custom Lengths


    Quick Facts

  • Pull one trunk cable and get 25 unshielded twisted pairs.
  • Can be used as horizontal distribution cabling between wiring closet patch panels in an open-office environment.
  • Guaranteed for life!

  • Further Details

  • Zone cabling configuration makes moves, adds, and changes (MACs) easier.
  • Small diameter and flexible construction make it easy to install.
  • Use in 10BASE-T, 100BASE-TX, voice, 155-Mbps ATM, and other 100-MHz networks.
  • Solid-conductor construction.

  • Zone cabling vs. traditional home run cabling.
    Installing network cabling in a “home run” style configuration typically involves running an individual horizontal cable to each workstation. This configuration, however, can be a problem when it’s time to perform moves, adds, and changes (MACs). An entire length of cable may have to be rerouted, a process that’s often both time-consuming and expensive.

    Our 25-pair cables are specially designed to be used for zone cabling. In a zone configuration, patch cables from individual workstations are fed into a multiuser telecommunications outlet or a consolidation point. From this point, a single horizontal CAT5e or CAT5 25-Pair Cable carries voice or data the rest of the way. Not only do you need fewer cable pulls, but there’s also less cable to mess with during MACs.

    In addition to zone cabling applications, you can use these cables for copper backbone and interconnect applications.

    Ideal for data and voice backbone applications, zone cabling, cross-connects, and preconnectorized assemblies.

    NOTE: If you use CAT5 25-Pair Plugs with CAT5e cable, performance will only be at a CAT5 level.

    NOTE: There’s a 25-foot (7.6-m) minimum on custom lengths.

    These products work with:
    • Butterfly Tool and Color-Code Bar
    • Hoods with Strain Relief
    • CAT5 25-Pair Plug
    Questions? Contact our FREE Tech Support.


    Technical Specifications for CAT5e 25-Pair Bulk Cable, 100-MHz, 24 AWG, Solid, PVC, Custom Lengths:

    Conductor — CAT5e: 24 AWG, solid bare copper
    Diameter — CAT5e: 0.415" (10.5 mm);
    CAT5 PVC: 0.556" (14.12 mm);
    CAT5 Plenum: 0.435" (11.05 mm)
    Impedance — CAT5e: 100 ± 15 ohms
    Jacket — PVC: Flame-retardant polyolefin;
    Plenum: FEP
    Mutual Capacitance — 330 pF/100 m (328.1 ft.) at 1 kHz
    Resistance — 9.38 ohms at 100 m (328.1 ft.)
    NOTE: If you use CAT5 25-Pair Plugs with CAT5e cable, performance will only be at a CAT5 level.

    NOTE: There’s a 25-foot (7.6-m) minimum on custom lengths.

    These products work with:
    • Butterfly Tool and Color-Code Bar
    • Hoods with Strain Relief
    • CAT5 25-Pair Plug
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT5e 25-Pair Bulk Cable, 100-MHz, 24 AWG, Solid, PVC, Custom Lengths:


    Connect your CAT5e 25-Pair Bulk Cable, 100-MHz, 24 AWG, Solid, PVC, Custom Lengths with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Lifetime warranty is included.
