Cables > CAT5e

click photo to enlarge

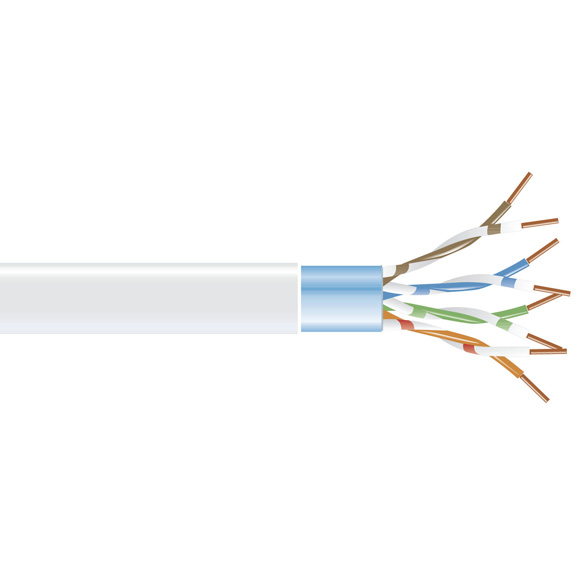

EVNSL0172WH-1000

Photo may show similar product

Other views

CAT5e 100-MHz Shielded, Stranded Bulk PVC Cable (FTP), White, 1000-ft. (304.8-m)

Shielded CAT5e cable for noisy data center and workgroup connections.

EVNSL0172WH-1000


Lifetime Warranty

Product Highlights

  • Meets CAT5e standards.
  • Use for 10/100/1000BASE-T networks, broadband video, T1, ISDN, and more.
  • Make your own patch cables.
  • Cable construction: 26 AWG stranded conductor, Mylar® tape, tinned-copper drain wire, aluminum/Mylar tape, PVC jacket.
  • Flame retardancy verified to IEC 60332-1.
  • Guaranteed for life!

  • Description

    CAT5e 100-MHz Shielded, Stranded Bulk PVC Cable (FTP), White, 1000-ft. (304.8-m)


    Quick Facts

  • Meets CAT5e standards.
  • Use for 10/100/1000BASE-T networks, broadband video, T1, ISDN, and more.
  • Make your own patch cables.
  • Cable construction: 26 AWG stranded conductor, Mylar® tape, tinned-copper drain wire, aluminum/Mylar tape, PVC jacket.
  • Flame retardancy verified to IEC 60332-1.
  • Guaranteed for life!

  • Further Details



    Technical Specifications for CAT5e 100-MHz Shielded, Stranded Bulk PVC Cable (FTP), White, 1000-ft. (304.8-m):

    Attenuation (Maximum) — 33 dB/100 m (328 ft.) at 100 MHz
    Capacitance Unbalanced (Maximum) — 330 pF/100
    Characteristic Resistance — 1–100 MHz
    Conductor Gauge — 26 AWG, stranded, tinned copper
    Conductor Resistance — 14.07 ohms/100m
    Construction — Mylar tape, tinned-copper drain wire, aluminum/Mylar tape, PVC (CM) jacket
    Frequency — Up to 100 MHz
    Impedance — 100 ± 15 ohms
    Insulation Material — HDPE
    Mutual Capacitance (Maximum) — 5600 pF/100m
    NEXT (Minimum) — 35.0 dB/100 m (328 ft.) at 100 MHz
    PS-NEXT — 32.0 dB/100 m (328 ft.) at 100 MHz
    Outside Diameter — 0.22" ± 0.1"
    Resistance Unbalanced (Maximum) — 5%
    Standards — ANSI/TIA-568-B.2; ISO/IED 11801 ed. 2; EN 50288-2-2; IEC 60332-1-2, UL®
    RoHS — Yes

    This cable works with:
  • Shielded CAT5e Modular Plugs, RJ-45
  • Questions? Contact our FREE Tech Support.
    This cable works with:
  • Shielded CAT5e Modular Plugs, RJ-45
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT5e 100-MHz Shielded, Stranded Bulk PVC Cable (FTP), White, 1000-ft. (304.8-m):

    Application Diagrams

    Pdf Drawings

    • CAT5e 100-MHz Shielded, Stranded Bulk PVC Cable (FTP), White, PDF drawing
      PDF drawing for EVNSL0172WH-1000 (v1)

    Black Box Explains


    Connect your CAT5e 100-MHz Shielded, Stranded Bulk PVC Cable (FTP), White, 1000-ft. (304.8-m) with:

    Accessory: EYN851A-PB-1000

    GigaBase 350 CAT5e, 350-MHz Solid Bulk Cable, PVC, Blue, 1000-ft. (304.8-m)

    GigaBase 350 CAT5e, 350-MHz Solid Bulk Cable, PVC, Blue, 1000-ft. (304.8-m)

    Accessory: EVNSL0501A-1000

    CAT5e Shielded 350-MHz Solid Bulk Cable (STP), 24 AWG, 4-Pair, PVC, Blue, 1000-ft. (304.8-m)

    CAT5e Shielded 350-MHz Solid Bulk Cable (STP), 24 AWG, 4-Pair, PVC, Blue, 1000-ft. (304.8-m)

    Accessory: FMTP5ES-10PAK

    CAT5e Shielded Modular Plug, RJ-45, 10-Pack

    CAT5e Shielded Modular Plug, RJ-45, 10-Pack

    Accessory: EVNSL0173BL-0003

    CAT5e 100-MHz Shielded, Solid Backbone Cable with Foiled Twisted Pair (FTP), Plenum, Blue, 3-ft. (0.9-m)

    CAT5e 100-MHz Shielded, Solid Backbone Cable with Foiled Twisted Pair (FTP), Plenum, Blue, 3-ft. (0.9-m)
