Cables > Copper Patch Cables


click photo to enlarge

EVNSL05E-0001

Photo may show similar product

Other views

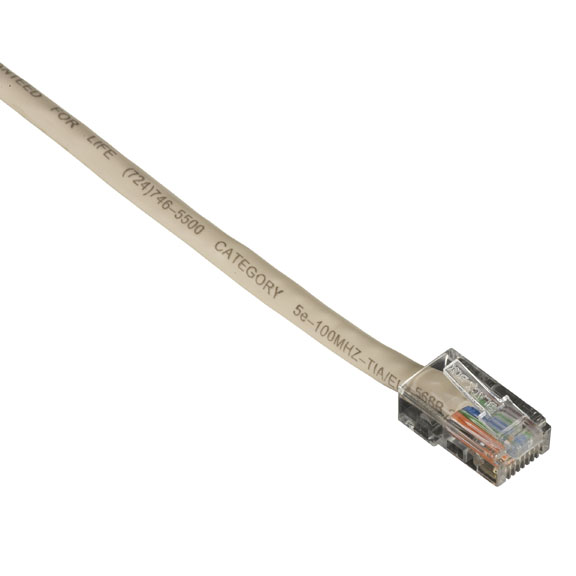

CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, Beige, 1-ft. (0.3-m)

Affordable CAT5e cable tested to 100 MHz.

EVNSL05E-0001

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Cable is tested and certified to 100 MHz.
  • Meets or exceeds TIA CAT5e T568B standards.
  • Guaranteed for life!


  • Further Details

  • Use for 100BASE-TX and other 100-MHz applications.
  • Features stranded conductors for short runs.
  • Basic connectors provide reliable performance.
  • Features four pairs, 24 AWG construction, RJ-45 connectors, straight pinning, and a PVC jacket.
  • Quantity discounts are available.
  • Also available in ten other colors.


  • NOTE: Also available in 25-packs and custom colors. Contact our FREE Tech Support.

    This cable works with all standard jacks, wallplates, and other hardware. Questions? Contact our FREE Tech Support.

    This product works with:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • Questions? Contact our FREE Tech Support.

    Attenuation 26.4 dB/100 m (328.1 ft.) @ 100 MHz
    Cable Type 4-pair UTP
    Conductor Gauge 24 AWG, stranded
    Delay Skew 45 ns/100 m
    ELFEXT 26.4 dB/100 m (328.1 ft.) @ 100 MHz
    Frequency Up to 100 MHz
    Impedance 100 ± 15 ohms
    Mutual Capacitance 15 pF/ft.
    NEXT 35.3 dB/100 m (328.1 ft.) @ 100 MHz
    Propagation Delay 538 dB/100 m (328.1 ft.) @ 100 MHz
    PS-ELFEXT 20.8 dB/100 m (328.1 ft.) @ 100 MHz
    PS-NEXT 32.8 dB/100 m (328.1 ft.) @ 100 MHz
    Resistance 45 ohms/1000 ft.
    Return Loss 19.0 dB/100 m (328.1 ft.) @ 100 MHz
    Structural Return Loss 16 dB/100 m (328.1 ft.) @ 100 MHz
    NOTE: Also available in 25-packs and custom colors. Contact our FREE Tech Support.

    This cable works with all standard jacks, wallplates, and other hardware. Questions? Contact our FREE Tech Support.

    This product works with:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Accessory: JPM192A

    GigaStation High-Density Multimedia Patch Panel, 24-Port

    GigaStation High-Density Multimedia Patch Panel, 24-Port

    Accessory: FM925-25PAK

    GigaBase CAT5e Jacks, Universal Wiring, 25-Pack, Office White

    GigaBase™ CAT5e Jacks, Universal Wiring, 25-Pack, Office White

    Accessory: FMT920-R2-25PAK

    GigaBase2 CAT5e Jack, Universal Wiring, Blue, 25-Pack

    GigaBase2 CAT5e Jack, Universal Wiring, Blue, 25-Pack

    Accessory: WPT454

    GigaStation2 Wallplate, 1-Port Single-Gang, Ivory

    GigaStation2 Wallplate, 1-Port Single-Gang, Ivory

    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, Beige, 1-ft. (0.3-m) comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, Blue, Custom Lengths EVNSL01E $9.30
    CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, Yellow, 5-ft. (1.5-m) EVNSL04E-0005 $5.55

    CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, Beige, Custom Lengths EVNSL05E $9.30
    CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, White, 3-ft. (0.9-m) EVNSL10E-0003 $4.00

    CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, Gray, 3-ft. (0.9-m) EVNSL11E-0003 $4.00

    CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, Gray, 6-ft. (1.8-m) EVNSL11E-0006 $6.05

    CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, Gray, 7-ft. (2.1-m) EVNSL11E-0007 $6.55

    CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, Gray, 10-ft. (3.0-m) EVNSL11E-0010 $7.05

    CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, Gray, 15-ft. (4.5-m) EVNSL11E-0015 $7.55

    CAT5e 100-MHz Patch Cable (UTP) with Basic Connectors, Straight-Pinned, Gray, 20-ft. (6.0-m) EVNSL11E-0020 $9.05



    Add to Cart

    Price: $3.00

    Quantity Available: 1128

    Quantity

    Warranty

    Total

    (1128 available)

    Shipping Info

    Weight: 0.063 lbs.
    HxWxD: 0.25 x 5.5 x 5.5 in.
