Cables > Copper Patch Cables


click photo to enlarge

EVCRB03E

Photo may show similar product

Other views

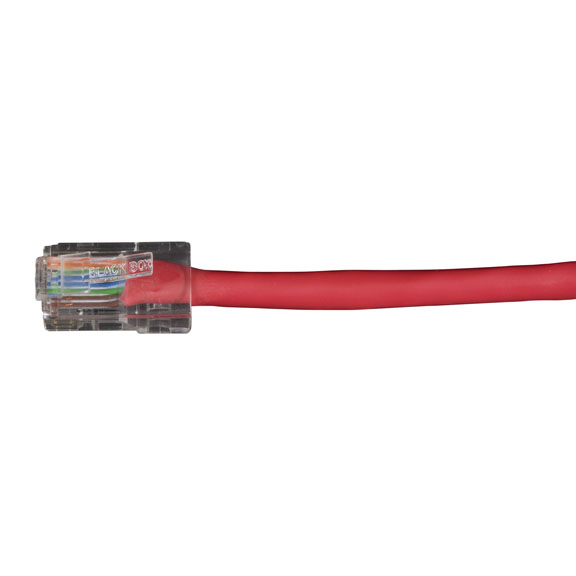

CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Red, Custom Lengths

The affordable 100-MHz UTP cable for your crossover applications.

EVCRB03E

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Use for 100BASE-TX and other 100-MHz applications.
  • UTP cable features stranded conductors for short runs.
  • Meets or exceeds CAT5e specifications.
  • Has four-pair, 24-gauge construction, RJ-45 connectors, and a PVC jacket.
  • Guaranteed for life!


  • Further Details

  • Optional molded boots prevent cable kinks and provide strain relief.
  • Quantity discounts are available.
  • Also available in yellow, blue, beige, and green.
  • Straight-pinned cables with molded boots or basic connectors are also available.


  • NOTE: Also available in 25-packs. Add "-25PAK" to the end of the code when ordering.

    This product works with all standard patch panels, jacks, and wallplates, including:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • Questions? Contact our FREE Tech Support.

    Attenuation 26.4 dB/100 m (328.1 ft.) @ 100 MHz
    Cable Type 4-pair UTP
    Conductor Gauge 24 AWG, stranded
    Delay Skew 45 ns/100 m
    ELFEXT 26.4 dB/100 m (328.1 ft.) @ 100 MHz
    Frequency Up to 100 MHz
    Impedance 100 ± 15 ohms
    Mutual Capacitance 15 pF/ft.
    NEXT 35.3 dB/100 m (328.1 ft) @ 100 MHz
    Propagation Delay 538 dB/100 m (328.1 ft) @ 100 MHz
    PS-ELFEXT 20.8 db/100 m (328.1 ft) @ 100 MHz
    PS-NEXT 32.8 dB/100 m (328.1 ft) @ 100 MHz
    Resistance 45 ohms/1000 ft.
    Return Loss 19.0 dB/100 m (328.1 ft) @ 100 MHz
    Structural Return Loss 16 dB/100 m (328.1 ft) @ 100 MHz
    NOTE: Also available in 25-packs. Add "-25PAK" to the end of the code when ordering.

    This product works with all standard patch panels, jacks, and wallplates, including:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Accessory: JPM192A

    GigaStation High-Density Multimedia Patch Panel, 24-Port

    GigaStation High-Density Multimedia Patch Panel, 24-Port

    Accessory: JPM910A-R4

    GigaBase CAT5e Patch Panel, Universal Wiring, 96-Port, 4U

    GigaBase CAT5e Patch Panel, Universal Wiring, 96-Port, 4U

    Accessory: FM920-25PAK

    GigaBase CAT5e Jacks, Universal Wiring, 25-Pack, Blue

    GigaBase™ CAT5e Jacks, Universal Wiring, 25-Pack, Blue

    Accessory: FMT920-R2-25PAK

    GigaBase2 CAT5e Jack, Universal Wiring, Blue, 25-Pack

    GigaBase2 CAT5e Jack, Universal Wiring, Blue, 25-Pack

    Accessory: WP462

    GigaStation Wallplate, 2-Port, Single-Gang, Office White

    GigaStation Wallplate, 2-Port, Single-Gang, Office White

    Accessory: WPT460

    GigaStation2 Wallplate, 2-Port Single-Gang, Ivory

    GigaStation2 Wallplate, 2-Port Single-Gang, Ivory

    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Red, Custom Lengths comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Blue, Custom Lengths EVCRB01E $10.80
    CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Blue, 15-ft. (4.5-m) EVCRB01E-0015 $8.60

    CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Green, Custom Lengths EVCRB02E $10.80
    CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Green, 20-ft. (6.0-m) EVCRB02E-0020 $9.65

    CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Red, 1-ft. (0.3-m) EVCRB03E-0001 $2.05

    CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Red, 15-ft. (4.5-m) EVCRB03E-0015 $8.60

    CAT5e 100-MHz Patch Cable, UTP, Basic Connectors, Cross-Pinned, 20-ft. (6.0-m) EVCRB03E-0020 $9.65

    CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Yellow, Custom Lengths EVCRB04E $10.80
    CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Yellow, 1-ft. (0.3-m) EVCRB04E-0001 $2.05

    CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Beige, Custom Lengths EVCRB05E $10.80


    Kit Pricing

    Starting At: $10.80

    On Back Order

    To order please call
    1-800-316-7107

    Please Note: Once ordered, this product cannot be cancelled or returned for credit.
