Cables > Copper Patch Cables


click photo to enlarge

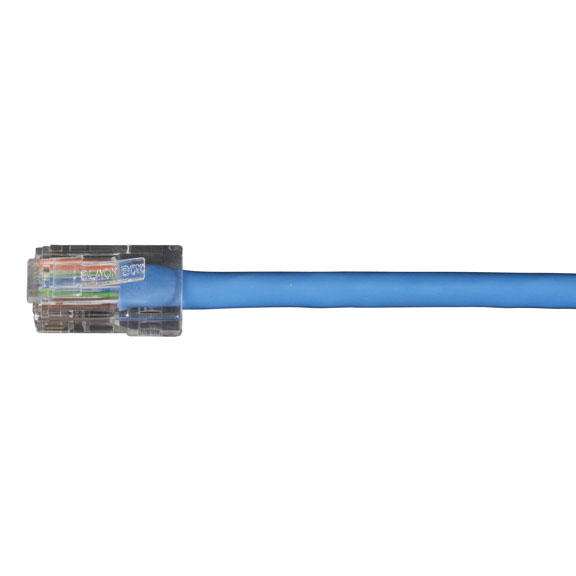

EVCRB01E

Photo may show similar product

Other views

CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Blue, Custom Lengths

The affordable 100-MHz UTP cable for your crossover applications.

EVCRB01E

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Use for 100BASE-TX and other 100-MHz applications.
  • UTP cable features stranded conductors for short runs.
  • Meets or exceeds CAT5e specifications.
  • Has four-pair, 24-gauge construction, RJ-45 connectors, and a PVC jacket.
  • Guaranteed for life!


  • Description

    CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Blue, Custom Lengths


    Quick Facts

  • Use for 100BASE-TX and other 100-MHz applications.
  • UTP cable features stranded conductors for short runs.
  • Meets or exceeds CAT5e specifications.
  • Has four-pair, 24-gauge construction, RJ-45 connectors, and a PVC jacket.
  • Guaranteed for life!

  • Further Details

  • Optional molded boots prevent cable kinks and provide strain relief.
  • Quantity discounts are available.
  • Also available in yellow, green, beige, and red.
  • Straight-pinned cables with molded boots or basic connectors are also available.


  • NOTE: Also available in 25-packs. Add "-25PAK" to the end of the code when ordering.

    This product works with all standard patch panels, jacks, and wallplates, including:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Blue, Custom Lengths:

    Attenuation 26.4 dB/100 m (328.1 ft.) @ 100 MHz
    Cable Type 4-pair UTP
    Conductor Gauge 24 AWG, stranded
    Delay Skew 45 ns/100 m
    ELFEXT 26.4 dB/100 m (328.1 ft.) @ 100 MHz
    Frequency Up to 100 MHz
    Impedance 100 ± 15 ohms
    Mutual Capacitance 15 pF/ft.
    NEXT 35.3 dB/100 m (328.1 ft) @ 100 MHz
    Propagation Delay 538 dB/100 m (328.1 ft) @ 100 MHz
    PS-ELFEXT 20.8 db/100 m (328.1 ft) @ 100 MHz
    PS-NEXT 32.8 dB/100 m (328.1 ft) @ 100 MHz
    Resistance 45 ohms/1000 ft.
    Return Loss 19.0 dB/100 m (328.1 ft) @ 100 MHz
    Structural Return Loss 16 dB/100 m (328.1 ft) @ 100 MHz
    NOTE: Also available in 25-packs. Add "-25PAK" to the end of the code when ordering.

    This product works with all standard patch panels, jacks, and wallplates, including:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Blue, Custom Lengths:


    Connect your CAT5e 100-MHz Patch Cable, Basic Connectors, Cross-Pinned, PVC, Blue, Custom Lengths with:

    Accessory: FM920

    GigaBase CAT5e Jack, Universal Wiring, Single-Pack, Blue

    GigaBase™ CAT5e Jack, Universal Wiring, Single-Pack, Blue

    Accessory: JPM191A

    GigaStation High-Density Multimedia Patch Panel, 16-Port (1U)

    GigaStation High-Density Multimedia Patch Panel, 16-Port (1U)

    Accessory: WP456

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    Accessory: WPT454

    GigaStation2 Wallplate, 1-Port Single-Gang, Ivory

    GigaStation2 Wallplate, 1-Port Single-Gang, Ivory

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.



    Kit Pricing

    Starting At: $10.76

    Quantity Available: 0

    To order please call
    1-877-877-2269

    Please Note: Once ordered, this product cannot be cancelled or returned for credit.

    Shipping Info

    Weight: NotAvailable
    HxWxD: 0 x 0 x 0 in.
