Video & Multimedia > Extenders

click photo to enlarge

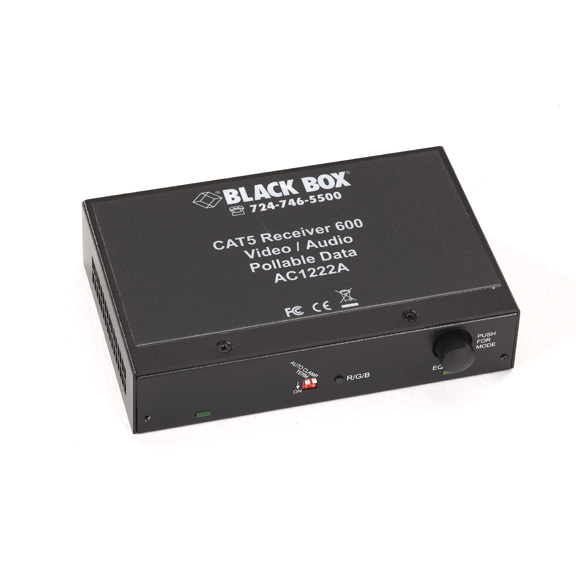

AC1222A

Photo may show similar product

Other views

  • AC1222A
  • AC1222A

CAT5 Video, Stereo Audio, & Pollable Data Distribution System Receiver, Daisychainable, 600-ft. with Skew Comp

Extend VGA video and stereo audio up to 600 feet over CAT5 and control individual displays—even those in a daisychain!

AC1222A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Works with system transmitter to extend high-resolution VGA video up to 600 feet (182.9 m) over CAT5 or higher cable—no boosters or amplifiers required.
  • Enables bidirectional communications with individual displays.
  • Ideal for advanced digital signage and interactive display control.


    • Description

    CAT5 Video, Stereo Audio, & Pollable Data Distribution System Receiver, Daisychainable, 600-ft. with Skew Comp


    Quick Facts

  • Works with system transmitter to extend high-resolution VGA video up to 600 feet (182.9 m) over CAT5 or higher cable—no boosters or amplifiers required.
  • Enables bidirectional communications with individual displays.
  • Ideal for advanced digital signage and interactive display control.

    • Further Details

  • Supports resolutions up to 1920 x 1200 and DDC/EDID communications.
  • Daisychainable (for up to 12 receivers total in a chain*).
  • Features skew compensation for use in applications without skew-free cabling.
  • No software needed. The system’s units operate independently of your network.
  • Has an HD15 VGA video output but works with any type of analog video.
  • Samples and recreates sync information accurately for optimum video display.
  • Durable steel design.

    With stereo audio or addressable duplex RS-232 communications support, our CAT5 Video, Stereo Audio, & Pollable Data Distribution System gives you more flexibility in your AV distribution or interactive digital signage applications.

    Use this receiver with the system’s separately sold transmitter to simplify and reduce costs in your extension installation. Save money by eliminating the need for additional CAT5 cables for stereo audio and bidirectional serial data.

    Along with VGA video, the system distributes stereo audio to remotely connected speakers and addressable serial data for independent control of one or more connected displays. The extender is ideal for controlling digital signage remotely—turn each display on or off, check and update display settings (brightness, contrast, etc.), and even receive data from interactive devices such as touch screens.

    You can also send RS-232 serial data from a media player or other content server to multiple daisychained displays and have them report back.

    The CAT5 Video, Stereo Audio, & Pollable Data Distribution System can be used for:
    • Digital signage display metric reporting.
    • Two-way communications with interactive touch screen kiosks in PoS/PoP retail settings.
    • Display control for “narrowcasting” content to a specific digital signage audience.
    • Displays that are viewed only certain hours of a day—to conserve power, turn screens off remotely.

    The system’s components are inexpensive, and they use ordinary CAT5 cable (but can be used with CAT5e and CAT6 cables, too) while maintaining the highest video quality even at longer distances.

    The receiver featured here supports distances up to 600 feet (182.9 m) over CAT5 or higher cable (receivers for longer distances, up to 2000 feet [609.6 m], are also available). Because it features built-in skew compensation up to 65 ns, it’s great for applications where you don’t have skew-free copper wiring. To adjust skew-delay, just turn a knob and observe the colored LEDs indicating which color is being delayed. The same knob, when pressed, cycles from skew adjustment to cable EQ, which you can use to adjust for your specific UTP cable length.

    All of the receivers in the family have a single RJ-45 interconnection port, you link to the transmitter over CAT5 or higher cable, and can be daisychained (for up to 12 receivers total*) for distributing video—as well as pollable serial data—to multiple screens.

    For audio, the system supports L/R summed audio transmission, combining both left and right channels from a stereo source into one channel for transmission to both left and right speakers.

    And though the transmitter has an HD15 VGA video connector, it can be used to output any type of analog video—no reconfiguration of the receiver itself is necessary! Just add optional VGA to RGB Converters or adapter cables for S-Video, Component, or Composite video on both transmit and receive sides.

    Plus, the CAT5 Video, Stereo Audio, & Pollable Data Distribution System is simple to set up and use. No software is required, and the system supports easy, external configuration of DC restoration and AC coupling as well as DDC/EDID modes, particularly when integrating sources running Windows Vista®.

    Also available: kits for mounting units in racks or cabinets, as well as a full-matrix 16 x 16 UTP switch and 1 x 9 Video Distribution Amp**.

    Don’t need bidirectional pollable control? Looking for a lower-cost system to send high-resolution VGA video along with either mono audio or unidirectional (transmit-only) serial data long distances? Then see our CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitters and Receivers.

    NOTE: Not designed for Ethernet network operation.

    * Although the system supports 12 receivers in each daisychain, we recommend using a maximum of four receivers in a daisychain configuration.

    ** When the 1 x 9 Video Distribution Amp is used, transmit-only serial data is supported.



    • Technical Specifications for CAT5 Video, Stereo Audio, & Pollable Data Distribution System Receiver, Daisychainable, 600-ft. with Skew Comp:

    Cable Supported — Category 5, 5e, and CAT6 shielded twisted-pair (STP) or unshielded twisted-pair (UTP)
    Resolution (Maximum) — 1920 x 1200 (WUXGA)
    CE Approval — Yes
    RoHS — Yes
    Connectors — Video out: (1) HD15 F (VGA);
    Audio out: (1) 4-pin Phoenix (left/right summed stereo audio);
    Serial out: (1) DB9 M (pollable duplex serial RS-232);
    Daisychain port: (1) RJ-45;
    Interconnect: (1) RJ-45
    Operating Environment — Temperature: 32 to 104° F (0 to 40° C);
    Humidity: Up to 80%, noncondensing
    Power — Input: 100–240 VAC, 50–60 Hz, autosensing, external;
    Output: +5 VDC; Consumption: 6 Watts (maximum)
    Size — 1.2"H x 5.5"W x 3.6"D (3.1 x 14 x 9.2 cm)
    Weight — 1 lb. (0.5 kg)


    This product works with:
  • CAT5 Video, Stereo Audio, & Pollable Data Distribution System Transmitter, 1-Port (AC1220A)

    For distributing signals to up to nine locations, order:
  • CAT5 Video Distribution System 1 x 9 Video Distribution Amp (AC1050A)

    To switch a number of sources for output to a number of screens, order:
  • CAT5 Video Distribution System Full-Matrix Switch, 16 x 16 (AC1051A)

    To convert VGA RGBHV signals to RGB sync signals, order at least two converters (for local and remote connections):
  • VGA to RGB Converter (AC312A)

    To connect S-Video, Component, or Composite video to a VGA port, order at least two adapter cables (for local and remote connections):
  • S-Video to HD15 Cable, 6-ft. (1.8-m) (AC1067A)
  • (3) RCA to HD15 Cable, 3-ft. (0.9-m) (AC1068A)

    Rackmount multiple receiver(s) with:
  • 1U Rackmount Kit for (3) Units (AC1011)
    Questions? Contact our FREE Tech Support.

    NOTE: In addition to the AC1220A, this receiver is compatible with legacy/discontinued transmitters in the Multi and MultiView extender lines. For details about compatible units, contact Black Box Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
