Video & Multimedia > Extenders

click photo to enlarge

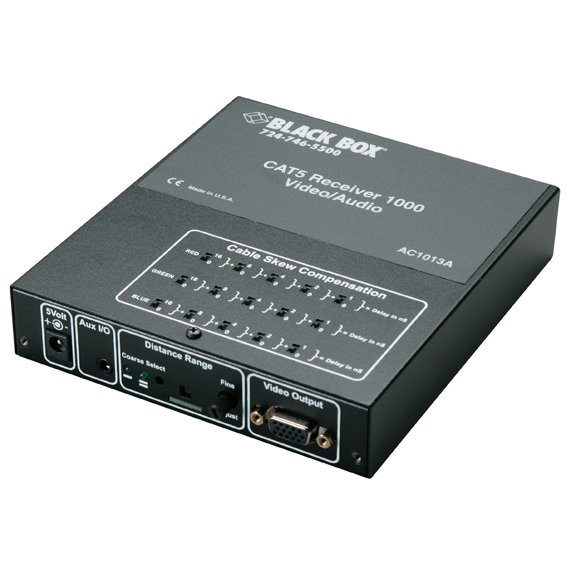

AC1013A-R2

Photo may show similar product

Other views

  • AC1013A-R2
  • AC1013A-R2

CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 1200-ft. with Skew Comp

Extend hi-res VGA video with audio or serial data up to 1200 feet over ordinary CAT5 cable.

AC1013A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Use with a system transmitter to distribute VGA video and either analog audio or transmit-only serial data to a screen over CAT5.
  • Provides WUXGA (1920 x 1200)/1080p HD video at distances of up to 1200 feet (356.8 m).
  • Features skew compensation for use in applications without skew-free cabling.


    • Description

    CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 1200-ft. with Skew Comp


    Quick Facts

  • Use with a system transmitter to distribute VGA video and either analog audio or transmit-only serial data to a screen over CAT5.
  • Provides WUXGA (1920 x 1200)/1080p HD video at distances of up to 1200 feet (356.8 m).
  • Features skew compensation for use in applications without skew-free cabling.

    • Further Details

  • Great for many digital signage applications, including corporate campuses, retail, restaurants, churches, conference centers, colleges, and more!
  • Daisychainable through a second UTP port. Connect to 11 other receivers for additional video output.
  • No software needed. The system’s units operate independently of your network.
  • Has an HD15 VGA video output but works with any type of analog video.
  • System samples and recreates sync information accurately for optimum video display.
  • Electrostatic discharge (ESD) protection on input/output circuits.
  • Highly immune to electrical noise or vibration.
  • Durable steel design.

    Need to send high-resolution VGA video along with either mono summed audio or transmit-only serial data long distances? You’ve found your solution with our CAT5 Video & Mono Audio/Serial Transmit Distribution System.

    The system’s components are inexpensive, and they use ordinary CAT5 cable (but can be used with CAT5e and CAT6 cables, too) while maintaining the highest video quality even at longer distances.

    In addition to video, the system supports L/R summed audio transmission. Or you can configure the units in the field for simplex (one-way) serial transmit-only distribution communications.

    Plus, the CAT5 Video & Mono Audio/Serial Transmit Distribution System supports easy, external configuration of DC restoration and AC coupling as well as DDC/EDID modes, particularly when integrating sources running Windows Vista®.

    The receiver featured here works with the separately available single-port or 4-port transmitter to extend signals up to 1200 feet (356.8 m) over standard, non-networked UTP cable (other models, including one for 2000-foot [609.6-m] extensions, are also available).

    Even better, because the receiver features built-in skew compensation, it can even be used in applications where you don’t have skew-free copper wiring. The receiver supports skew compensation up to 65 ns. To adjust skew-delay, just turn a knob and observe the colored LEDs indicating which color is being delayed. The same knob, when pressed, cycles from skew adjustment to cable EQ, which you can use to adjust for your specific UTP cable length.

    What’s more, the receiver is daisychainable. You can use its second RJ-45 port to link to 11 other receivers for additional video displays*.

    And even though the transmitter features an HD15 VGA video connector, it can be used to output any type of analog video—no reconfiguration of the receiver is necessary! Just add optional VGA to RGB Converters or adapter cables for S-Video, Component, or Composite video on both transmitter and receiver sides.

    Also available: a 1 x 9 distribution amp and a full-matrix 16 x 16 UTP switch for use with the receivers of your choice.

    Need to send pollable serial data, not just transmit-only serial signals? Then see our CAT5 Video, Stereo Audio, & Pollable Data Distribution System components (AC1220A–AC1224A). Along with VGA video, they distribute stereo audio to remotely connected speakers and addressable serial data for independent control of one or more connected displays. They’re ideal for controlling digital signage remotely.

    NOTE: Not designed for Ethernet network operation.

    * Although the system supports 12 daisychained receivers, we recommend using a maximum of four receivers in a daisychain configuration.



    • Technical Specifications for CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 1200-ft. with Skew Comp:

    Cable Supported — Category 5, 5e, and CAT6 shielded twisted-pair (STP) or unshielded twisted-pair (UTP)
    Resolution (Maximum) — 1920 x 1200 (WUXGA)
    CE Approval — Yes
    RoHS — Yes
    Connectors — Video out: (1) HD15 F (VGA);
    Audio or serial out: (1) 4-pin Phoenix (left/right summed mono audio or simplex transmit-only serial);
    Daisychain port: (1) RJ-45;
    Interconnect: (1) RJ-45
    Operating Environment — Temperature: 32 to 104° F (0 to 40° C);
    Humidity: Up to 80%, noncondensing
    Power — Input: 100–240 VAC, 50–60 Hz, autosensing, external;
    Output: +5 VDC; Consumption: 6 Watts (maximum)
    Size — 1.2"H x 5.5"W x 3.6"D (3.1 x 14 x 9.1 cm)
    Weight — 1 lb. (0.5 kg)

    This product works with:
  • CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter, 1-Port (AC1000A-R3)
  • CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter, 4-Port (AC1003A-R2)

    For distributing signals to up to nine locations, order:
  • CAT5 Video Distribution System 1 x 9 Video Distribution Amp (AC1050A)

    To switch a number of sources for output to a number of screens, order:
  • CAT5 Video Distribution System Full-Matrix Switch, 16 x 16 (AC1051A)

    To convert VGA RGBHV signals to RGB sync signals, order at least two converters (for local and remote connections):
  • VGA to RGB Converter (AC312A)

    To connect S-Video, Component, or Composite video to a VGA port, order at least two adapter cables (for local and remote connections):
  • S-Video to HD15 Cable, 6-ft. (1.8-m) (AC1067A)
  • (3) RCA to HD15 Cable, 3-ft. (0.9-m) (AC1068A)

    Rackmount multiple receiver(s) with:
  • 1U Rackmount Kit for (3) Units (AC1011)
    Questions? Contact our FREE Tech Support.

    NOTE: In addition to the AC1000A-R3 and AC1003A-R2, this receiver is compatible with legacy/discontinued transmitters in the Multi and MultiView extender lines. For details about compatible units, contact Black Box Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
