Video & Multimedia > Extenders

click photo to enlarge

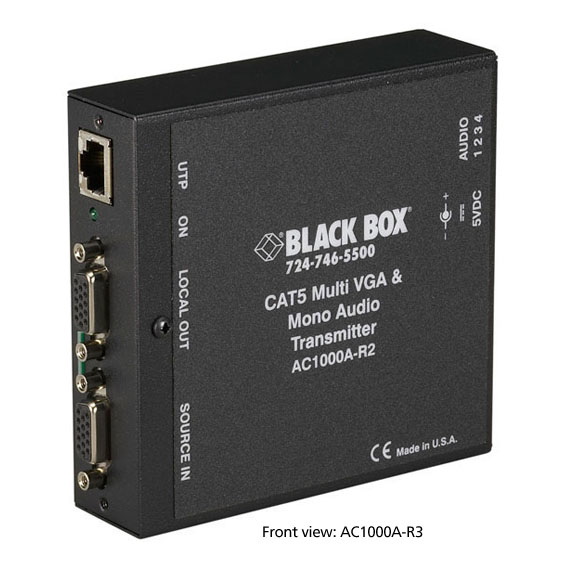

AC1000A-R3

Photo may show similar product

Other views

CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter, 1-Port

Extend hi-res VGA video with audio or serial data as far as 2000 feet over ordinary CAT5 cable.

AC1000A-R3

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Distribute VGA video and either analog audio or transmit-only serial data to remote screens over CAT5 cable.
  • Supports distances up to 2000 feet (606.9 m), depending on the compatible receiver ordered.
  • Great for many digital signage applications, including corporate campuses, retail, restaurants, churches, conference centers, colleges, and more!

  • Description

    CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter, 1-Port


    Quick Facts

  • Distribute VGA video and either analog audio or transmit-only serial data to remote screens over CAT5 cable.
  • Supports distances up to 2000 feet (606.9 m), depending on the compatible receiver ordered.
  • Great for many digital signage applications, including corporate campuses, retail, restaurants, churches, conference centers, colleges, and more!

  • Further Details

  • Supports resolutions up to 1920 x 1200 and DDC/EDID communications.
  • All of the system’s receivers except for the AC1001A-R2 can be daisychained (12 receivers total in a chain).
  • No software needed. The system’s units operate independently of your network.
  • Has an HD15 VGA video input but works with any type of analog video.
  • Samples and recreates sync information accurately for optimum video display.
  • Also has VGA output for local video monitoring.
  • Durable steel design.

    Need to send high-resolution VGA video along with either mono summed audio or transmit-only serial data long distances? You’ve found your solution with our CAT5 Video & Mono Audio/Serial Transmit Distribution System.

    The system’s components are inexpensive, and they use ordinary CAT5 cable (but can be used with CAT5e and CAT6 cables, too) while maintaining the highest video quality even at longer distances.

    In addition to video, the system supports L/R summed audio transmission. Or you can configure the transmitter in the field for simplex (one-way) serial transmit-only distribution communications.

    Plus, the CAT5 Video & Mono Audio/Serial Transmit Distribution System supports easy, external configuration of DC restoration and AC coupling as well as DDC/EDID modes, particularly when integrating sources running Windows Vista®.

    The transmitter featured here has a single RJ-45 distribution port. It connects to a single receiver over CAT5 or higher cable, and all receivers except for the AC1001A-R2 can be daisychained (for up to 12 receivers total*). We also offer a version with four RJ-45 ports (AC1003A-R2), which suits point-to-multipoint configurations (this multi-port transmitter can be connected to four receivers which, in turn, can be used for four daisychains of up to 12 receivers each, for a total of 48 receivers*).

    What’s more, both transmitter versions have a local VGA output, which you can use for either local monitoring or cascading to any another CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter for additional outputs.

    And even though the transmitters have an HD15 VGA video input, they can be used to receive input from any type of analog video—no reconfiguration of the transmitter itself is necessary! Just add optional VGA to RGB Converters or adapter cables for S-Video, Component, or Composite video on both transmit and receive sides.

    Pair your transmitter with the receiver that supports your distance requirements. All of the system’s receivers except the VGA/audio-only AC1001A-R2 receiver support unidirectional broadcast-only serial data.

    Also available: kits for mounting three units in 1U of rack space, as well as a 1 x 9 distribution amp, and a full-matrix 16 x 16 UTP switch.

    If you need to send pollable serial data instead of transmit-only serial signals, see our CAT5 Video, Stereo Audio, & Pollable Data Distribution System components (AC1220A–AC1224A). Along with VGA video, they distribute stereo audio to remotely connected speakers and addressable serial data for independent control of one or more connected displays. They’re ideal for controlling digital signage remotely.

    NOTE: Not designed for Ethernet network operation.

    * Although the system supports 12 receivers in each daisychain, we recommend using a maximum of four receivers in a daisychain configuration.



  • Technical Specifications for CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter, 1-Port:

    Cable Supported — Category 5, 5e, and CAT6 shielded twisted-pair (STP) or unshielded twisted-pair (UTP)
    Resolution (Maximum) — Receiver dependent: 1920 x 1200 (WUXGA)
    CE Approval — Yes
    RoHS — Yes
    Connectors — Video in: (1) HD15 F (VGA source);
    Video out: (1) HD15 F (local VGA monitoring/transmitter cascading);
    Audio or serial in: (1) 4-pin Phoenix (left/right summed mono audio or simplex transmit-only serial);
    Interconnect: (1) RJ-45
    Operating Environment — Temperature: 32 to 104° F (0 to 40° C);
    Humidity: Up to 80%, noncondensing
    Power — Input: 100–240 VAC, 50–60 Hz, autosensing, external;
    Output: +5 VDC; Consumption: 5 Watts (maximum)
    Size — 1.2"H x 4.2"W x 4.3"D (3.1 x 10.4 x 10.9 cm)
    Weight — 1 lb. (0.5 kg)

    This product works with:

  • CAT5 Video & Mono Audio Distribution System Receiver, Non-Daisychainable, 250-ft. (AC1001A-R2)
  • CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 600-ft. (AC1002A-R3)
  • CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 600-ft. with Skew Comp (AC1211A)
  • CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 1200-ft. with Skew Comp (AC1013A-R2)
  • CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 2000-ft. with Skew Comp (AC1014A-R2)

    For distributing signals to up to nine locations, order:
  • CAT5 Video Distribution System 1 x 9 Video Distribution Amp (AC1050A)

    To switch a number of sources for output to a number of screens, order:
  • CAT5 Video Distribution System Full-Matrix Switch, 16 x 16 (AC1051A)

    To convert VGA RGBHV signals to RGB sync signals, order at least two converters (for local and remote connections):
  • VGA to RGB Converter (AC312A)

    To connect S-Video, Component, or Composite video to a VGA port, order at least two adapter cables (for local and remote connections):
  • S-Video to HD15 Cable, 6-ft. (1.8-m) (AC1067A)
  • (3) RCA to HD15 Cable, 3-ft. (0.9-m) (AC1068A)

    Rackmount multiple transmitter(s) with:
  • 1U Rackmount Kit for (4) Units (AC1009)
  • 2U Rackmount Kit for (8) Units (AC1010)
