Video & Multimedia > Splitters

click photo to enlarge

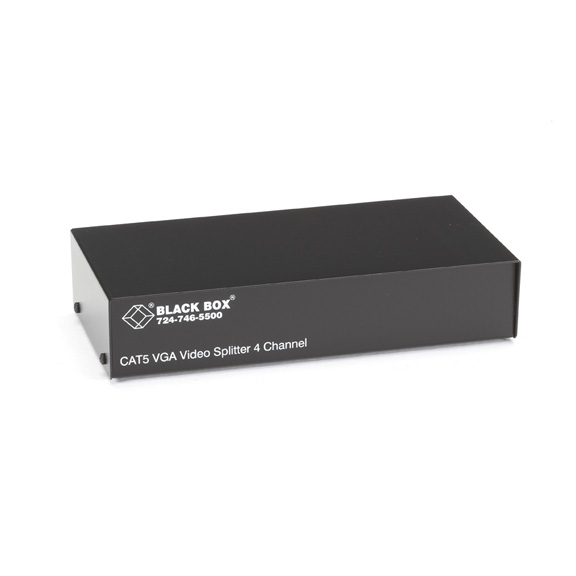

AC501A-R2

Photo may show similar product

Other views

CAT5 VGA Video Splitter, 4-Channel Host Module

Simultaneously broadcast to up to four remote monitors!

AC501A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Simultaneously broadcast a VGA image to two or four remote VGA monitors.

  • Description

    CAT5 VGA Video Splitter, 4-Channel Host Module


    Quick Facts

  • Simultaneously broadcast a VGA image to two or four remote VGA monitors.

  • Further Details

  • Pair a host module with a Standard Remote Module to transmit up to 360 feet (109.7 m) or use a Long-Range Remote Module and more than double your distance to 820 feet (249.9 m)!
  • Add Composite Adapters to broadcast Composite video sources and left/right audio instead of VGA.
  • Used with splitters, Composite Adapters enable you to broadcast video from 3 Composite sources to 6 or 12 screens.
  • Support resolutions up to 1280 x 1024.
  • Use inexpensive CAT5 UTP cable.
  • Includes (1) 5-ft. video cable.

    Broadcast data from a central VGA screen to two or four remote screens via CAT5 cable with this easy-to-install splitter. It's ideal for demonstrating products at trade shows, presenting real-time data, and training users in classroom environments.

    This product includes:
    (1) 5-ft. video cable.

    How to order:
    • First, order a CAT5 VGA Video Splitter host module with either two (AC500A-R2) or four channels (AC501A-R2).
    • Next, for each remote monitor you want to connect, order either Standard CAT5 VGA Video Splitter Modules (AC502A-R2) or Remote CAT5 VGA Video Splitter Modules (AC503A-R2).
    • For Composite video, order a Local Composite Adapter (AC512A) for the host module and a Remote Composite Adapter (AC513A) for each channel.

    This product works with:
    • Shielded CAT5 Bulk Cable (EVNSL70A)
    • Premium VGA Video Extension Cable (EVNPS05)
    Questions? Contact Tech Support.

  • Technical Specifications for CAT5 VGA Video Splitter, 4-Channel Host Module:

    Distance (Maximum) — Host Module to AC502A-R2: 360 ft. (109.7 m);
    Host Module to AC503A-R2: 820 ft. (249.9 m)
    Hardware Requirements — IBM® PC, PS/2®, Mac®, or SGI™ and compatibles; 5-pin DIN or 6-pin mini DIN keyboard; SVGA, VGA, XGA, SXGA, or mono monitor
    Resolution (Maximum) — Monitor: 1280 x 1024 (SXGA);
    Horizontal: 30–100 kHz;
    Vertical: 43–100 Hz
    CE Approval — Yes
    Connectors — AC500A-R2: Input: (1) HD15 M; Passthrough: (1) HD15 F; Interconnect: (2) RJ-45;
    AC501A-R2: Input: (1) HD15 M; Passthrough: (1) HD15 F; Interconnect: (4) RJ-45;
    Power — Splitters: 120–240 VAC, 50–60 Hz
    Size — AC500A-R2–AC501A-R2: 1.6"H x 7.7"W x 4.1"D (4.1 x 19.6 x 10.4 cm);
    This product works with:
    • Shielded CAT5 Bulk Cable (EVNSL70A)
    • Premium VGA Video Extension Cable (EVNPS05)
    Questions? Contact Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT5 VGA Video Splitter, 4-Channel Host Module:

    Manuals

    • CAT5 VGA Video Splitter
      Installation/User (1/5/2012)

    Product Data Sheets


    Connect your CAT5 VGA Video Splitter, 4-Channel Host Module with:
