EYN860A-B

Photo may show similar product

Other views

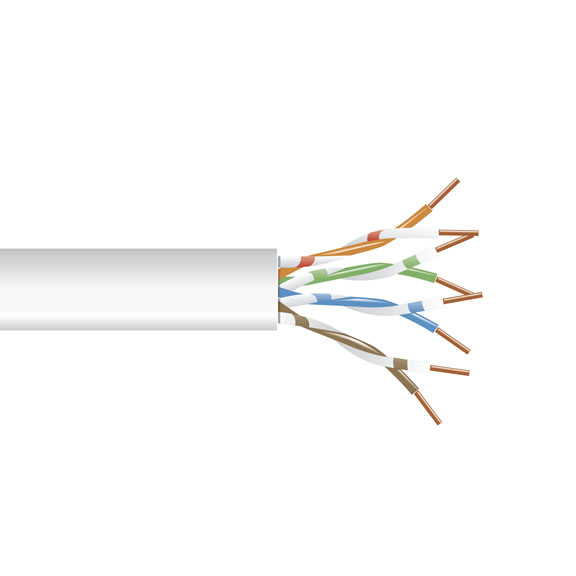

CAT5 Unshielded, Solid, 100-MHz Bulk Cable, 24 AWG, 4-Pair, Plenum, Gray, 1000-ft. (304.8-m) Box

This 100-MHz cable offers dependable performance for your long CAT5 runs.

EYN860A-B

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Supports current Category 5 specification.
  • Tested to 100 MHz!
  • Guaranteed for life!

  • Description

    CAT5 Unshielded, Solid, 100-MHz Bulk Cable, 24 AWG, 4-Pair, Plenum, Gray, 1000-ft. (304.8-m) Box


    Quick Facts

  • Supports current Category 5 specification.
  • Tested to 100 MHz!
  • Guaranteed for life!

  • Further Details

  • Solid, 24 AWG conductors for your backbone runs.
  • ETL verified to TIA-568 TSB 40A specifications.
  • Low attenuation and near-end crosstalk (NEXT) for your 100-MHz applications.
  • UL® listed and CSA approved.<.li
    Use in applications such as 10BASE-T, 100BASE-TX, 100BASE-VG, and 155-Mbps ATM.

  • Technical Specifications for CAT5 Unshielded, Solid, 100-MHz Bulk Cable, 24 AWG, 4-Pair, Plenum, Gray, 1000-ft. (304.8-m) Box:

    Attenuation (Maximum) 22 dB/100 m at 100 MHz
    Cable Type 2- or 4-pair UTP
    Capacitance (Nominal) 15 pF/ft. at 1 KHz
    Conductors 24 AWG solid, bare annealed copper
    Impedance 100 ± 15 ohms at 100 MHz
    NEXT (Minimum) 32 dB at 100 MHz
    SRL (Minimum) 16 dB at 100 MHz
    Velocity of Propagation (Nominal) PVC: 70%;
    Plenum: 72%
    Weight PVC: 29 lb./1000 ft. (13.2 kg/304.8 m);
    Plenum: 24.4 lb./1000 ft. (11.1 kg/304.8 m)
    NOTE: Cable comes on spools or reels in boxes.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT5 Unshielded, Solid, 100-MHz Bulk Cable, 24 AWG, 4-Pair, Plenum, Gray, 1000-ft. (304.8-m) Box:


    Connect your CAT5 Unshielded, Solid, 100-MHz Bulk Cable, 24 AWG, 4-Pair, Plenum, Gray, 1000-ft. (304.8-m) Box with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $258.95

    Quantity Available: 123

    Quantity

    Warranty

    Total

    (123 available)

    Shipping Info

    Weight: 27.55 lbs.
    HxWxD: 13.3 x 9.5 x 13.4 in.

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
