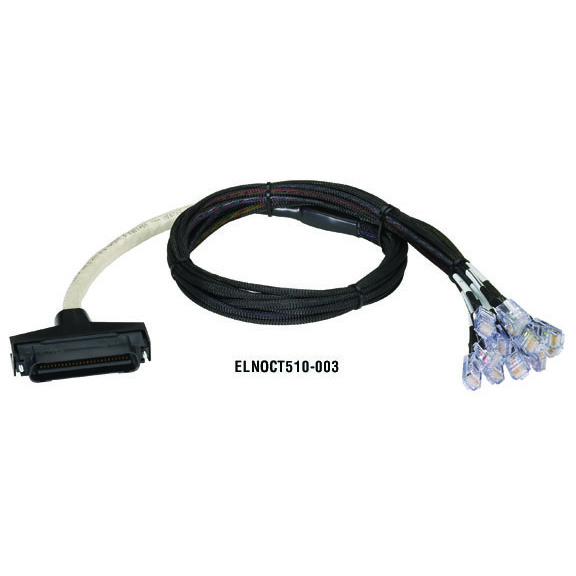

CAT5 Telco Octopus Cable, 6-ft. (1.8-m)

Make quick telco connections for zone cabling and data centers.

ELNOCT510-006

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Elminate the need to punch down multiple conductors.
  • Guaranteed for life!

  • Description

    CAT5 Telco Octopus Cable, PVC, (1) 90° 50-Pin Telco Male to (12) RJ-45, Pins 1–3, 6 Active, 6-ft. (1.8-m)


    Quick Facts

  • Elminate the need to punch down multiple conductors.
  • Guaranteed for life!

  • Further Details

  • Use in your wiring closet to extend data or voice circuits from 25-pair patch panels or punchdowns.
  • Ideal for use in 100-MHz applications, such as 10BASE-T, TP-PMD, ATM, and ISDN.
  • Meets CAT5 specifications.
  • Features one 50-pin 180º rear-exit telco connector to 12 RJ-45 connectors.
  • The 180º telco connector enables it to fit in tight spots.
  • Features solid, 24 AWG conductors.


  • Technical Specifications for CAT5 Telco Octopus Cable, 6-ft. (1.8-m):

    Attenuation Nominal: 20.2 dB/100 m at 100 MHz;
    Maximum: 22 dB/100 m at 100 MHz
    Conductors 24 AWG, bare copper, 0.020" nominal diameter
    DC Resistance 9.38 ohms/100 m, maximum
    Impedance 100 ± 15 ohms
    Insulation HDPE
    Mutual Capacitance 5.6 nF/100 m, nominal
    PS-NEXT Worst case: 32 dB at 100 MHz
    Velocity of Propagation 75% nominal
    NOTE: For pinning, see the Diagram.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
