Infrastructure Hardware > Patch Panels

click photo to enlarge

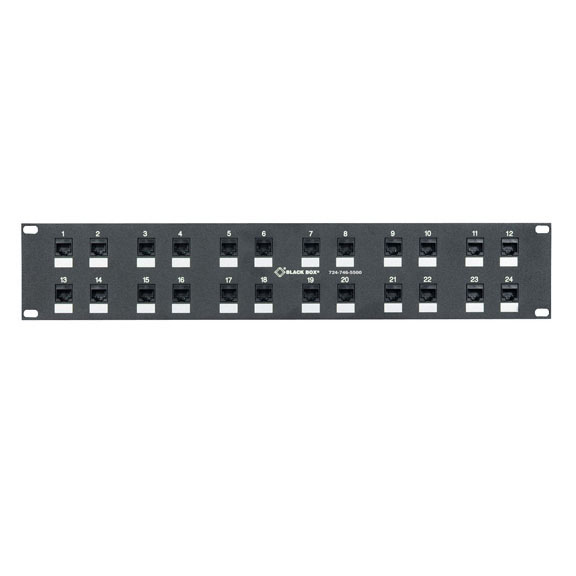

JSM110A

Photo may show similar product

Other views

CAT5 24-Port Protected Patch Panel, 19", 2U, T568B Wiring

Built-in data line protection guards against lightning strikes and electrostatic discharge.

JSM110A


TEN YEAR WARRANTY Warranty

Product Highlights

  • The essential patch panel for mission-critical applications!
  • Each port features surge protection on all wires.
  • Guaranteed for life!

  • Description

    CAT5 24-Port Protected Patch Panel, 19", 2U, T568B Wiring


    Quick Facts

  • The essential patch panel for mission-critical applications!
  • Each port features surge protection on all wires.
  • Guaranteed for life!

  • Further Details

  • Super convenient—faster and easier than installing individual data-line protectors.
  • Designed for high-speed data, voice, and multimedia applications.
  • Meets or exceeds TIA/EIA-T568-A Category 5 standards.
  • Paired punchdown sequence enables pair twists within 1/2" of termination.
  • Features avalanche diode technology.
  • Fits standard 19" racks and is 2U high.
  • Each module is mounted on a replaceable printed circuit board.

  • Save money—instead of buying multiple data-line protectors, get everything you need in one patch panel.

    Here’s your chance to save money and time while making sure your CAT5 lines are protected from damaging surges and spikes. The BLACK BOX® CAT5 Protected Patch Panel incorporates a patch panel and 24 data-line protectors in one!

    With this two-in-one panel, you’ll get a top-quality, 24-port CAT5 patch panel designed for mission-critical, high-speed data, voice, and multimedia applications. It’s compatible with networks such as 10BASE-T, 100BASE-T, and 155-Mbps ATM, and it exceeds EIA/TIA 568 standards.

    The panel features 24 tin-plated 110 IDC connectors mated to RJ-45 connectors.

    You’ll also get worry-free data-line protection from lightning, electrostatic discharge (ESD), and other power anomalies. In one step, you have the data-line protection you need to keep your system and data safe. And you save a lot of time by installing only 1 panel instead of 24 separate protectors.

    The panel provides bidirectional clamping for maximum power protection. It features extremely sensitive, avalanche diode technology and a fail-safe mode that protects equipment even if there’s a surge overload. It’s self-resetting up to 1500 watts.

    With this panel, your system will be up and running when users need it. Less downtime means less frustration for you. You’ll save time and money, and you’ll enjoy peace of mind.


    Technical Specifications for CAT5 24-Port Protected Patch Panel, 19", 2U, T568B Wiring:

    Clamping Voltage — 12 volts
    Response Time — <10 ns
    Size — 3.5"H (2U) x 19"W x 1.3"D (8.9 x 48.3 x 3.3 cm)
    Weight — 1.4 lb. (0.6 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for CAT5 24-Port Protected Patch Panel, 19", 2U, T568B Wiring:


    Connect your CAT5 24-Port Protected Patch Panel, 19", 2U, T568B Wiring with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A TEN YEAR WARRANTY warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
