Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

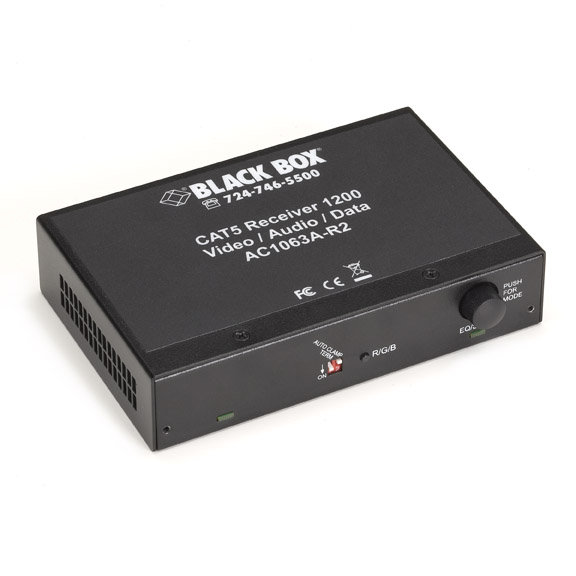

AC1063A

Photo may show similar product

Other views

CAT5 Multi Video/Audio/Data System Receivers with Full-Duplex RS-232 and Stereo Audio

Use these receivers with CAT5 Video/Audio/Data System Transmitter (Universal), Daisychainable.

AC1063A


One year Warranty

Product Highlights

  • Send high-resolution video, stereo audio, and full-duplex data up to 1500 feet (457.2 m).
  • System includes models for point-to-point and multipoint configurations.
  • Dedicated UTP cable operates independently of your network.

  • Description

    CAT5 Video/Audio/Data System Receivers with Full-Duplex RS-232 and Stereo Audio, Single-Port, Non-Daisychainable, RGBHV, 1000-ft. (304.8-m)


    Quick Facts

  • Send high-resolution video, stereo audio, and full-duplex data up to 1500 feet (457.2 m).
  • System includes models for point-to-point and multipoint configurations.
  • Dedicated UTP cable operates independently of your network.

  • Further Details

  • Available in models that support RGBHV or in models with S-Video, Component, and Composite video support.
  • Great for a wide range of applications, including retail stores, restaurants, churches, conference centers, colleges, and many more!
  • Daisychainable models reduce transmitter count and cost per source.
  • Flexible design and rugged construction for a variety of configurations and environments.

  • Do you need to send high-resolution video, stereo audio, and full-duplex serial data over UTP cable? You’ve found your solution with our CAT5 Multi Video/Audio/Data System. This signal distribution system is flexible, reliable, and expertly designed for a wide variety of applications.

    Distance
    How far do you need to go?

    The CAT5 Multi Video/Audio/Data System’s RGBHV receivers support distances of 500 feet (152.4 m), 1000 feet (304.8 m), and 1500 feet (457.2 m), depending on the model. S-Video, Component, and Composite receivers support distances up to 500 feet (152.4 m).

    Design
    Depending on the model, this system can handle RGBHV, S-Video, Component, and Composite video signals along with stereo audio and serial data.

    Choose a model with a single video port, or if you need to daisychain your receivers, get one with two video outputs.

    To connect S-Video, Component, or Composite video, order the AC1065A or AC1066A, then add one of the break-out cables (AC1067A–AC1068A).

    You can send audio to either embedded or separately powered speakers, and they feature stereo audio for clear signal transfers.

    Built-in skew compensation enables you to correct video signaling differences.

    If you use daisychainable models (AC1062A, AC1063A-DA–AC1064A-DA, AC1066A), you can daisychain up to 12 receivers from a single transmitter, which saves money. You can even daisychain the transmitter.

    What’s more, this system is easy to integrate—the units are operating system independent and don’t require any software. Just plug them in and get started!

    Applications
    The CAT5 Multi Video/Audio/Data System is engineered for a wide range of applications.

    It’s perfect for touch screen applications when you need to have your PC in one place and your touch screens in another, such as conference centers, sports complexes, colleges, and any other facility where you need to send and receive video, audio, and data.

    You can configure the system as point-to-point for touch screen applications like a single kiosk or as point-to-multipoint for applications in which you need to control screens, power, or volume.

    Questions?
    To learn more about what the CAT5 Multi Video/Audio/Data System can do for your application, contact our FREE Tech Support.


    Technical Specifications for CAT5 Multi Video/Audio/Data System Receivers with Full-Duplex RS-232 and Stereo Audio:

    Distance and Resolution (Maximum) —
    AC1061A–AC1062A, AC1065A–AC1066A: 500 ft. (152.4 m), 2048 x 1536 at 70 Hz;
    AC1063A, AC1063A-DA: 1000 ft. (304.8 m), 1920 x 1440 at 70 Hz;
    AC1064A, AC1064A-DA: 1500 ft. (457.2 m); 1600 x 1200 at 60 Hz
    Enclosure — Steel
    Operating Environment — Temperature: All: 32 to 104º F (0 to 40º C);
    Humidity: Up to 80% noncondensing
    CE Approval — Yes
    Connectors — AC1061A, AC1065A: (1) HD15 F, (1) RJ-45, (1) DB9 M, (1) 4-position captive screw (audio), (1) power;
    AC1062A, AC1066A: (1) HD15 F, (2) RJ-45, (1) DB9 M, (1) 4-position captive screw (audio), (1) power;
    AC1063A–AC1064A: (1) HD15 F, (1) RJ-45, (1) DB9 M, (1) 3.5-mm audio, (1) power
    AC1063A-DA–AC1064A-DA: (1) HD15 F, (2) RJ-45, (1) DB9 M, (1) 3.5-mm audio, (1) power
    Power — Input: 100–250 VAC, 50–60 Hz, autosensing;
    Output: 5.0 V, 2500 mA
    Size — AC1061A–AC1062A: 1.2"H x 5.5"W x 4.1"D (3 x 14 x 10.4 cm);
    AC1063A, AC1063A-DA, AC1064A, AC1064A-DA, AC1065A–AC1066A: 1.2"H x 5.6"W x 6.2"D (3 x 14.2 x 15.7 cm)
    Weight — AC1061A–AC1062A: 1 lb. (0.5 kg);
    AC1063A, AC1063A-DA, AC1064A, AC1064A-DA, AC1065A–AC1066A: 1.4 lb. (0.6 kg)
    NOTE: The UTP cabling used with this product must be pinned according to the TIA-EIA T568B wiring specification. The units in the system are not designed to operate through an Ethernet network.

    NOTE: To send video, audio, and serial data at distances greater that 1500 feet (457.2 m), contact our FREE Tech Support.

    These products work with:
  • CAT5 Multi Video/Audio/Data System Transmitter (Universal), Daisychainable (AC1060A)
  • S-Video to HD15 Cable (AC1067A)
  • RCA (3) to HD15 Cable (AC1068A)
  • CAT5 Multi Video System Rackmount Brackets for Single Transmitter or Single/Dual Receiver (AC1008–AC1010)
  • CAT5 Multi Video System Rackmount Brackets for Quad Transmitters (AC1011–AC1012)
  • CAT5 Multi Video Distribution Amp and Switch (AC1050A–AC1051A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
