Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

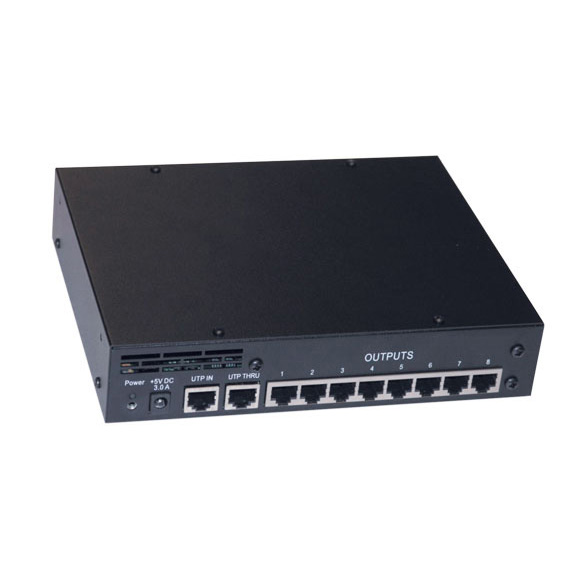

AC1050A

Photo may show similar product

Other views

CAT5 Video Distribution System 1 x 9 Video Distribution Amp

Split the RJ-45 output from a compatible transmitter for extensions to multiple screens.

AC1050A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • A splitter/distribution amp for point-to-multipoint UTP-based video distribution applications.
  • Also distributes analog or stereo audio or transmit-only serial data over the UTP runs.
  • Works with our CAT5 Video & Mono Audio/Serial Transmit Distribution System and CAT5 Video, Stereo Audio, & Pollable Data Distribution System* components (as well as legacy CAT5 Multi units).

  • Description

    CAT5 Video Distribution System 1 x 9 Video Distribution Amp


    Quick Facts

  • A splitter/distribution amp for point-to-multipoint UTP-based video distribution applications.
  • Also distributes analog or stereo audio or transmit-only serial data over the UTP runs.
  • Works with our CAT5 Video & Mono Audio/Serial Transmit Distribution System and CAT5 Video, Stereo Audio, & Pollable Data Distribution System* components (as well as legacy CAT5 Multi units).

  • Further Details

  • Splits the RJ-45 output from any compatible transmitter into nine RJ-45 outputs for connecting compatible receivers (or daisychain of receivers).
  • Also can be used with the CAT5 Video Distribution System Full-Matrix Switch, 16 x 16 (AC1051A) and other 1 x 9 Distribution Amps.
  • Great for distributing multimedia signals from a central room to digital signage screens in separate rooms.
  • A cost-effective solution for applications requiring ultra-clear video distribution to numerous displays or projectors.
  • Uses low-cost copper cabling for extensions, saving you the cost of running VGA and audio cabling long distances.
  • Features eight RJ-45 UTP outputs plus an RJ-45 through port for connecting another 1 x 9 Distribution Amp or a ninth receiver.
  • Use it individually, cascaded, or tiered to match your distribution requirements. Add more units as your needs change!
  • Extends video up to 2000 feet (609.9 m) when used with the AC1014A-R2 or AC1224A (or other compatible) long-distance receiver.
  • Supports the transmission of video of up to 1920 x 1200 resolutions (receiver dependent).
  • All same-source displays retain perfect sync.
  • Takes up only 1U of space.
  • Durable steel design.

    * When used with CAT5 Video, Stereo Audio, & Pollable Data Distribution System units, transmit-only serial data is supported. It will not transmit addressable duplex RS-232 signals.

    NOTE: Not designed for Ethernet network operation.



  • Technical Specifications for CAT5 Video Distribution System 1 x 9 Video Distribution Amp:

    Resolution (Maximum) — Receiver dependent: 1920 x 1200 (WUXGA)
    CE Approval — Yes
    RoHS — Yes
    Connectors — Video input: (1) RJ-45 (from compatible transmitter, switch, or second AC1050A unit);
    Video outputs: (8) RJ-45 (to compatible receivers, switches, or other AC1050A units);
    Video through port: (1) RJ-45 (to another AC1050A unit or a ninth receiver)
    Operating Environment — Temperature: 32 to 104° F (0 to 40° C);
    Humidity: Up to 80%, noncondensing
    Power — Input: 100–240 VAC, 50–60 Hz, autosensing;
    Output: 5 V regulated, + 3%, < 1.75 A
    Size — 1.75"H x 8.1"W x 6.5"D (4.4 x 20.6 x 16.5 cm)
    Weight — 2.2 lb. (1 kg)

    This product works with:
  • CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter, 1-Port (AC1000A-R3)
  • CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter, 4-Port (AC1003A-R2)
  • CAT5 Video & Mono Audio Distribution System Receiver, Non-Daisychainable, 250-ft. (AC1001A-R2)
  • CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 600-ft. (AC1002A-R3)
  • CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 600-ft. with Skew Comp (AC1211A)
  • CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 1200-ft. with Skew Comp (AC1013A-R2)
  • CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 2000-ft. with Skew Comp (AC1014A-R2)
  • CAT5 Video, Stereo Audio, & Pollable Data Distribution System Transmitter, 1-Port (AC1220A)
  • CAT5 Video, Stereo Audio, & Pollable Data Distribution System Receiver, Daisychainable, 600-ft. (AC1221A)
  • CAT5 Video, Stereo Audio, & Pollable Data Dlistribution System Receiver, Daisychainable, 600-ft. with Skew Comp (AC1222A)
  • CAT5 Video, Stereo Audio, & Pollable Data Distribution System Receiver, Daisychainable, 1200-ft. with Skew Comp (AC1223A)
  • CAT5 Video, Stereo Audio, & Pollable Data Distribution System Receiver, Daisychainable, 2000-ft. with Skew Comp (AC1224A)
  • CAT5 Video Distribution System Full-Matrix Switch, 16 x 16 (AC1051A)
    It also works with legacy Multi and MultiView extenders from Black Box. For details, contact Black Box Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for CAT5 Video Distribution System 1 x 9 Video Distribution Amp:

    Manuals

    • CAT5 Multi Video System 1 x 9 Video Distribution Amp
      Installation/User Guide (4/5/2012)

    Product Data Sheets


    Connect your CAT5 Video Distribution System 1 x 9 Video Distribution Amp with:

    Accessory: AC1013A-R2

    CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 1200-ft. with Skew Comp

    CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 1200-ft. with Skew Comp

    Accessory: AC1001A-R2

    CAT5 Video & Mono Audio Distribution System Receiver, Non-Daisychainable, 250-ft.

    CAT5 Video & Mono Audio Distribution System Receiver, Non-Daisychainable, 250-ft.

    Accessory: AC1003A

    CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter, 4-Port

    CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter, 4-Port

    Accessory: AC1000A-R3

    CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter, 1-Port

    CAT5 Video & Mono Audio/Serial Transmit Distribution System Transmitter, 1-Port

    Accessory: AC1002A-R3

    CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 600-ft.

    CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 600-ft.

    Accessory: AC1014A-R2

    CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 2000-ft. with Skew Comp

    CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 2000-ft. with Skew Comp

    Accessory: AC1222A

    CAT5 Video, Stereo Audio, & Pollable Data Distribution System Receiver, Daisychainable, 600-ft. with Skew Comp

    CAT5 Video, Stereo Audio, & Pollable Data Distribution System Receiver, Daisychainable, 600-ft. with Skew Comp

    Accessory: AC1220A

    CAT5 Video, Stereo Audio, & Pollable Data Distribution System Transmitter, 1-Port

    CAT5 Video, Stereo Audio, & Pollable Data Distribution System Transmitter, 1-Port

    Accessory: AC1211A

    CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 600-ft. with Skew Comp

    CAT5 Video & Mono Audio or Transmit-Only Serial Distribution System Receiver, Daisychainable, 600-ft. with Skew Comp

    Accessory: AC1223A

    CAT5 Video, Stereo Audio, & Pollable Data Distribution System Receiver, Daisychainable, 1200-ft. with Skew Comp

    CAT5 Video, Stereo Audio, & Pollable Data Distribution System Receiver, Daisychainable, 1200-ft. with Skew Comp
