Bulk Token Ring Cables, 1000-ft. (304.8-m)

For Token Ring, broadband video, and CDDI.

EVN009A-1000

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • 150-ohm shielded twisted pair (STP) cable.
  • Solid conductor.
  • Guaranteed for life!


  • Description

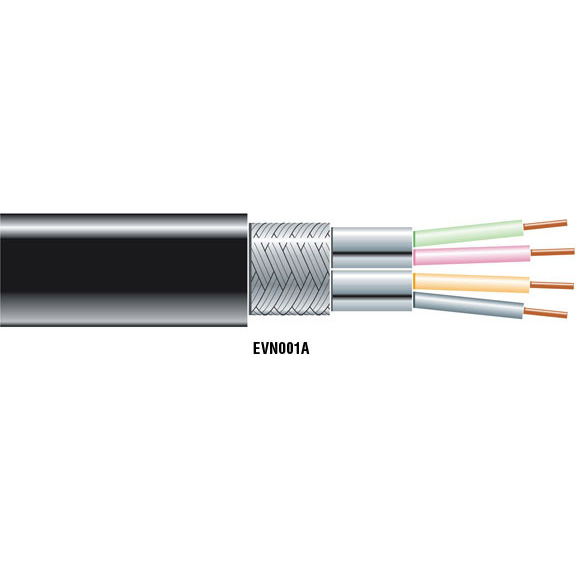

    Token Ring Type A Bulk Cable (IEEE 802.5)/150-Ohm Shielded Twisted Pair (STP), Type 1A—4 Conductors (2 Pairs), PVC, 1000-ft. (304.8-m)


    Quick Facts

  • 150-ohm shielded twisted pair (STP) cable.
  • Solid conductor.
  • Guaranteed for life!

  • Further Details



    Technical Specifications for Bulk Token Ring Cables, 1000-ft. (304.8-m):

    "
    Attenuation At 100 MHz, 37.5 dB/1000 ft.
    Capacitance 8.5 pF/ft. (27.9 pF/m)
    Conductor Gauge EVN005A: 26 AWG;
    All others: 22 AWG
    Conductor Material Solid copper
    Construction 2 shielded twisted pairs
    Jacket Material EVN001A, EVN005A, EVN009A: PVC;
    EVN002A, EVN010A: PVC alloy
    Maximum Outside Diameter (Nominal) EVN001A: 0.47" (11.9 mm);
    EVN002A: 0.50" (12.7 mm);
    EVN005A: 0.39" (9.9 mm);
    EVN009A: 0.33" (8.4 mm);
    EVN010A: 0.30" (7.6 mm)
    NEXT At 100 MHz, 38.5 dB/1000 ft.
    Nominal Cable Weight 100 lb./1000 ft.
    Velocity of Propagation 78%
    NOTE: Other cables are available. If you don’t see what you need, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
