Cabinets & Racks > Full Size IT Cabinets

click photo to enlarge

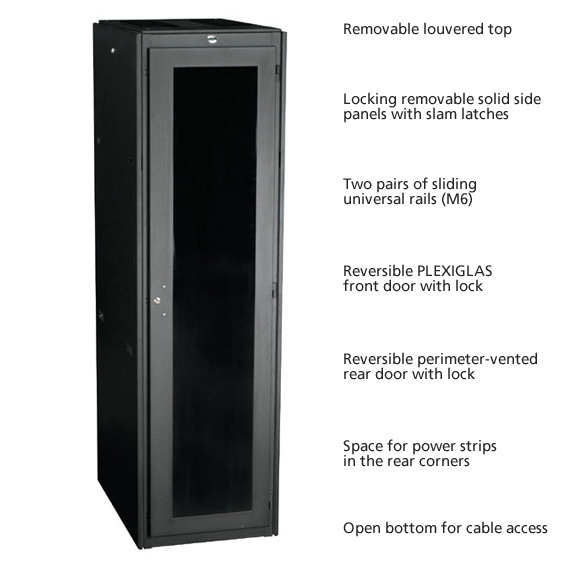

RM270A

Photo may show similar product

Other views

Broadcast and Security Cabinet

The safe and sound way to store A/V equipment.

RM270A


Lifetime Warranty

Product Highlights

  • Cost-effective enclosure for audio, video, broadcast, communications, and security equipment.
  • Holds up to 1000 pounds!
  • Open bottom with provisions for bolting to the floor for stability.
  • Locking removable solid side panels with slam latches.
  • Guaranteed for life!

  • Description

    Broadcast and Security Cabinet


    Quick Facts

  • Cost-effective enclosure for audio, video, broadcast, communications, and security equipment.
  • Holds up to 1000 pounds!
  • Open bottom with provisions for bolting to the floor for stability.
  • Locking removable solid side panels with slam latches.
  • Guaranteed for life!

  • Further Details

  • Reversible perimeter-vented rear door with lock.
  • Reversible PLEXIGLAS® front door with lock.
  • Two pairs of standard 19" EIA 310-D compliant M6 rails.
  • Removable louvered top with 4"-wide horseshoe knockouts.


  • This product works with:
  • Heavy-Duty Solid Shelf (RM590)
  • Fixed Vented Shelf (RM399)
  • Rackmount Sliding Vented 4-Point Shelf (36049)
  • Rackmount Fixed Vented 4-Point Shelf (36048)
  • Heavy-Duty Sliding Adjustable Shelf (RMT411)
  • 19" Sliding, Pivoting Keyboard Tray with Mouse Tray (RM385)
  • 19" Rackmount Drawer with Writing Surface (RM595)
  • Custom Cabinet Handles (RM622)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Broadcast and Security Cabinet:

    Exterior Height — 84" (213.4 cm)
    Exterior Width — 24" (61 cm)
    Exterior Depth — 36" (91.4 cm)
    Frame — 16-gauge steel
    Sides — 18-gauge steel
    Doors — 16-gauge steel
    Corner Posts — 16-gauge steel
    Mounting Rails — M6, 12-gauge steel
    Rack Spaces — 44U
    Capacity — 1000 lb. (453.6 kg)
    Weight — 300 lb. (136.1 kg)
    This product works with:
  • Heavy-Duty Solid Shelf (RM590)
  • Fixed Vented Shelf (RM399)
  • Rackmount Sliding Vented 4-Point Shelf (36049)
  • Rackmount Fixed Vented 4-Point Shelf (36048)
  • Heavy-Duty Sliding Adjustable Shelf (RMT411)
  • 19" Sliding, Pivoting Keyboard Tray with Mouse Tray (RM385)
  • 19" Rackmount Drawer with Writing Surface (RM595)
  • Custom Cabinet Handles (RM622)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Broadcast and Security Cabinet:


    Connect your Broadcast and Security Cabinet with:

    Accessory: RM399

    Elite Server-Mount Cabinet Fixed Vented Server Shelf, 22 1/4"D, for 19" Rails

    Elite Server-Mount Cabinet Fixed Vented Server Shelf, 22 1/4"D, for 19" Rails

    Accessory: RMT411

    Heavy-Duty Sliding Adjustable Shelf, 17 1/2"W x 29"D, 125-lb. Capacity

    Heavy-Duty Sliding Adjustable Shelf, 17 1/2"W x 29"D, 125-lb. Capacity

    Accessory: RM385

    19" Sliding Pivoting Keyboard Tray with Mouse Tray, 20.6"W x 9.5"D

    19" Sliding Pivoting Keyboard Tray with Mouse Tray, 20.6"W x 9.5"D

    Accessory: RM595

    Rackmount Drawer with Writing Surface, 6.5"H x 16"W x 14 1/2"D

    Elite Server-Mount Cabinet Accessories, Rackmount Drawer with Writing Surface, for 19" Rails, 6.5"H x 16"W x 14 1/2"D

    Accessory: RM590

    Elite Server-Mount Cabinet Heavy-Duty Solid Shelf, 17"W x 20.75"D, 300-lb. Capacity

    Elite Server-Mount Cabinet Accessories, Heavy-Duty Solid Shelf, for 19" Rails, 17" W x 20.75" D

    Accessory: 36048

    Elite Server-Mount Cabinet 4-Point Shelf, Fixed, Vented, 17 1/2"W x 24"D

    Elite Server-Mount Cabinet 4-Point Shelf, Fixed, Vented, 17 1/2"W x 24"D

    Accessory: RM622

    3-Digit Combination Custom Cabinet Handle

    3-Digit Combination Custom Cabinet Handle
