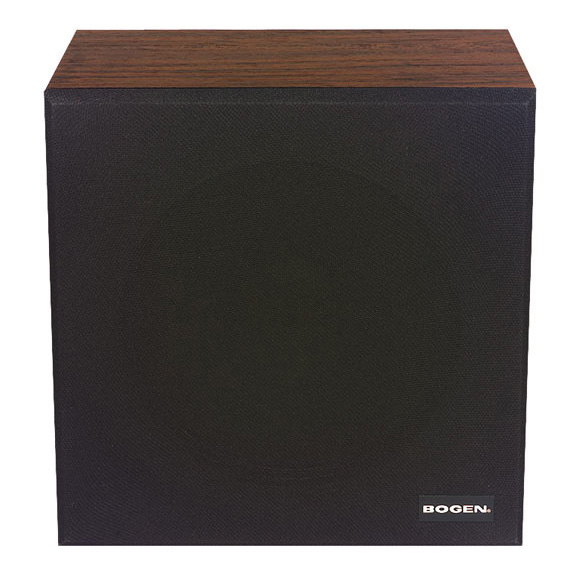

Bogen Wall Baffle Loudspeaker, 25-V Transformer

This speaker provides excellent sound and trouble-free operation.

WBS810T725

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Includes 8" cone speaker for excellent audio quality.
  • Constructed of 3⁄8" particle board with a walnut vinyl finish.
  • Sloping front provides extra downward sound dispersion.
  • Preassembled for faster installation.
  • Features a 10-ounce (28-g) ceramic magnet.


  • Description

    Bogen Wall Baffle Loudspeaker, 25-V Transformer


    Quick Facts

  • Includes 8" cone speaker for excellent audio quality.
  • Constructed of 3⁄8" particle board with a walnut vinyl finish.
  • Sloping front provides extra downward sound dispersion.
  • Preassembled for faster installation.
  • Features a 10-ounce (28-g) ceramic magnet.

  • Further Details

  • Includes a transformer for matching the 8-ohm loudspeaker to a 25- or 70-volt line.
  • Features six power tap wattages: 4, 2, 1, 0.5, 0.25, and 0.125.
  • Transformer is premounted and wired.


  • Technical Specifications for Bogen Wall Baffle Loudspeaker, 25-V Transformer:

    Axial Sensitivity 96 dB at 4 ft. (1.2 m) with 1-watt input
    Frequency Response 70 Hz to 15 kHz
    Voice Coil Diameter 1" (2.54 cm)
    Voice Coil Impedance 8 ohms
    Power 25- or 70-volt transformer; primary and secondary leads are stripped and tinned and are 6" (15.2 cm) long
    Size Cone Speaker: 8" diameter (20.3 cm);
    Wall Baffle: Top: 9.5"H x 9.5"W x 5.25"D (24.1 x 24.1 x 13.3 cm); Bottom: 3.25"D (8.3 cm)
    Weight 2.5 lb. (1.1 kg)
    Warranty 90 days


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Bogen Wall Baffle Loudspeaker, 25-V Transformer:


    Connect your Bogen Wall Baffle Loudspeaker, 25-V Transformer with:
