Premises Security > Intercom & Paging

click photo to enlarge

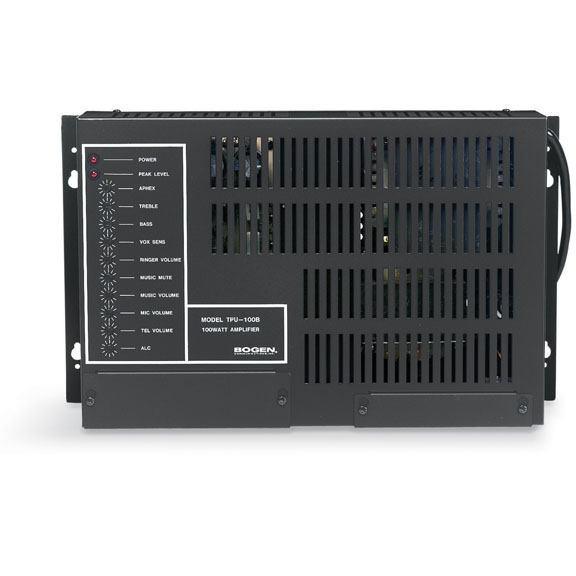

TPU100B

Photo may show similar product

Other views

Bogen Telephone Paging Amplifier, 100-Watt

Sound choices for telephone and microphone paging systems.

TPU100B


90 DAYS Warranty

Product Highlights

  • Get the most from your telephone and microphone paging systems.
  • Automatic output leveling compensates for varying voice levels.
  • Built-in night ringer alerts personnel to calls during non-business hours.

  • Description

    Bogen Telephone Paging Amplifier, 100-Watt


    Quick Facts

  • Get the most from your telephone and microphone paging systems.
  • Automatic output leveling compensates for varying voice levels.
  • Built-in night ringer alerts personnel to calls during non-business hours.

  • Further Details

  • Includes controls for page, music, and night ringer volumes; music mute; Aphex® Aural Exciter; bass; and treble.
  • Aphex® Aural Exciter increases intelligibility and improves perceived loudness.
  • VOX sensitivity level control eliminates transmission of background noise when paging from a telephone.
  • Mute background music automatically when paging.
  • The voice-activated, variable-level music mute fades back after a page.
  • Connect a background music source through an RCA jack or screw terminals.
  • To double the number of inputs and outputs, bridge two amplifiers.
  • UL® and CSA listed.
  • Easy installation and maintenance.
  • Wallmountable or you can rackmount them with the optional accessory kit. For details, contact our FREE Tech Support.


  • Technical Specifications for Bogen Telephone Paging Amplifier, 100-Watt :

    Amp Channels — 1
    Controls — Aphex, Treble, Bass, Vox Sens, Ringer Volume, Variable Mute, Auto Mute, Music Mute, Manual Mute, Music Volume, Mic Volume, Tel Volume, Automatic Leveling
    Distortion — Less than 1%
    Frequency Response — 70 Hz to 15 kHz + 1 db
    Hum and Noise — Music and Telephone: -70 dB;
    Microphone: –55 dB
    Inputs — Telephone: 600-ohm balanced line, transformer isolated;
    Music: (1) Hi-Z source, RCA jacks or screw terminals;
    Microphone: (1) Lo-Z balanced, screw terminal;
    Music Mute: During a mic page;
    Contact Ring: Sounds night ringer when customer-supplied dry contacts are closed;
    Telephone Ring: Sounds night ringer in response to 90 V signal;
    Bridging: Permits bridging of two amplifiers
    Overload Protection — 120 VAC circuit breaker;
    TPU35B: 1.0 A;
    TPU100B: 2.5 A
    Sensitivity — Music: 85 m V;
    Telephone: -20 dB;
    Microphone: -600uV
    Speaker Outputs — 70V, 25V, 25 VCT, 16 ohm
    Telephone Input — (1) 600-ohm Balanced
    Indicators — LEDs: Peak Level, Power
    Power — 120 V, 60 Hz; AC Line Draw, full-rated power at 120-VAC line voltage:
    TPU35B: 0.75 A;
    TPU100B: 2 A
    Size — 8.4"H x 14.9"W x 3.6"D (21.3 x 37.8 x 9.1 cm)
    Weight — Shipping: TPU35B: 16 lb. (7.3 kg);
    TPU100B: 21 lb. (9.5 kg)
    Warranty — 90 days


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Bogen Telephone Paging Amplifier, 100-Watt :


    Connect your Bogen Telephone Paging Amplifier, 100-Watt with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A 90 DAYS warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    Bogen Telephone Paging Amplifier, 100-Watt TPU100B $737.95

    Bogen Paging Amplifers, 35-Watt TPU35B $599.95
