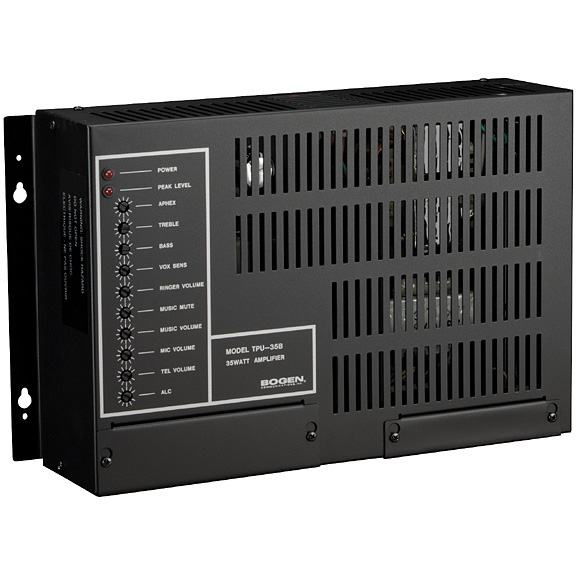

TPU35B

Photo may show similar product

Other views

Bogen Paging Amplifers, 35-Watt

Sound choices for telephone and microphone paging systems.

TPU35B

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Automatic output leveling compensates for varying voice levels.
  • Built-in night ringer alerts personnel to calls during non-business hours.

  • Description

    Bogen Telephone Paging Amplifiers, 35-Watt


    Quick Facts

  • Automatic output leveling compensates for varying voice levels.
  • Built-in night ringer alerts personnel to calls during non-business hours.

  • Further Details

  • Includes controls for page, music, and night ringer volumes; music mute; Aphex® Aural Exciter; bass; and treble.
  • Aphex® Aural Exciter increases intelligibility and improves perceived loudness.
  • VOX sensitivity level control eliminates transmission of background noise when paging from a telephone.
  • Mute background music automatically when paging.
  • The voice-activated, variable-level music mute fades back after a page.
  • Connect a background music source through an RCA jack or screw terminals.
  • To double the number of inputs and outputs, bridge two amplifiers.
  • UL® and CSA listed.
  • Easy installation and maintenance.
  • Wallmountable or you can rackmount them with the optional accessory kit. For details, contact our FREE Tech Support.


  • Technical Specifications for Bogen Paging Amplifers, 35-Watt:

    Amp Channels 1
    Controls Aphex, Treble, Bass, Vox Sens, Ringer Volume, Variable Mute, Auto Mute, Music Mute, Manual Mute, Music Volume, Mic Volume, Tel Volume, Automatic Leveling
    Distortion Less than 1%
    Frequency Response 70 Hz to 15 kHz + 1 db
    Hum and Noise Music and Telephone: -70 dB;
    Microphone: –55 dB
    Inputs Telephone: 600-ohm balanced line, transformer isolated;
    Music: (1) Hi-Z source, RCA jacks or screw terminals;
    Microphone: (1) Lo-Z balanced, screw terminal;
    Music Mute: During a mic page;
    Contact Ring: Sounds night ringer when customer-supplied dry contacts are closed;
    Telephone Ring: Sounds night ringer in response to 90 V signal;
    Bridging: Permits bridging of two amplifiers
    Overload Protection 120 VAC circuit breaker;
    TPU35B: 1.0 A;
    TPU100B: 2.5 A
    Sensitivity Music: 85 m V;
    Telephone: -20 dB;
    Microphone: -600uV
    Speaker Outputs 70V, 25V, 25 VCT, 16 ohm
    Telephone Input (1) 600-ohm Balanced
    Indicators LEDs: Peak Level, Power
    Power 120 V, 60 Hz; AC Line Draw, full-rated power at 120-VAC line voltage:
    TPU35B: 0.75 A;
    TPU100B: 2 A
    Size 8.4"H x 14.9"W x 3.6"D (21.3 x 37.8 x 9.1 cm)
    Weight Shipping: TPU35B: 16 lb. (7.3 kg);
    TPU100B: 21 lb. (9.5 kg)
    Warranty 90 days


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Bogen Paging Amplifers, 35-Watt:


    Connect your Bogen Paging Amplifers, 35-Watt with:
