Premises Security > Intercom & Paging

click photo to enlarge

SM4T

Photo may show similar product

Other views

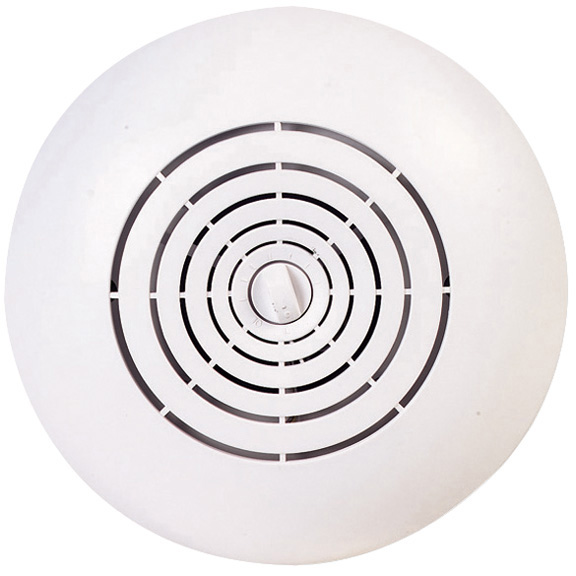

Bogen EASY INSTALL™ Ceiling Speakers, 4-Watt

Install these ceiling speakers in less than a minute—without tools!

SM4T

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Install in less than a minute via a simple three-step process—no tools needed!
  • Install in any drop ceiling with standard ceiling tiles.
  • No-mess installation. Surface-mount design eliminates the need to cut ceiling tile.
  • Surface-mount speakers carry clear, highly intelligible voice messages.


    • Description

    Bogen EASY INSTALL Ceiling Speakers, 4-Watt


    Quick Facts

  • Install in less than a minute via a simple three-step process—no tools needed!
  • Install in any drop ceiling with standard ceiling tiles.
  • No-mess installation. Surface-mount design eliminates the need to cut ceiling tile.
  • Surface-mount speakers carry clear, highly intelligible voice messages.

    • Further Details

  • Ideal for offices, hospitals, restaurants, malls, and more.
  • Direct and reflected sound paths create a wide dispersion angle.
  • Speakers have a lightweight, durable plastic shell with a paintable finish.
  • Color-coded mounting studs identify polarity to make the electrical connection easier. No external wires are needed.
  • Control the volume via a high-quality control on the outside of the speaker.
  • Choose from two models: SM1EZ has a single, 1-watt tap; SM4T features switch-selectable taps for controlling output level.
  • An O-ring holds the speaker tight to the ceiling, eliminating whistles and ensuring smoother sound.
  • Use with 70-volt systems.
  • All mounting hardware is included.
  • Complies with NFPA National Code 160b and UL® 2043.

    Reduce installation time.
    You can completely install this speaker—in the ceiling, secured, and connected—in less than a minute.

    How does it install? Simply.
    • Pierce the ceiling tile with the speaker’s two specially designed studs.
    • Secure the speaker to the ceiling tile by screwing on the included wide-based wing nuts on the back side of the tile.
    • Connect the speaker wires to the studs with standard wire nuts (included).
    That’s it. You’re ready to go!

    How does it work? Great.
    EASY INSTALL speakers are designed to produce clear, highly intelligible sound. They produce a wide dispersion of sound, even at higher frequencies where other speakers begin to fail. The speakers deliver a wider dispersion area through a combination of direct and reflected sound paths. This provides better sound intelligibility and makes exact speaker placement less critical.

    A wire-wound volume control is standard on both speaker models. Although it’s easily accessible on the outside of the speaker, it doesn’t stand out so people aren’t tempted to adjust it.

    A heavy O-ring at the base of the speaker cavity ensures that it seals tightly to the ceiling tile. This produces clearer sound and eliminates whistles and warbling.

    You can install this speaker virtually anywhere, thanks to its low-profile design. Because it can be painted, it blends in with any decor. Best of all, the speaker weighs only two pounds so it doesn’t compromise the tile.


    • Technical Specifications for Bogen EASY INSTALL™ Ceiling Speakers, 4-Watt:

    Controls — SM1EZ: Volume;
    SM4T: Volume, Tap selector switch
    Dispersion — 120º
    Frequency Response — 125 Hz to 15 kHz
    Flame Rating — 94–5 VA
    Power Taps — SM4T: 4, 2, 1, 0.5, 0.125 watts, rotary switch selectable
    Sound Pressure Level — 90 dB at 1 watt at 3.2 ft. (1 m) on axis
    Power Rating (Maximum) — SM1EZ: 1 watt;
    SM4T: 4 watts
    Power — 70-volt constant-voltage line
    Size — 9.5"Dia. x 3"D (24.1 x 7.6 cm);
    Base diameter against ceiling: 8.75" (22.2 cm)
    Weight — 2 lb. (0.9 kg)
    Warranty — 90 days


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Bogen EASY INSTALL™ Ceiling Speakers, 4-Watt:


    Connect your Bogen EASY INSTALL™ Ceiling Speakers, 4-Watt with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A 90 DAYS warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $6.30

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $12.59

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
