ZPM-3

Photo may show similar product

Other views

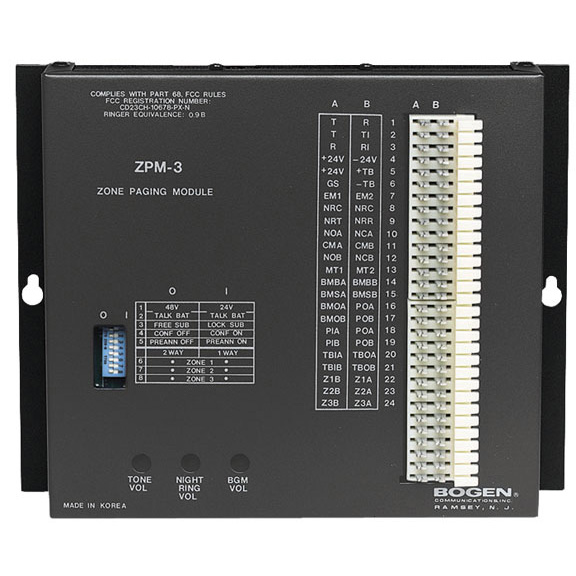

Bogen 3-Zone Paging Module

Get three-zone paging plus all-call capabilities.

ZPM-3

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Offers three field-programmable zone groups with one to three zones each.
  • Works with self- or central-amplified paging systems.
  • Use with background music.
  • Use in a system independent of a telephone system.


  • Description

    Bogen 3-Zone Paging Module


    Quick Facts

  • Offers three field-programmable zone groups with one to three zones each.
  • Works with self- or central-amplified paging systems.
  • Use with background music.
  • Use in a system independent of a telephone system.

  • Further Details

  • Features built-in night ringer.
  • Has emergency call or shift change in selected zones.
  • Separate volume controls for tones, night ring, and music.
  • Registered under FCC Part 68.

  • This paging module is packed with features, including three-zone paging, a built-in night ringer, emergency call or shift change, and separate volume controls.


    Technical Specifications for Bogen 3-Zone Paging Module:

    DTMF Tones Signal level: 25 dBm;
    Twist limit: 10 dB;
    Tone duration (min.): 40 ms;
    Interdigit pause: 40 ms
    Operating Current 350 mA maximum
    Operating Environment Temperature: 0 to 125° F (18 to 51.6° C);
    Humidity: 0 to 95%, noncondensing
    Power Capability Audio: 100 watts (25 or 70 VAC)
    Ringer Equivalence 1.2 B
    Zone Selection Dial pulse speed: 8–20 ppm;
    Percent break: 52-64%
    Connectors 60-terminal punch block
    Power Operating voltage: 24 VDC, 350 mA minimum;
    power supply required
    Dimensions 7.3"H x 9"W x 1.4"D (18.5 x 22.7 x 3.6 cm)
    Weight Shipping: 4 lb. (1.8 kg)
    Warranty 90 days
