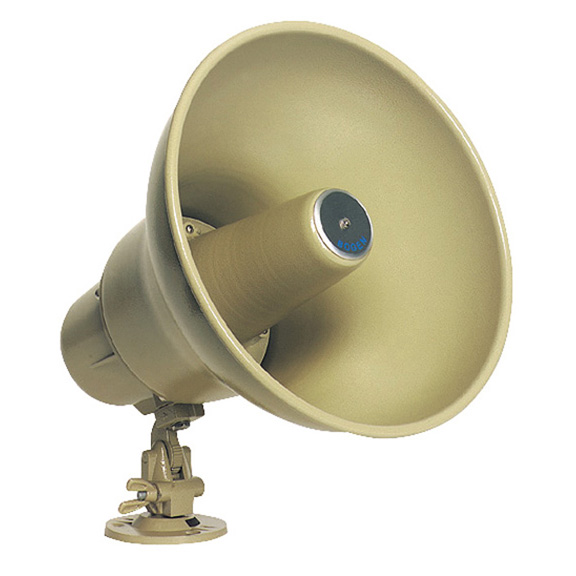

Bogen 15-Watt Re-entrant Horn Loudspeaker

This 15-watt loudspeaker offers high intelligibility and efficiency.

SPT15A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Designed for one-way communications systems. Can be used in talk-back applications with additional equipment.
  • Excellent for use in warehouses, industrial plants, schools, transportation terminals, and recreational areas.
  • Run from a 25V or 70V constant voltage line.
  • Features a built-in, variable impedance selector switch.
  • Screw terminals make installation easy.

  • Description

    Bogen 15-Watt Re-entrant Horn Loudspeaker


    Quick Facts

  • Designed for one-way communications systems. Can be used in talk-back applications with additional equipment.
  • Excellent for use in warehouses, industrial plants, schools, transportation terminals, and recreational areas.
  • Run from a 25V or 70V constant voltage line.
  • Features a built-in, variable impedance selector switch.
  • Screw terminals make installation easy.

  • Further Details

  • All-metal construction with enamel finish.
  • Weatherproof for use indoors or out.
  • Includes a mounting bracket.
  • Includes a self-aligning, field-replaceable diaphragm.


  • Technical Specifications for Bogen 15-Watt Re-entrant Horn Loudspeaker:

    Dispersion 110°
    Frequency Response 275 Hz to 14 kHz
    Impedance 25/70 volts
    Impedance Selector Switch Settings 25V at 15, 7.5, 1.8, 0.94, 0.46 watts;
    70V at 15, 7.5, 3.8, 1.8, 0.9 watts
    Power Rating (RMS) 15 watts continuous
    Sensitivity as Microphone -22 dBm
    Sound Pressure Level 121 dB at 4 ft. (1.2 m) on axis with 15-watt input at 1000 Hz
    Power 25V or 70V constant-voltage line
    Size 9"Diameter x 9.25"D (22.9 x 23.5 cm)
    Weight 4.5 lb. (2 kg)
    Warranty 90 days


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Bogen 15-Watt Re-entrant Horn Loudspeaker:
