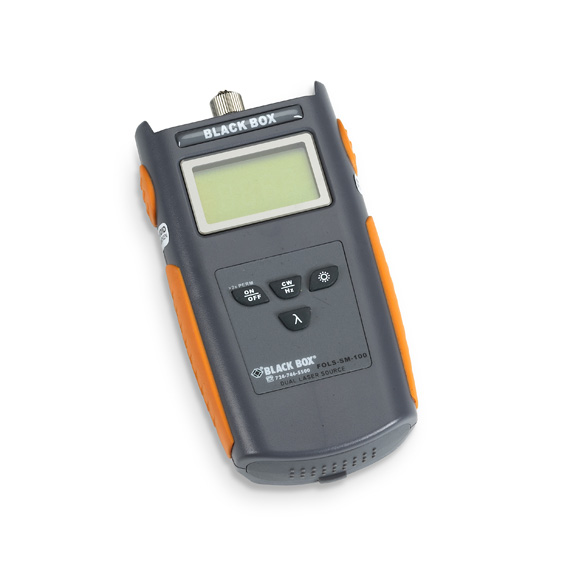

Basic Single-Mode Light Source

This basic light source is ideal for the data center and occasional fiber testing.

FOLS-SM-100

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Operates in continuous wave (CW ) or modulated mode.
  • Choose from three output frequencies: 270 Hz, 1 kHz, and 2 kHz.
  • This basic light source is ideal for the data center and occasional fiber testing.
  • Has rechargeable lithium ion battery and an AC adapter.


  • Further Details

  • An auto-off feature saves battery power.
  • Low-battery indicator reminds you to recharge the battery.
  • A single-output connector provides stable power at dual wavelengths.
  • An LCD backlight enables you to work in the dark.
  • Includes FC connector.
  • Compact unit is lightweight and easy to carry.
  • Light sources are available in basic and deluxe models for single-mode and multimode cable.
  • Works with our Basic Fiber Optic Power Meter (FOPM-100) to measure optical loss.

  • This product works with:
  • Basic Fiber Optic Power Meter (FOPM-100)
  • Questions? Contact our FREE Tech Support.

    Auto Power-Off
    Yes
    Backlightling —
    Yes
    Central Wavelength —
    1310 ± 20 nm, 1550 ± 20 nm
    Emitter Type—
    Laser Diode (LD)
    Fiber Type—
    Single-mode
    Laser —
    Class 1
    Output Power -5.0 dBm ± 1 dB
    Output Frequency 270 Hz, 1 kHz, 2 kHz
    Output Stability* Short term (15 minutes): Less than 0.1 dB;
    Long term (5 hours or more): less than 0.2 dB
    Output Wavelength (nm) —
    1310 nm, 1550 nm
    Spectral Width —
    5 nm
    Connectors FC connector included
    Temperature Operating: +14 to +122° F (-10 to +50° C);
    Storage: -4 to +155° F (-20 to +70° C)
    Power Lithium ion rechargeable battery (included), AC adapter (included)
    Dimensions 4.5"H x 2.5"W x 1.2"D (11.4 x 6.4 x 3.1 cm)
    Weight 0.3 lb. (0.1 kg)

    * Valid at 1550 nm, CW, 73° F ±5° F (23° C ± 5° C); Relative humidity: less than or equal to 70% with an FC connector

    This product works with:
  • Basic Fiber Optic Power Meter (FOPM-100)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
