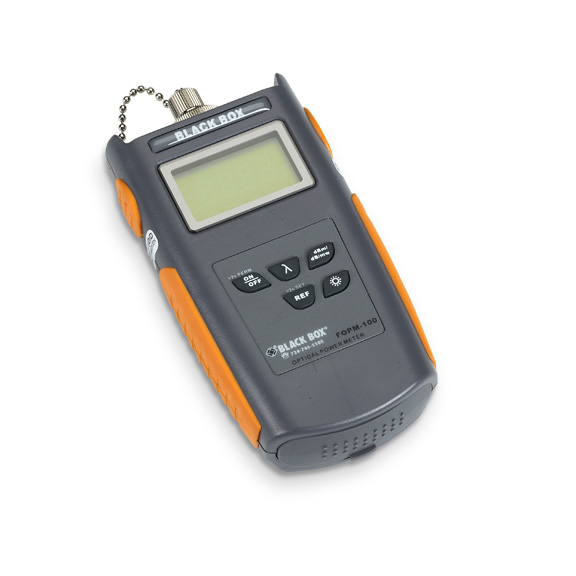

FOPM-100

Photo may show similar product

Other views

Basic Optical Power Meter

The basic power meter for occasional fiber testing.

FOPM-100

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Use to identify optical fiber strands, measure optical attenuation, verify continuity, and test transmission quality.
  • This basic power meter is ideal for the data centers, labs, and occasional fiber testing.
  • Works at six wavelengths: 850, 1300, 1310, 1490, 1550, and 1625 nm.

  • Description

    Basic Optical Power Meter


    Quick Facts

  • Use to identify optical fiber strands, measure optical attenuation, verify continuity, and test transmission quality.
  • This basic power meter is ideal for the data centers, labs, and occasional fiber testing.
  • Works at six wavelengths: 850, 1300, 1310, 1490, 1550, and 1625 nm.

  • Further Details

  • Referencing function helps ensure efficiency, even when two units are far apart.
  • An auto-off feature saves battery power.
  • Includes a rechargeable lithium ion battery and an AC adapter.
  • Low-battery indicator reminds you to recharge the battery.
  • LCD backlight enables you to work in the dark.
  • Three measurement modes: power (dBm), relative (dB), and logarithmic (mW).
  • Includes a FC/PC interchangeable connector.

  • This product works with:
  • Fiber Light Sources (FOLS-SM-100, FOLS-MM-100)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Basic Optical Power Meter:

    Auto Power Off — Yes
    Accuracy* — ±0.35 dB ±10 nW
    Backlight — Yes
    Calibrated Wavelength — 850, 1300, 1310, 1490, 1550, 1625 nm
    Detector Type — InGaAs
    Measuring Range — -60 to +3 dBm
    Reference Value — Yes
    Resolution — 0.01 dB
    Temperature — Operating: +14 to +122° F (-10 to +50° C);
    Storage: -4 to +158° F (-20 to +70° C)
    Connectors — FC/PC interchangeable connector included
    Power Supply — (1) lithium ion battery, AC adapter
    Size — 1.2"H x 2.5"W x 4.5"D (3 x 6.3 x 11.4 cm)
    Weight — 3.1 lb. (1.4 kg)

    * Valid at 1500 nm, CW, 23°C ± 3° C, relative humidity less than or equal to 70%, with an FC connector

    This product works with:
  • Fiber Light Sources (FOLS-SM-100, FOLS-MM-100)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Basic Optical Power Meter:

    Manuals

    • Basic Optical Power Meter Manual
      Manual for the FOPM-100.

    Quick Start Guides

    • Basic Optical Power Meter Quick Start Guide (QSG)
      Quick Start Guide (QSG) for the FOPM-100.

    Product Data Sheets
