Testers & Tools > Testers

click photo to enlarge

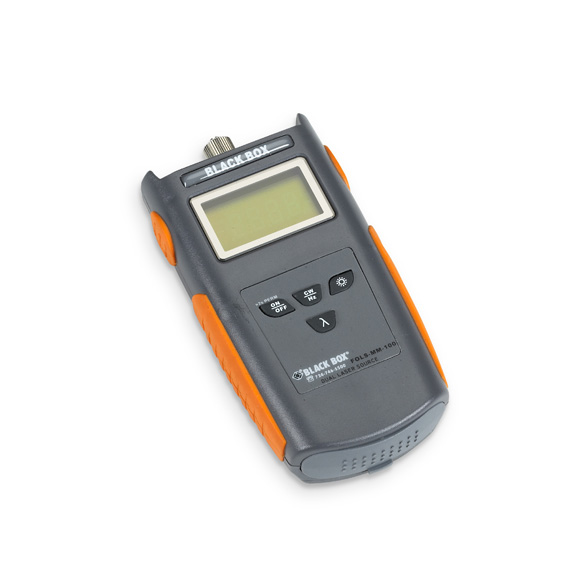

FOLS-MM-100

Photo may show similar product

Other views

Basic Multimode Light Source

This basic light source is ideal for the data center and occasional fiber testing.

FOLS-MM-100

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Operates in continuous wave (CW) or modulated mode.
  • Choose from three output frequencies: 270 Hz, 1 kHz, and 2 kHz.
  • This basic light source is ideal for the data center and occasional fiber testing.
  • Has rechargeable lithium ion battery and an AC adapter.

  • Description

    Basic Multimode Light Source


    Quick Facts

  • Operates in continuous wave (CW) or modulated mode.
  • Choose from three output frequencies: 270 Hz, 1 kHz, and 2 kHz.
  • This basic light source is ideal for the data center and occasional fiber testing.
  • Has rechargeable lithium ion battery and an AC adapter.

  • Further Details

  • An auto-off feature saves battery power.
  • Low-battery indicator reminds you to recharge the battery.
  • A single-output connector provides stable power at dual wavelengths.
  • An LCD backlight enables you to work in the dark.
  • Includes FC connector.
  • Compact unit is lightweight and easy to carry.
  • Light sources are available in basic and deluxe models for single-mode and multimode cable.
  • Works with our Basic Fiber Optic Power Meter to measure optical loss.

  • This product works with:
  • Basic Fiber Optic Power Meter
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Basic Multimode Light Source :

    Auto Power-Off — Yes
    Backlightling — Yes
    Central Wavelength — 850 ± 10 nm, 1300 ± 20 nm
    Emitter Type— Laser Diode (LD)
    Fiber Type—Multimode
    Laser — Class 1
    Output Power —-5.0 dBm ± 1 dB
    Output Frequency —270 Hz, 1 kHz, 2 kHz
    Output Stability* —Short term (15 minutes): Less than 0.1 dB; Long term (5 hours or more): less than 0.2 dB
    Output Wavelength (nm) — 850nm, 1300 nm
    Spectral Width —5 nm
    Connectors — FC connector included
    Temperature — Operating: +14 to +122° F (-10 to +50° C);

    Storage: -4 to +155° F (-20 to +70° C)
    Power —Lithium ion rechargeable battery (included), AC adapter (included)l
    Size — 4.5"H x 2.5"W x 1.2"D (11.4 x 6.4 x 3.1 cm)
    Weight — 0.3 lb. (0.1 kg)

    * Valid at 1550 nm, CW, 73° F ±5° F (23° C ± 5° C); Relative humidity: less than or equal to 70% with an FC connector
    This product works with:
  • Basic Fiber Optic Power Meter
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
