Networking > Legacy Technologies

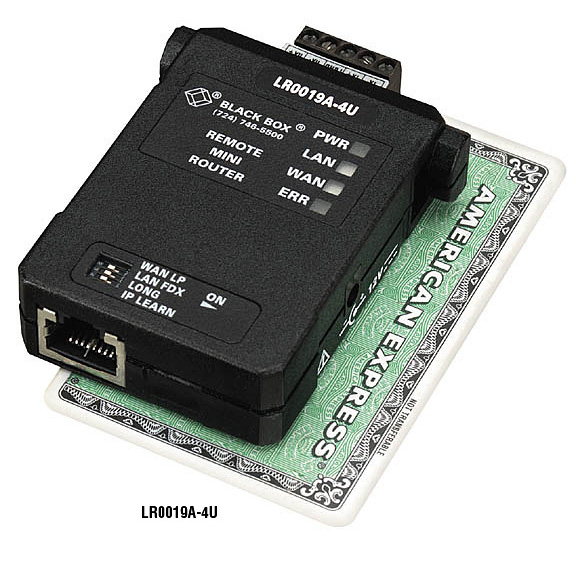

click photo to enlarge

LR0019A-V35F

Photo may show similar product

Other views

BLACK BOX® Remote MiniRouter, V.35 with Female V.35 Cable

The low-cost little router with the high-powered performance.

LR0019A-V35F


One year Warranty

Product Highlights

  • Variety of WAN interfaces—RS-232, RS-422, RS-530, V.35, and X.21—as well as 4-wire and fiber optic models.
  • High-performance chip design and hardware-based operation.
  • Fiber interface enables inter-WAN links up to 22.3 miles (36 km)!

  • Description

    Remote Mini Routers (10BASE-T), V.35 with Female V.35 Cable


    Quick Facts

  • Variety of WAN interfaces—RS-232, RS-422, RS-530, V.35, and X.21—as well as 4-wire and fiber optic models.
  • High-performance chip design and hardware-based operation.
  • Fiber interface enables inter-WAN links up to 22.3 miles (36 km)!

  • Further Details

  • Fully compatible with IEEE 802.3 V.2.
  • Frame Relay, HDLC, and PPP support.
  • RJ-45 LAN interfaces.
  • Full- and half-duplex operation.
  • Support for IP multicast and LAN-based IGMP applications.
  • Bidirectional wire-speed filtering and forwarding.
  • WAN links at speeds of 10 Mbps.
  • Telnet™ and SNMP MIB support.
  • Small size makes it perfect when there’s no room to spare.

    Need an inexpensive router for your network? The Remote MiniRouter from Black Box is a high-performance, low-cost, hardware-based IP router that gets the job done without costing a bundle.

    Start with the router’s great design. A small unit scarcely bigger than a box of paper clips, it’s remarkably efficient. Just configure a single software parameter, and the router is ready for your network. It works by determining if the packet is destined for the IP net on the LAN.

    If it isn’t, the router simply forwards the packet to the WAN link. From the WAN side, packets are forwarded to the LAN if the IP net matches.

    This simple routing function is supported with hardware that filters packets from LAN to WAN and WAN to WAN without losing data. Filtering functions at 35,000 pps, and forwarding operates at 30,000 for wire-speed operation.

    For 10-Mbps LAN links, use the RJ-45 connector. On the WAN side, take your pick from RS-232, V.35, RS-422, X.21, RS-530, fiber optic, or 4-wire modem connections. You can make WAN-to-WAN fiber links up to 22.3 miles (36 km), and you can even use the 4-wire model over regular telephone cable (for details, contact Tech Support). The router also works as a Frame Relay Access Device because it supports the RFC 1490 standard.

    For low-cost routing, the choice is clear—the functional, affordable Remote MiniRouter.

  • Technical Specifications for BLACK BOX® Remote MiniRouter, V.35 with Female V.35 Cable:

    Approvals — IEEE 802.3/Ethernet II
    Buffering — 256 frames @ 1534 bytes per frame
    Delay — 1 frame
    Distance — 4-wire interface:
    10 Mbps:
    CAT3 UTP: Up to 1312.5 ft. (400 m);
    CAT5 UTP: Up to 1640.4 ft. (500 m);
    5 Mbps:
    CAT3 UTP: Up to 1968.5 ft. (600 m);
    CAT5 UTP: Up to 2296.5 ft. (700 m);
    IBM® Type 1: Up to 4265.5 ft. (1300 m);
    Telephone cable: Up to 492.1 ft. (150 m) nominal;
    Multimode: Up to 1.8 mi. (3 km);
    Single-mode: Up to 22.3 mi. (36 km)
    Filtering — 30,000 pps
    Forwarding — 35,000 pps
    LAN IP Net — Up to 256 users
    Speed — LAN: Up to 20 Mbps (full duplex);
    WAN: 10 Mbps (synchronous)
    CE Approval — Yes
    Interface — LAN: 10BASE-T;
    WAN: RS-232, V.35, RS-422, RS-530, X.21, 4-wire, or fiber optic
    Connectors — LAN: RJ-45;
    WAN: (1) DB25, M/34, DB37, DB15, 4-position terminal block, ST®
    Indicators — (4) LEDs: Power, LAN, WAN, Error
    Power — External 12-VDC/0.8-A regulated adapter
    Size — 0.7"H x 2.1"W x 2.7"D (1.8 x 5.3 x 6.9 cm)
    Weight — < 0.1 lb. (< 0.1 kg)
    These products work with:
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for BLACK BOX® Remote MiniRouter, V.35 with Female V.35 Cable:
