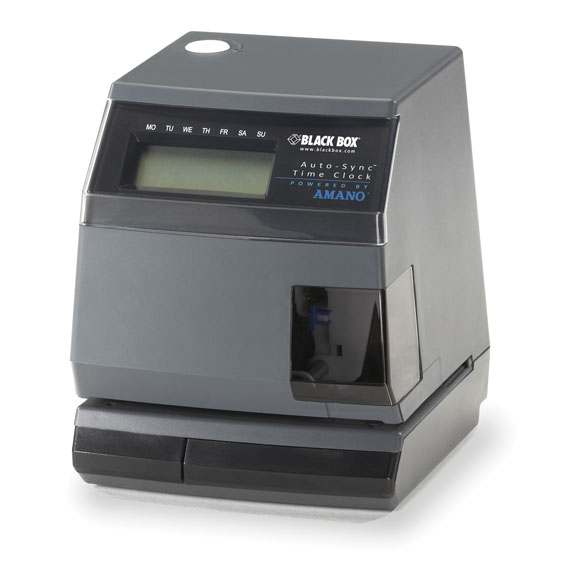

Auto-Sync Time Clock with PoE

Ideal for industries requiring strict adherence to good timekeeping practices.

Ensures financial institutions' compliance with FINRA OATS Rule 7430 (formerly NASD OATS Rule 6953 and NYSE 132A).

Automatically syncs directly to NIST or to an internal/external NTP time source.

Powered by 802.3af Power over Ethernet (PoE).

Includes battery backup, so the clock keeps going even if the network goes down.

Sends e-mail notification and SNMP traps of clock and synchronization status.

Visible alarms on the time stamp imprint and LCD note the time of the synchronization failure.

Clock saves files and generates reports on time sync events for audits.

Manage via a Web browser over your network.

Schedule up to 12 sync times a day.

Quick and simple plug-and-play installation.

Also available in a non-PoE version.

The network experts at Black Box have teamed up with the time-clock experts at Amano® to bring you a state-of-the-art networked solution for validating time.

The Black Box® Auto-Sync Time Clock provides automatic time synchronization and data storage for compliance with industry regulations. And with its Web-based interface, configuration and management are easy.

Clock watcher
If you’re in the financial business, you need to be a "clock watcher" to be compliant with regulations. Let the Auto-Sync Time Clock do it for you. It ensures your complete compliance with FINRA OATS Rule 7430, including to-the-second granularity and synchronization within three seconds of the National Institute of Standards and Technology (NIST) atomic clock. The clock syncs directly to the time source rather than to a computer.

This Web-based clock gives you automatic time synchronization for validated time. It also will run on its own using elaborate time synchronization schedules. You can set the clock to synchronize to an NIST or NTP time source up to 12 times a day, or every two hours.

Rules and regulations
The clock ensures full OATS compliance and offers the highest-quality OATS-compliant time stamp available. It is even in compliance with standalone units not linked to a PC. It also provides a complete solution without the need for individual trader computers.

Stamp of approval
The clock will make visible alarms on the time stamp imprint and LCD display, giving notification of a time synchronization failure. You can also configure the clock to send e-mail notifications to selected recipients for clock status or if the clock fails to synchronize. The clock also uses SNMP traps for event notification, enabling network administrators to centrally manage the clock and troubleshoot it. Integral diagnostics include LCD display, transaction reset, and manual time sync.

Even if the clock does not receive synchronization from an NTP time server, it still functions and maintains time. For administration, you can set up log-in security and passwords for two users.

Records
The clock can store five years of data based on a schedule of two syncs per day for OATS compliance. You can get status, transaction, and configuration reports from the clock. It also generates reports on time sync events for use during audits. Choose automatic and/or manual print activation, and you can add alphanumeric custom comments. The clock can print through up to six carbon copies. The time imprint format includes seconds as per requirements.

Easy setup and management
Locate time clocks on the network by using the included utility software, then configure and manage each clock through its embedded Web server via any standard Web browser.

The Auto-Sync Time Clock is ideal for:

Banks

Insurance companies

Investment brokers

Financial management firms

Casinos

Manufacturers

Pharmaceutical/healthcare (FDA 21 CFR Part 11)

Hospitals

911 call centers

Law enforcement

This product works with:

Ribbon Cartridges (ASTCRCB, ASTCRCG, ASTCRCR)

Replacement Key (ASTCKEY)
