Digital Signage > Digital Signage Platforms & Players

click photo to enlarge

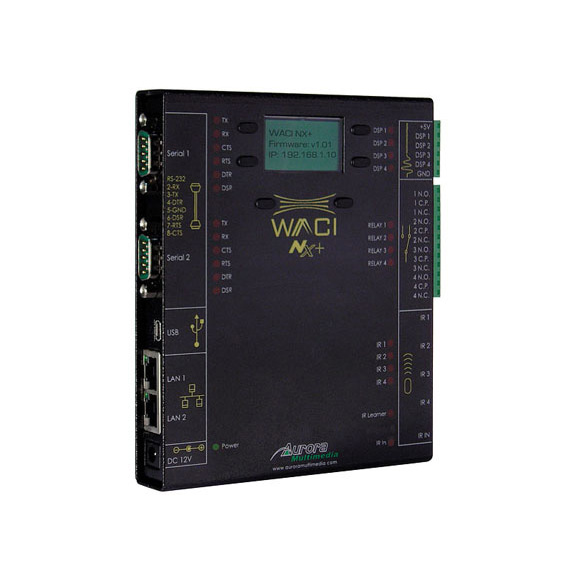

WACI NX+

Photo may show similar product

Other views

Aurora Multimedia WACI NX+ Web Access Controller

Control multimedia devices via IP connections while using virtually any platform.

WACI NX+


One year Warranty

Product Highlights

  • Control conference room devices and video signage from afar. Great for secure, remote control of displays and kiosks from a master control room.
  • Truly platform independent. Work with Windows®, Mac® OS X, Linux®, UNIX®, and other operating systems.

  • Description

    Aurora Multimedia Web Access Controller, WACI NX+


    Quick Facts

  • Control conference room devices and video signage from afar. Great for secure, remote control of displays and kiosks from a master control room.
  • Truly platform independent. Work with Windows®, Mac® OS X, Linux®, UNIX®, and other operating systems.

  • Further Details

  • Program using standard Web languages (such as HTML, DHTML, Macromedia Flash, CGI, and Visual Basic).
  • Enables you to run a wide range of applications for content delivery or redundant storage.
  • Compatible with Internet Explorer 5.x, Netscape Navigator®, Mozilla Firefox™, and Apple® Safari™ browsers.
  • Up to 1 billion instructions per second (BIPS) of 32-bit processing power.
    Extra memory, and a cipher co-processor are for 256-bit SSL, AES, and VPN support.
  • Connect multiple units to control multiple devices from a single interface.
  • Preconfigure and test equipment control and monitor connectivity.
  • Set up and run diagnostics using built-in LCD with six-button menu navigation.
  • Features 16 MB of 32-bit Wide flash memory, expandable to more than 2 GB. Also has 32 MB of DDR memory.
  • Server-side operation—no dedicated server is required and no special applications need to be installed on your PC to access any WACI unit.
  • Built-in network security features, including encryption and password protection.
  • Includes four programmable DSP ports for A/D, D/A, I/O, or audio.
  • Four SPDT relay ports are for contact closure sensing and triggering relays.
  • Link to infrared (IR) controllable devices through its four IR device ports.
  • Includes a SQL database.
  • Integrate with Aurora Multimedia’s entire WACI control system series, including expansion bus add-on packs and IPF network expansion modules. For details, contact our FREE Tech Support!

  • Technical Specifications for Aurora Multimedia WACI NX+ Web Access Controller:

    Memory — 32 MB of 32-bit wide flash, expandable up to 2 GB; DDR: 64 MB
    Processor — Up to 1 BIPS of 32-bit
    IR Sensor — (1) IR for learning/receiving input
    Connectors — (2) RJ-45 (10/100); (1) USB 1.1 On-the-Go (USB mini Type B F); (2) DB9 (RS-232/RS-422/RS-485); (4) IR/serial TX ports; (4) DSP ports for A/D, D/A, I/O, audio; (4) SPDT relay ports (1.2 A/24 VDC max.)
    Power — 12 VDC, 1.2 A
    Size — 5.4"H x 3.9"W x 1"D (13.7 x 9.9 x 2.5 cm)
    Weight — 0.6 lb. (0.2 kg)
    Warranty — Limited lifetime


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Aurora Multimedia WACI NX+ Web Access Controller:

    Application Diagrams


    Connect your Aurora Multimedia WACI NX+ Web Access Controller with:

    Accessory: WACI NX JR

    Aurora Multimedia WACI NX Jr. Web Access Controller

    Aurora Multimedia Web Access Controller, WACI NX Jr.
