DIDO PRO

Photo may show similar product

Other views

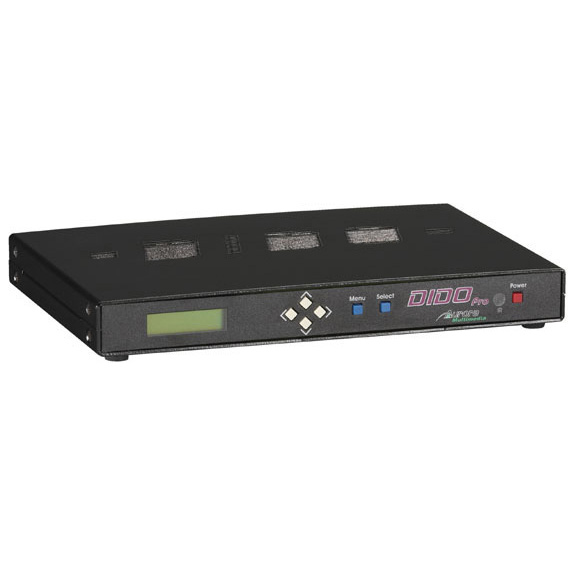

Aurora Multimedia DIDO Pro High-Resolution Scaler/Multi-Image Rotation Unit

Set up dazzling quad-screen signage displays—and even rotate images!

DIDO PRO


One year Warranty

Product Highlights

  • Single device works as a video processor, video scaler, PiP generator, and an audio/video switch.

  • Description

    Aurora Multimedia DIDO Pro High-Resolution Scaler/Multi-Image Rotation Unit


    Quick Facts

  • Single device works as a video processor, video scaler, PiP generator, and an audio/video switch.

  • Further Details

  • Has dual S-Video and DVI video inputs, so you can create quad-screen displays.
  • Great for digital signage and trade show and retail displays.
  • Also ideal for videoconferencing and security applications.
  • Supports high-resolution split-screen imaging.
  • Image-enhancing capabilities, such as motion adaptive deinterlacing, low-angle directional interpolation, 3:2 and 2:2 inverse pull-down, Moiré cancellation color correction, adaptive flesh tone adjustments, image zoom, and shrink.
  • Also enables image rotation for digital signage.
  • Internal event scheduler with real-time clock enables special effects to be scheduled locally and between DIDO Pro units connected via the RS-485 bus.
  • You can connect multiple units to create a video wall as large as 16 x 16 screens!
  • Manipulates on-screen images multiple ways and in real time.
  • Accepts digital and analog video inputs, including DVI/RGB, Y-Pb-Pr output/input with resolutions up to 1900 x 1200, as well as digital stereo audio.
  • Audio propagation delay compensation ensures correct sync with video.
  • Controllable with the included infrared (IR) remote or via an RS-232 connection.
  • Flash upgradable.


    You get numerous image display capabilities with the DIDO Pro. You can display multiple images horizontally and vertically on a single screen, display an image with picture-in-picture (PiP), rotate an image for display on a screen that’s turned on its side, and link multiple DIDO Pro units and screens together to create a video wall displaying a single image.

  • Technical Specifications for Aurora Multimedia DIDO Pro High-Resolution Scaler/Multi-Image Rotation Unit:

    Audio Output Level — +12 dB to -114 dB in 64 steps
    Resolutions Supported — 1080i, 720p, 480i, 480p, VGA, SVGA, XGA, SXGA, UXGA, WUXGA
    Video Signal Format — Input: Composite, S-Video, Y-Pb-Pr, RGBHV, DVI 1.0/HDCP;
    Output: DVI-I , RGBHV, Y-Pb-Pr
    Connectors — Audio input: (2) stereo RCA F via audio breakout cable;
    Audio output: (1) stereo RCA F via breakout cable;
    Control: (1) 6-pin mini DIN F (DB9 adapter included);
    Video input: A side: (1) S-Video, (1) DVI F; B side: (1) S-Video, (1) DVI F;
    Video output: (1) DVI F
    Power — 12 VDC
    Size — 1"H x 8.4"W x 5.7"D (2.5 x 21.3 x 14.5 cm)
    Weight — 1.3 lb. (0.6 kg)
    Warranty — Limited lifetime
    This product works with:
  • DVI Breakout Cable for Aurora Multimedia DIDO Pro and DIDO Jr.
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Aurora Multimedia DIDO Pro High-Resolution Scaler/Multi-Image Rotation Unit:

    Application Diagrams


    Connect your Aurora Multimedia DIDO Pro High-Resolution Scaler/Multi-Image Rotation Unit with:
