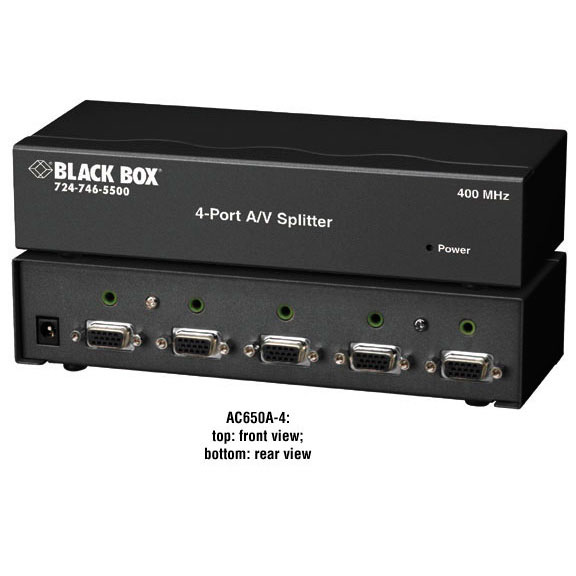

Audio/Video Splitter, 4-Port

It's 400-MHz, 2048 x 1536 resolution keeps pace with today's highest video standards.

AC650A-4

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Transmit video and audio signals from one PC to two monitors and headphones located up to 213.2 feet (65 m) away.
  • Use it anywhere you need to split video and audio signals.
  • Pixel resolutions up to 400 MHz.
  • Supports monitor resolutions up to 2048 x 1536 at 60 Hz, meeting today's highest video standards.

  • Description

    Audio/Video Splitter, 4-Port


    Quick Facts

  • Transmit video and audio signals from one PC to two monitors and headphones located up to 213.2 feet (65 m) away.
  • Use it anywhere you need to split video and audio signals.
  • Pixel resolutions up to 400 MHz.
  • Supports monitor resolutions up to 2048 x 1536 at 60 Hz, meeting today's highest video standards.

  • Further Details

    The 4-Port Audio/Video Splitter is cascadable up to 2 levels. So you can link up to 7 monitors and headphones to the source PC.

    The splitter features easy-to-use front-panel select switches and supports the VESA DDC, DDC2, DDC2B standards (for video out Port 1).

    Plus, the splitter is compatible with a broad range of video interfaces, including VGA, SVGA, XGA, UXGA, QXGA, and multisync.

    Video signal enhancement enables you to place monitors up to 213.2 feet (65 m) away.

    This product works with:
  • Premium VGA Video Extension Cable (EVNPS05)
  • VGA Baluns (AC640A–AC642A)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Audio/Video Splitter, 4-Port:

    Approvals CE
    Distance 213.2 ft. (65 m) maximum
    Pixel Frequency 400 MHz
    Resolution 2048 x 1536 at 60 Hz maximum
    Interface VGA, SVGA, XGA, UXGA, QXGA, and multisync
    Connectors Video input:(1) HD15 F;
    Video output: (4) HD15 F;
    Audio input: 3.5-mm stereo F;
    Audio output: (4) HD15 F; (4) 3.5-mm stereo F
    Power Adapter: 12 VDC, 600 mA, 7.2 W
    Dimensions 1.7"H x 13.5"W x 4.1"D (4.3 x 34.3 x 10.4 cm)

    This product works with:
  • Premium VGA Video Extension Cable (EVNPS05)
  • VGA Baluns (AC640A–AC642A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Audio/Video Splitter, 4-Port:

    Manuals

    • 2-Port and 4-Port Audio/Video Splitters
      User Manual for the AC650A-2 and AC650A-4

    Application Diagrams


    Connect your Audio/Video Splitter, 4-Port with:
