Video & Multimedia > Baluns


click photo to enlarge

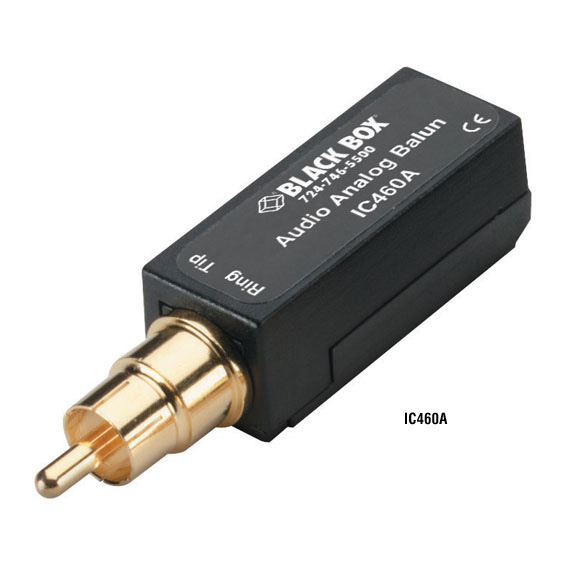

IC461A

Photo may show similar product

Other views

Audio Baluns (Analog and Digital), Digital

Extend analog or digital audio over inexpensive CAT5 cable.

IC461A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Connect audio devices that are spaced far apart by using inexpensive CAT5 cable instead of costly coax cable.
  • Compact design for installing next to audio equipment in tight spaces.
  • Guaranteed for life!


  • Description

    Audio Balun, Digital.


    Quick Facts

  • Connect audio devices that are spaced far apart by using inexpensive CAT5 cable instead of costly coax cable.
  • Compact design for installing next to audio equipment in tight spaces.
  • Guaranteed for life!

  • Further Details

  • Analog Audio Baluns support unbalanced analog mono or stereo audio connections up to 5000 feet (1524 m) over CAT5 cable. For stereo audio, order two per side.
  • Digital Audio Baluns carry Dolby® Digital, dts®, and other types of digital audio up to 600 feet (182.8 m) over CAT5 cable.
  • Ideal for equipment connections in home theaters, conference rooms, or training centers where UTP cable is already installed or where conduits don't allow for multiple bulky cable runs.
  • Cable strain relief for secure connections.
  • Can be used with our Component/Composite Video Balun (IC462A) to extend A/V applications.


  • Technical Specifications for Audio Baluns (Analog and Digital), Digital:

    Bandwidth IC460A: Up to 1000 ft. (304.8 m): DC 60 Hz-20 kHz; 1000 ft. (304.8 m) to 5000 ft. (1524 m): DC 100 Hz-20 kHz;
    IC461A: DC to 25 MHz
    Distance (Maximum) Over CAT5 UTP: AC460A: 5000 ft. (1524 m);
    AC461A: 600 ft. (182.8 m)
    CE Approval Yes
    Connectors (2) screw terminals, (1) RCA jack
    Size AC460A: 0.5"H x 1.25"W x 0.5"D (1.3 x 3.2 x 1.3 cm);
    AC461A: 0.6"H x 2.3"W x 0.6"D (1.5 x 5.8 x 1.5 cm)
    NOTE: Must be used in pairs.

    These products work with:
  • Component/Composite Video Balun (IC462A)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Audio Baluns (Analog and Digital), Digital:


    Connect your Audio Baluns (Analog and Digital), Digital with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $3.00

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $5.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Audio Baluns (Analog and Digital), Analog IC460A $29.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $29.95

    Quantity Available: 31

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.093 lbs.
    HxWxD: 0.6 x 0.6 x 2.5 in.
