Industrial > Modems, CSU/DSUs, Muxes

click photo to enlarge

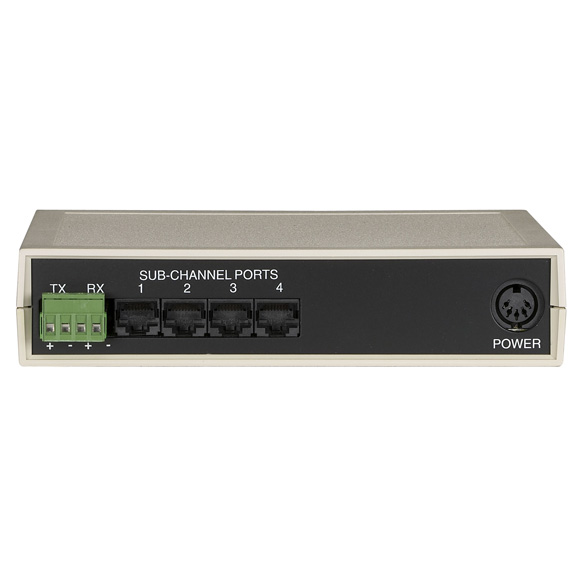

38887

Photo may show similar product

Other views

Asynchronous Local RS-232 Multiplexor, 4-Port

A mux that won't shortchange you for short distances.

38887

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Time-division multiplexor with an integral short-haul modem.
  • Economical alternative to stat muxes.
  • Four async ports.


    • Description

    Asynchronous Local RS-232 Multiplexor, 4-Port


    Quick Facts

  • Time-division multiplexor with an integral short-haul modem.
  • Economical alternative to stat muxes.
  • Four async ports.

    • Further Details

  • Screw terminal interface on composite port.
  • Support speeds up to 64 kbps per port.
  • Operate at distances up to 3000 feet (914.4 m) over two 24 AWG twisted-pair cables.
  • Plug-and-play installation—no option switches to set.


    • If you’re looking for an economical alternative to leased-line modems and statistical multiplexors, the BLACK BOX® Asynchronous Local RS-232 Multiplexor gives you speed and savings in your async environment!

    Here’s an economical alternative to more expensive stat muxes.

    Our Async Local RS-232 Mux is a time-division multiplexor that supports 4-channel speeds up to 64 kbps. All ports operate at maximum throughput levels with virtually no multiplexing delay. All models have an internal line driver for twisted pair. The units’ internal line drivers provide limited-distance communication over private networks with point-to-point twisted-pair cabling.

    Our Asynchronous Local RS-232 Multiplexor automatically adapts port speeds to the rates of your individual terminals—no clock source is required. Plus, synchronization between multiplexors is maintained automatically.

    NOTE: Must be used in pairs.

    This product works with:
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for Asynchronous Local RS-232 Multiplexor, 4-Port:

    Distance (Maximum) — 3000 ft. (914.4 m) on (2) twisted-pair cable (24 AWG)
    Multiplexing Technique — Time division
    Operation — Full-duplex
    Speed (Maximum) — 38887: 64 kbps per port;
    38889: 38.4 kbps per port;
    38891: 19.2 kbps per port
    Protocol — Async
    Interface — Channel: RS-232;
    Composite: 4-wire terminal block
    Connectors — Channel: 38887: (4) RJ-45; 38889: (8) RJ-45; 38891: (16) RJ-45;
    Composite: 4-screw terminal block
    Power — 115-VAC, 60-Hz external power supply
    Size — 38887, 38889: 1.7"H x 7"W x 5.3"D (4.3 x 17.8 x 13.5 cm);
    38891: 2.2"H x 7"W x 5.3"D (5.6 x 17.8 x 13.5 cm)
    NOTE: Must be used in pairs.

    This product works with:
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Asynchronous Local RS-232 Multiplexor, 4-Port:

    Product Data Sheets


    Connect your Asynchronous Local RS-232 Multiplexor, 4-Port with:

    Accessory: EYN556MS-0010

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    » more info

    Accessory: 523951

    Modular Adapters

    Modular Adapters, DB25 Male/RJ-45 for DTE

    » more info
