Datacom > Extenders & Line Drivers

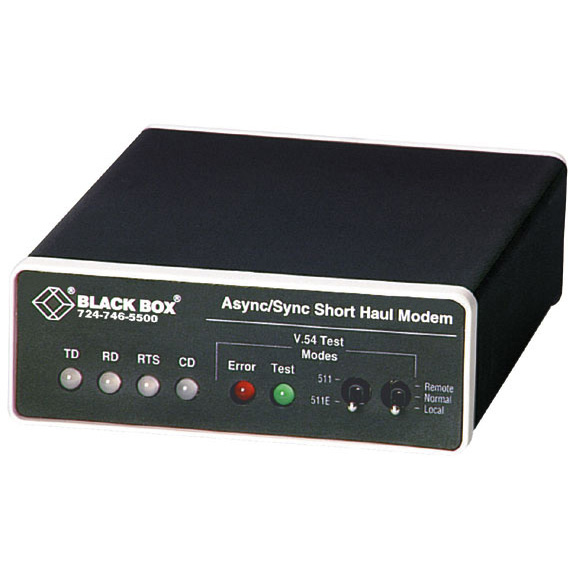

click photo to enlarge

ME475A

Photo may show similar product

Other views

Async/Sync Short-Haul Modem

Send async or sync RS-232 data up to 57.6 kbps or 7.6 miles.

ME475A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Distances from 5.3 to 11.4 miles (8.5 to 18.3 km) over 24 AWG (speed dependent).
  • Async or sync, point-to-point or multipoint operation.
  • Transformer isolation and surge protection.

  • Description

    Async/Sync Short-Haul Modem


    Quick Facts

  • Distances from 5.3 to 11.4 miles (8.5 to 18.3 km) over 24 AWG (speed dependent).
  • Async or sync, point-to-point or multipoint operation.
  • Transformer isolation and surge protection.

  • Further Details

  • Internal, external, or receive recover clocking in sync mode.
  • V.54 loopback and V.52 BERT pattern generator.

    The BLACK BOX® Async/Sync Short-Haul Modem sends your data 5.3 miles (8.5 km) at up to 57.6 kbps over 24 AWG wire or as far as 11.4 miles (18.3 km) at 1200 bps. Need more than just high performance? This short-haul modem comes with lots of extras to simplify your data transmission. Transformer isolation and surge protection help to guard your valuable data, and front-panel controls make it easy to configure diagnostics.

    Of course, the Async/Sync Short-Haul Modem has all the standard features you’re used to: async or sync operation, the option of running point-to-point or multipoint applications, and half-duplex operation over two wires or your choice of half- or full-duplex over four wires.

  • Technical Specifications for Async/Sync Short-Haul Modem:

    SPECIFICATIONS
    Clocking — Internal, External, Receive
    Distance (Maximum) — 11.4 mi. (18.3 km)
    Operation — 2-wire half-duplex or 4-wire half- or full-duplex
    Speed (Maximum) — 57.6 kbps
    CE Approval — Yes
    Interface — RS-232 (DCE)
    Connectors — (1) DB25 F, (1) RJ-45, (1) terminal block
    Power — 115-VAC, 60-Hz external transformer
    Size — 1.5“H x 4.2“W x 5“D (3.8 x 10.7 x 12.7 cm)
    NOTE: Compatible with Multi-Function Line Driver Cards (ME758C).

    This product works with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair (EYN851A)
    • RS-232 Cable, 25-Conductor (ECM25C)
    Questions? Contact Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Async/Sync Short-Haul Modem:

    Product Data Sheets


    Connect your Async/Sync Short-Haul Modem with:

    Accessory: ECM25T-0010-MM

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, Male/Male, 10-ft. (3.0-m)

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, M/M, 10-ft. (3.0-m)
