Datacom > Converters


click photo to enlarge

IC1474A-F

Photo may show similar product

Other views

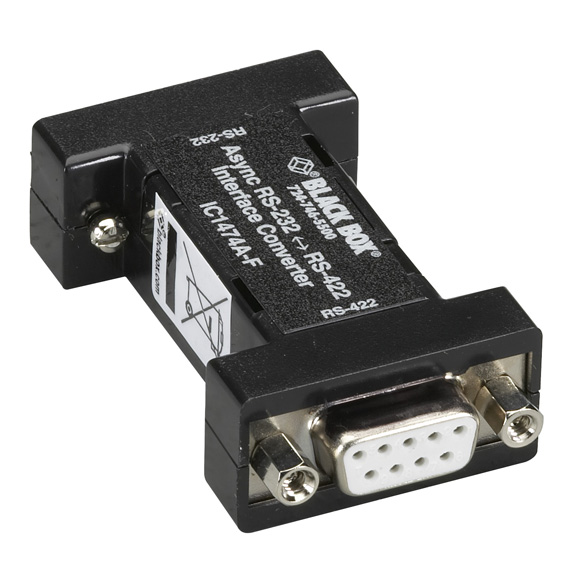

Async RS232 to RS-422 Interface Bidirectional Converter, DB9 Female to DB9 Female

Async conversion priced right for your budget.

IC1474A-F

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Converts unbalanced RS-232 signals to balanced RS-422 signals.
  • The RS-232 side has a DB9 port configured as DCE.
  • The RS-422 side has a DB9 connector.


  • Description

    Async RS232 to RS-422 Interface Bidirectional Converter, DB9 Female to DB9 Female


    Quick Facts

  • Converts unbalanced RS-232 signals to balanced RS-422 signals.
  • The RS-232 side has a DB9 port configured as DCE.
  • The RS-422 side has a DB9 connector.

  • Further Details

  • RS-422 pin-outs match an SMPTE video standard-compatible controlling device.
  • For DB9 equipment, if the peripheral operates on the RS-422 signal, use only one DB9 converter. But if the transmitting and receiving equipment only operates on RS-232, use two converters.
  • Provides 115.2-kbps speed for distances up to 4000 feet (1219.2 m).


  • Technical Specifications for Async RS232 to RS-422 Interface Bidirectional Converter, DB9 Female to DB9 Female:

    Operation 4-wire, full-duplex
    Transmitter Control Always on
    CE Approval Yes
    Power From the interface DTR and RTS


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Async RS232 to RS-422 Interface Bidirectional Converter, DB9 Female to DB9 Female:

    Manuals

    • Async RS232 to RS-422 Interface Bidirectional Converter, DB9 Female to DB9 Female, User Manual
      User Manual for the IC1474A-F
