Datacom > Converters

click photo to enlarge

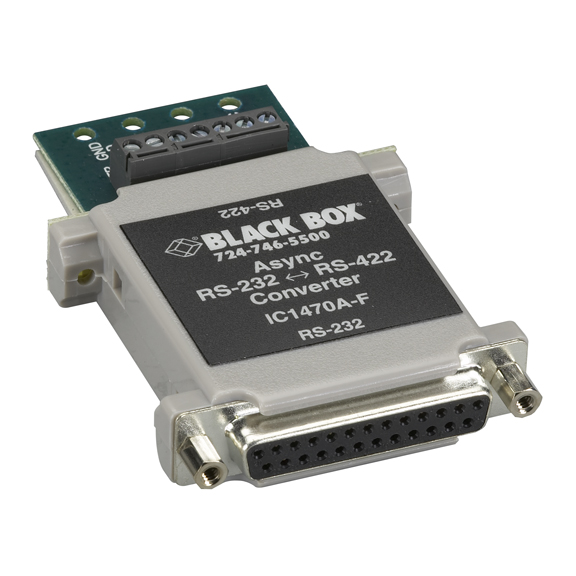

IC1470A-F

Photo may show similar product

Other views

Async RS232 to RS-422 Interface Bidirectional Converter, DB25 Female to Terminal Block

Async conversion priced right for your budget.

IC1470A-F

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Converts unbalanced RS-232 signals to balanced RS-422 signals.
  • The RS-232 side has a DB25 port configured as DCE.
  • The RS-422 side has a terminal block.

  • Description

    Async RS232 to RS-422 Interface Bidirectional Converter, DB25 Female to Terminal Block


    Quick Facts

  • Converts unbalanced RS-232 signals to balanced RS-422 signals.
  • The RS-232 side has a DB25 port configured as DCE.
  • The RS-422 side has a terminal block.

  • Further Details

  • Provides 115.2-kbps speed for distances up to 4000 feet (1219.2 m).
  • Power is derived from the transmit data line (Pin 2) and the handshake control lines (Pins 4, 5, 6, 8, and 20) when they are in either a positive or negative voltage state.
  • Use the converter without worrying about software control of the handshake lines.


  • Technical Specifications for Async RS232 to RS-422 Interface Bidirectional Converter, DB25 Female to Terminal Block:

    Operation — 4-wire, full-duplex
    Transmitter Control — Always on
    CE Approval — Yes
    Power — From the interface or optional power supply (PS1003)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Async RS232 to RS-422 Interface Bidirectional Converter, DB25 Female to Terminal Block:


    Connect your Async RS232 to RS-422 Interface Bidirectional Converter, DB25 Female to Terminal Block with:

    Accessory: IC1470A-M

    Async RS232 to RS-422 Interface Bidirectional Converter, DB25 Male to Terminal Block

    Async RS232 to RS-422 Interface Bidirectional Converter, DB25 Male to Terminal Block

    Accessory: IC1471A-M

    Async RS232 to RS-422 Interface Bidirectional Converter, DB25 Male to DB25 Female

    Async RS232 to RS-422 Interface Bidirectional Converter, DB25 Male to DB25 Female

    Accessory: IC1473A-F

    Async RS232 to RS-422 Interface Bidirectional Converter, DB9 Female to Terminal Block

    Async RS232 to RS-422 Interface Bidirectional Converter, DB9 Female to Terminal Block

    Accessory: IC1474A-F

    Async RS232 to RS-422 Interface Bidirectional Converter, DB9 Female to DB9 Female

    Async RS232 to RS-422 Interface Bidirectional Converter, DB9 Female to DB9 Female

    Accessory: PS1003

    120-VAC/12-VDC Wallmount Power Supply with Bare Leads

    120-VAC/12-VDC Wallmount Power Supply with Bare Leads for CL1090A, IC821A, IC1470A, IC1473A, and IC1156A

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $8.80

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $17.59

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.



    Add to Cart

    Price: $89.95

    Quantity Available: 7

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.375 lbs.
    HxWxD: 2.25 x 6.25 x 9.75 in.
